8inch Android MDT for Fleet Management with docking extension, NFC GPS WiFi 4G LTE for Retail with RJ45 interface, GPIO, RS232, RS422, RS485, CANBus,

Introduction

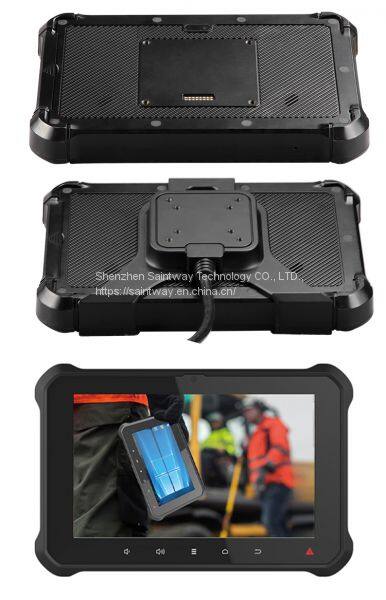

S8 is an IP65 grade 8-inch rugged Android tablet which is designed to withstand rough handling, like outdoor or in-vehicle harshest environment use. As for its CPU and OS, S8 is powered by Rockchip RK3288W ARM* Cortex™-A17 quad-core with Android 7.1 Nougat system or Linux (Ubuntul8.04). It also integrates optional modules like WiFi, 4G ITE/3G cellular; Bluetooth, Gigabit Ethernet for data transmission and NFC for identification. Meanwhile for in-vehicle use, it has functional interfaces such as RS232, RS422, USB host, etc, which is suitable for many applications such as fleet management, public transit, mining, precision farming, logistics and industrial control etc.

Features

• Rugged enclosure design with IP65 rating

• RK3288W ARM® Cortex™-A17 Quad-core processor

• Quad-core Mali-T764 GPU, up to 600MHz

• 8-inch 1024x600 TFT-LCD panel

• Multi-touch capacitive touchscreen control

• Android 7.1 Nougat/Linux (Ubuntul8.04) operating system

• Built-in WiFi, Bluetooth 4.0 wireless modules

• Built-in 4G/3G cellular modules(optional)

• Support Gigabit Ethernet network connection

• Built-in GPS/GLONASS positioning module

• Built-in NFC module

• Built-in G-sensor for display rotation and Gyroscope

• Built-in 2.0MP front camera and 8.0MP rear camera

• Built-in speaker; internal microphone

• SupportTF external storage upto 64GB

• Built-in 3.7V 3600mAH Poly-lion battery

• Docking Station with DC in and RS232, RS422, USB ports (RJ45 optional)

• Flexible mounting: 75mm*75mm VESA and 50mm*50mm in-vehicle mount bracket
