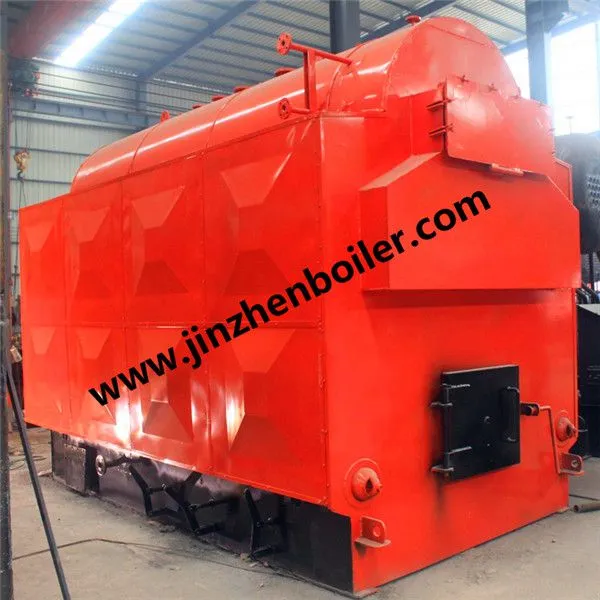

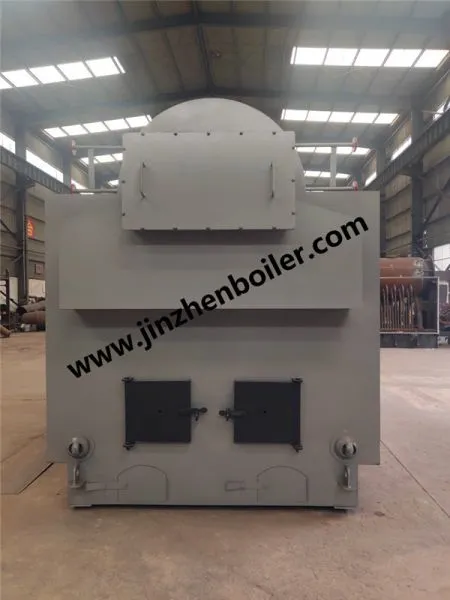

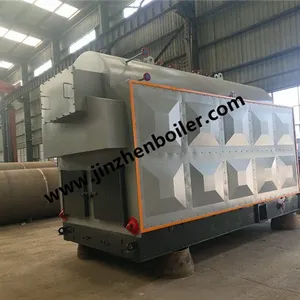

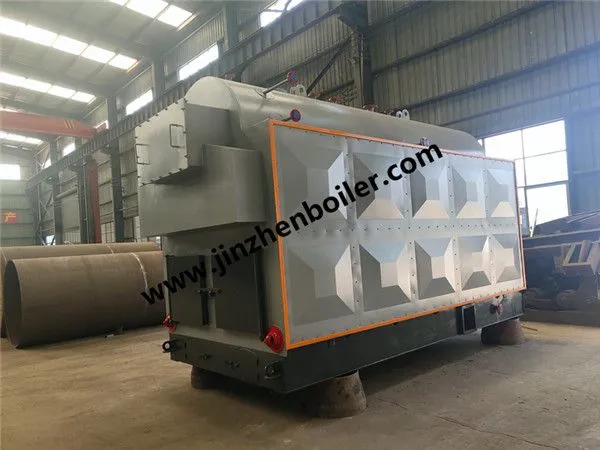

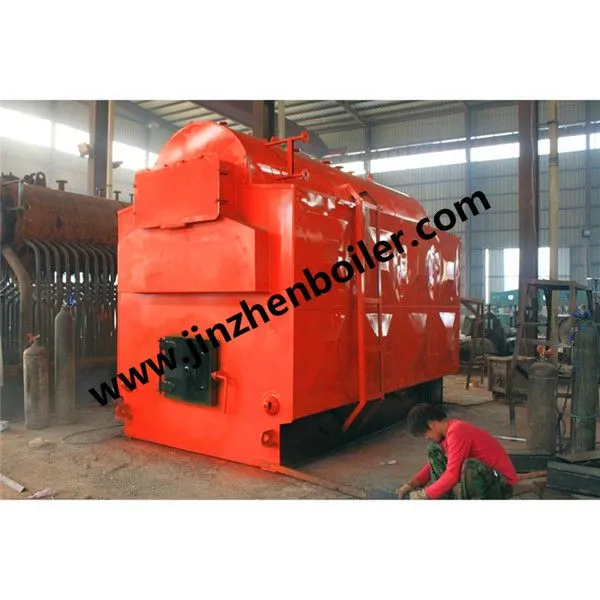

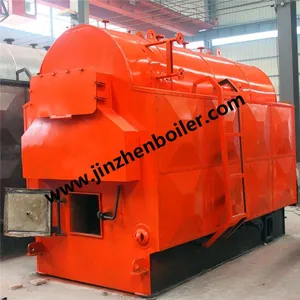

3 ton 3000kg biomass Palm fiber kernel shell charcoal fired Steam Boiler for palm oil mill plant
Boiler Product Description
1. Steam Boiler capacity:1-4ton/h
2. Stem pressure: 0.7MPa (7bar) ,1.0MPa(10bar),1.25MPa(13bar), 1.6MPa(16bar)
3. Steam temperature output: 170℃, 184℃, 193℃, 204℃
4. Available fuel: biomass, wood pellet,peanut, paddy, rice husk,sawdust solid fuel.
5. Boiler Structure: Horizontal three pass fire tube industrial used steam boiler
6. Application:used for all kinds of industrial production and processing.
7. Standard of Design, Manufacturing and Inspection: GB150
DZH series manual biomass fired steam boiler, use movable fire grate, equip with blower, draft fan, economizer, deduster, automatic water treatment, water pump, steam header, control cabinet, valves and meters etc auxiliary machines. Due to the less of auxiliaries of this series boiler, so low fault of machines, reduce maintenance cost, easy operation, save time and materials, is an economical boiler type. Suitable for various types of coal fuels, environmental protection, price position moderate, is the first choice of small and medium enterprises who use steam for processing line.
Biomass Steam Boiler Main Features
1. Moving grate made of cast iron, large furnace design, manual stoker, good applicability of fuel, coal, wood, wood waste, biomass, etc. can be used as fuel.
2. Few moving parts, less investment, low operating costs, low maintenance costs.
3. Forced ventilation, pressure boost fast to make sure enough output.
4. Compact structure, easy to install, reducing the cost of the boiler room and installation cost.
5. Single drum design big water volume, ability to adapt to changes in load.
6. Sufficient combustion, large heating surface, adopt efficient threaded pipe, thermal efficiency higher than the national standard.
Technical specification
1.Steam Boiler type is horizontal quick boiler, working medium natural circulation.
The boiler heat exchange system is composed of boiler drum, left and right collecting box, and water cooling wall.
2. Advanced design performance:
The main heating surface tube of the boiler is made of 20# low and medium pressure boiler with seamless steel tube, boiler tube made of special steel plate.The left and right collecting boxes are made of seamless steel tubes.
3. The boiler arch is made of refractory concrete.The back arch is low and long, so the combustion is good. The two wing flue and side wall bricks are made of refractory sintered bricks.The front wall and back wall of boiler are made of general firebrick.
biomass Palm fiber kernel shell charcoal fired Steam Boiler is widely used in hospitals, schools, textile mills, garment factories, large supermarket, garment factories, dyeing factory, hotel, dining room, restaurant, food factory, beverage factory, soy products, meat products factory, cannery, brewery, pharmaceutical factory, packaging plant, building materials factory, paint factory, swimming pool and other places of the enterprises and institutions.
For wood steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
