2 Ton Industrial Biomass Wood Coal Fired Steam Boiler For Chemical Plant
Boiler Product Description

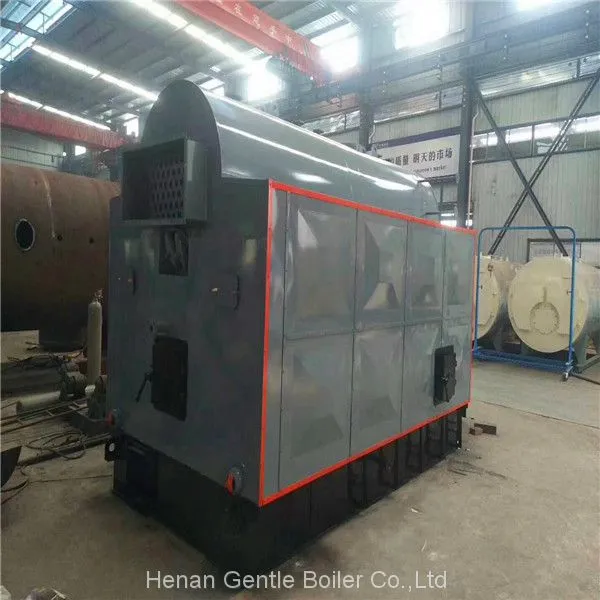

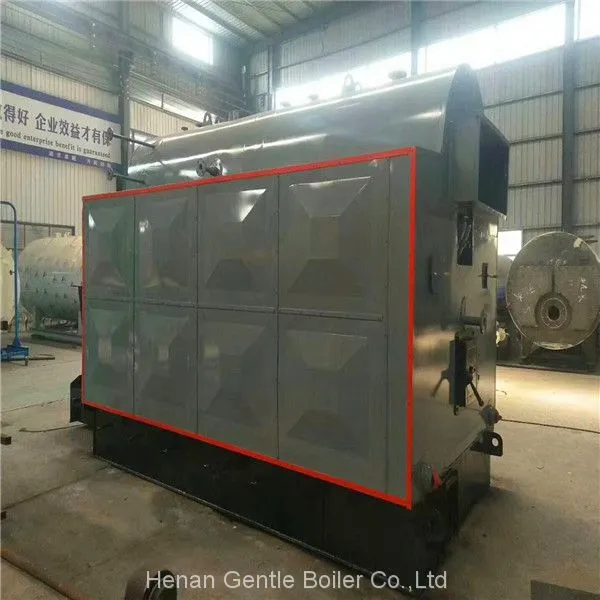

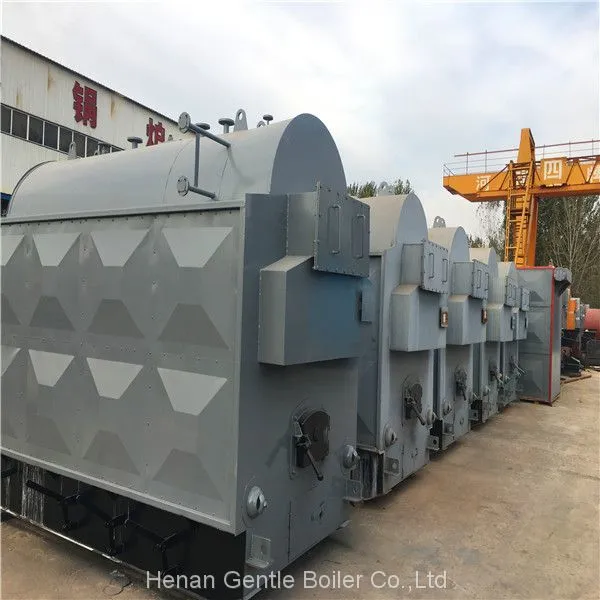

new DZH series steam boiler is the horizontal water-fire tube boiler, and its combustion equipment is the chain grate.The water cooling wall on the left and right sides of the furnace is the radiant heating surface, the two wings of the furnace are the convection heating surface, the screw pipe convection heating surface is arranged inside the pot barrel, the front and back arches are made of heat-resistant concrete overall pouring and ramming new technology, the outside of the main boiler is a three-dimensional shell.
Technical specification
1.Steam Boiler type is horizontal quick boiler, working medium natural circulation.
The boiler heat exchange system is composed of boiler drum, left and right collecting box, and water cooling wall.
2. Advanced design performance:
The main heating surface tube of the boiler is made of 20# low and medium pressure boiler with seamless steel tube, boiler tube made of special steel plate.The left and right collecting boxes are made of seamless steel tubes.
3. The boiler arch is made of refractory concrete.The back arch is low and long, so the combustion is good. The two wing flue and side wall bricks are made of refractory sintered bricks.The front wall and back wall of boiler are made of general firebrick.
For wood steam boiler, we mainly manufacture and supply 1ton/h 2ton /h and 4ton/h with 7bar 10bar 13bar and boiler pressure. our boilers have advantages of high thermal efficiency, energy saving, safety reliable and fully automatic control, and sell well at home and abroad.for foreign market, like Sri Lanka, Bangladesh, Philippines, Vietnam, Laos, Cambodia, India, and other countries.
