Sliding Gate Opener ,sliding Gate Operator ,sliding Door Opener

Included: SL motor *1pcs

                Control panel *1pcs

                Remote controller *2pcs

                Bracket list

                User Manual

                Rack-track *4M

Model: SL370/ SL550/ SL750

Power supply: AC110V/ 220V  + - 10%

Motor power: 370W/ 550W/ 750W

Motor rotational speed: 1400rpm

Output rotational speed: 46.6r/min

Max. Gate weight: 500KG / 1000KG / 1500KG

Gate speed: 12m/min

Temperature: - 20℃ ~ 55℃

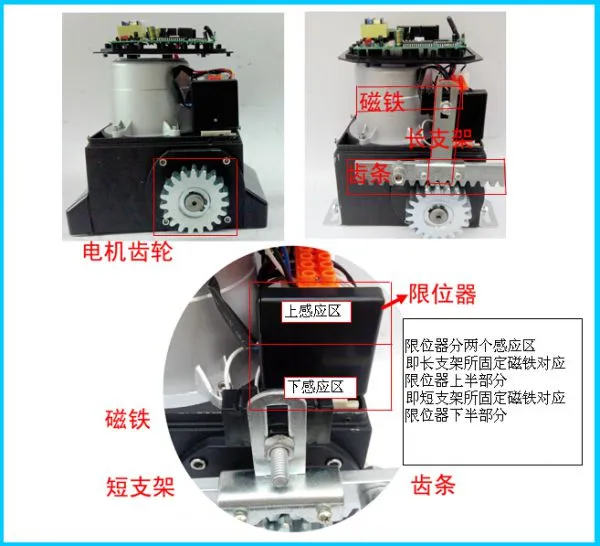

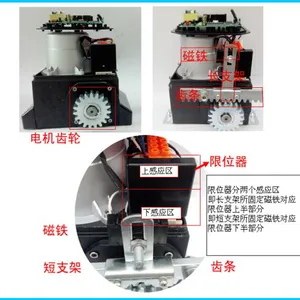

Limit switch: Magnetic limit switch / Spring limit switch

Protecting class: IP44

Control panel features:

1. Single button can finish all the control command(such as close,open,stop.)

2. Can adjust the resistance of motor

3. Can program the time of auto close

4. Can set auto close when restored power after power off

5. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc

6. Can much 30 remote controls at most

Sliding gate motor specification:

1. The integrated structure of mechanical parts, electronic parts, and the built-in control panel, do not need any external controller;

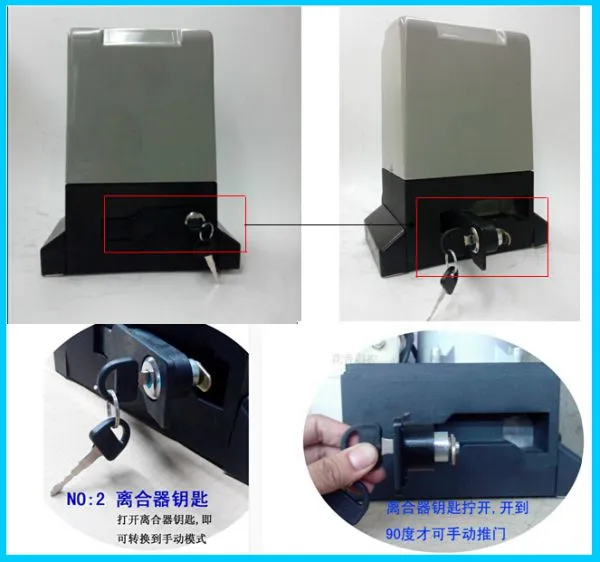

2.When the power failure, the keys can release the clutch and push the gate open/close.

3.Gate automatically stop and re-open when encounted an obstacle

4. Automatic closing time can be adjusted from 3-120 seconds

5.Good design, heavy use of copper motor (many vendors use aluminum motor), copper worm gear,

6.Ac motor wiring and convenient.

1. Main Features:

1.)  Totally integrated electrical mechanical system (excludes racks)

2.)  Control board interface for optional impact-proof infrared photocells

3.)  Alarm lamp interface

4.)  Automatic delayed closing

5.)  Adjustable resistance sensitivity

6.)  Auto gate stop and re-open when an obstacle is encountered

7.)  Wireless remote control or wired remote control are optional

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for quantity goods; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4.Delivery Time: 3-7 days for samples; 5-25 days for quantity goods.

Payment terms

1.Payment: T/T, 30% deposit before production,70% balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities
