Help CenterSliding Gate Opener
US$ 1 - 150
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
ETDOOR
Model Number:
ET-S500/S800
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sliding Gate OperatorUS$ 1 - 150MOQ: 100 Sets -
Sliding Gate OperatorUS$ 1 - 150MOQ: 100 Sets
-
Automatic Sliding Door Opener,automatic Sliding Door Opener/operator, Sliding Door Operator /garage Gate,automatic Sliding DoorUS$ 1 - 150MOQ: 100 Sets
-
Sliding Gate Opener,sliding Gate Operator,sliding Gate Motor,sliding Door Operator,sliding Door Opener,sliding Door MotorUS$ 1 - 150MOQ: 100 Sets
-
Sliding Gate Opener,sliding Door Operator,sliding Gate Motor,sliding Door Operator,sliding Door Opener,sliding Door MotorUS$ 1 - 150MOQ: 100 Sets
Place of Origin
Jiangsu, China
Brand Name
ETDOOR
Model Number
ET-S500/S800

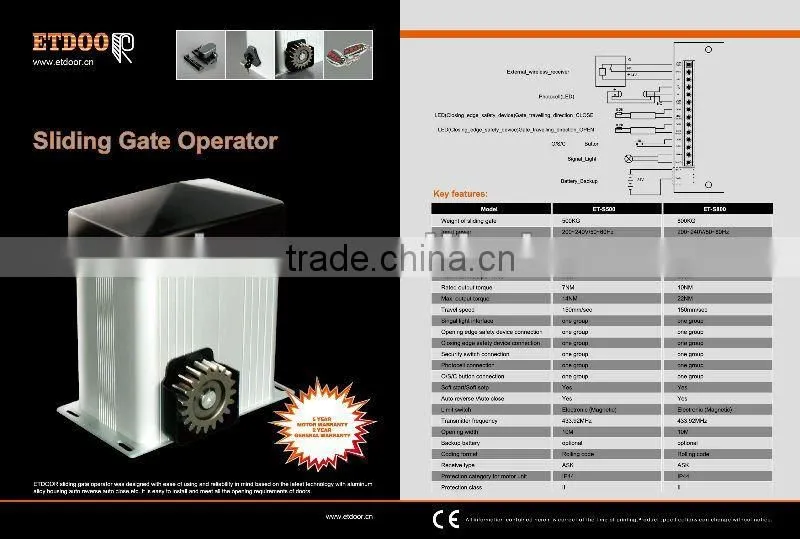

Specifications

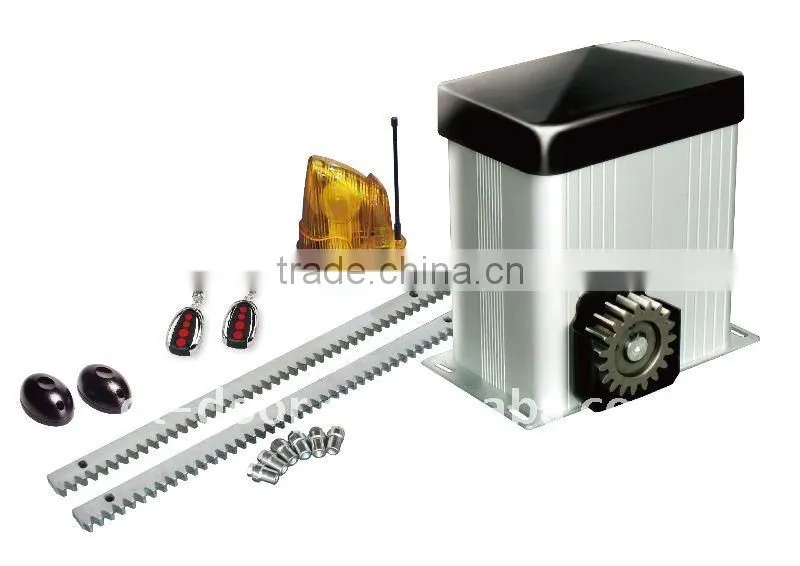

ETDOOR sliding gate operator Max. push and pull force:ET-S500 500N,ET-S800 800N
Aluminium alloy housing,electronic limit.
| Technical features | ||
| Model | ET500S | ET800S |
| Weight of sliding gate | 500KG | 800KG |
| Input power | 200~240V/50~60Hz | 200~240V/50~60Hz |
| Motor | 24V DC | 24V DC |
| Rated power | 150W | 180W |
| Rated push and pull force | 210N | 260N |
| Max. push and pull force | 500N | 800N |
| Rated output torque | 7NM | 10NM |
| Max. output torque | 14NM | 22NM |
| Travel speed | 150mm/sec | 150mm/sec |
| Singal light interface | one group | one group |
| Opening edge safety device connection | one group | one group |
| Closing edge safety devic econnection | one group | one group |
| Security switch connection | one group | one group |
| Infrared beam connection | one group | one group |
| O-S-C button connection | one group | one group |
| Soft start/soft sotp | Yes | Yes |
| Auto reverse | Yes | Yes |
| Transmitter frequency | 433.92MHz | 433.92MHz |
| Opening width | 10M | 10M |
| Backup battery | optional | optional |
| Coding format | Rolling code | Rolling code |
| Receive type | ASK | ASK |
| Protection category for motor unit | IP44 | IP44 |
| Protection class | II | II |
