Cold Abrasion PV Solar Cable Halogen Free 16MM2 25MM2 Long Lifespan
US$ 1 - 50
/ Meter
1000 Meters(Min. Order)
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification
-
Flexible Flame Retardant Electric PV Wire 1.5MM 2.5MM Environmental Protection
-
4 Sq mm DC Solar Panel Wire High Heat Resistant Cable 2 Years Warranty
-
2.5mm Solar PV Wire Photovoltaic Cable Outdoor / Indoor Climate Resistance
-
2 Core Flat / Round Solar Cable Wire Solar Panel Cable Pantone Insulation Color
-
4mm 6mm Single Core DC Solar PV Cable Photovoltaic Wire Eco Friendly
Product Details
| Brand Name | HNTDDL | Place of Origin | China | |
| Model Number | PV 4mm2 6mm2 10mm2 16mm2 | Application | Solar power generation device connector | |
Product Description
Product Description
Application
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of
different climate outdoor installation, and can adapt to the dry and wet indoor working environment

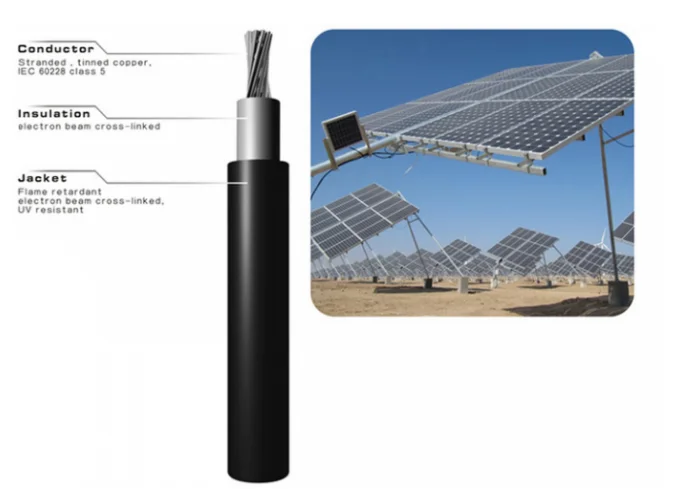

Construction
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of
different climate outdoor installation, and can adapt to the dry and wet indoor working environment
Construction
Core Conductor | Tinned annealed copper (stranded core) |
Popular sizes | 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2 |
Cable conductor | Stranded tinned annealed copper |
Insulation | Electron-beam cross-linked Polyolefin(XLPO) |
Jacket | XLPO/ PE (black, red) |
Other specs | a) Temperature rating: -40C up to +120C |
b) Fire performance: IEC 60332-1, UL1581 VW-1 | |
c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2 | |
d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant | |
e) Voltage suitable: 600-1000V |
Advantage:
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to
strip, extremely mechanical robust, long lifespan etc
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to
strip, extremely mechanical robust, long lifespan etc
Product Standards
Technical Parameter
Section Area (mm2) | External Diameter (mm) | Current Carring Capacity (A) | External Diameter (mm) | Current Carring Capacity (A) |
4 | 6.1 | 55 | 6.1x12.5 | 55 |
6 | 7.2 | 70 | 7.2x14.5 | 70 |
10 | 9.0 | 98 | 9.0x18.5 | 98 |
16 | 10.2 | 132 |
Packing and shipping
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and
non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.


Company Profile


About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.


workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.


R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit


Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging


Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
