Home > Products > Control Cable > Multi-core 0.6/1kV Copper Conductor PVC Insulated Copper Tape Screen PVC Sheathed NYSY Control Cable
Multi-core 0.6/1kV Copper Conductor PVC Insulated Copper Tape Screen PVC Sheathed NYSY Control Cable
US$ 1 - 50
/ Meter
1000 Meters(Min. Order)
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
Multi-core 0.6/1kV Copper Conductor PVC Insulated Steel Wire Armoured PVC Sheathed NYBY Control Cable
-
Multi-core 0.6/1kV Copper Conductor PVC Insulated Steel Tape Armoured PVC Sheathed NYBY Control Cable
-
Multi-core 0.6/1kV Copper Conductor PVC Insulated PVC Sheathed NYY Control Cable
-
Industrial Solar Panel 600/1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation
-
Solar PV Twin Core Cable Tinned Copper Wire 0.6/1KV For Photovoltaic Power Station
-
Cold Abrasion PV Solar Cable Halogen Free 16MM2 25MM2 Long Lifespan
Product Details
| Brand Name | HNTDDL | Place of Origin | China | |
| Model Number | NYSY | |||
| Insulation Material | PVC | Jacket | PVC | |
| Conductor Material | Copper |
Product Description
Products Application
The control cable is used as the connecting line between all kinds of electrical appliances, meters and automatic devices. It is mainly used for AC rated voltage 600/1000V and under control, monitoring circuit and protection circuit.

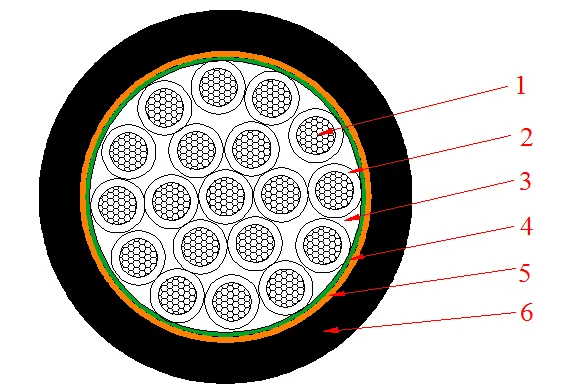

Product Construction
1)Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
2)Insulation: Polyvinyl chloride PVC
3)Filler: Non-hygroscopic material
4)Binder tape: Non-hygroscopic material
5)Metallic screen: Copper tape screen
6)Oversheath: Polyvinyl chloride PVC
Product Standards
SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1:Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
No. of cores and nominal cross section | Thickness of Insulation | Thickness of Copper tape | Thickness of | Approx. | Approx. weight | Max. DC resistance of conductor（20℃） | ||||||
Sheath | overall Diameter | |||||||||||
(mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | ||||||
KVVP2 (NYSY) - 0.6/1kV | ||||||||||||
2X1.5 | 0.8 | 0.05-0.10 | 1.8 | 9.8 | 141 | 12.1 | ||||||
3X1.5 | 0.8 | 0.05-0.10 | 1.8 | 10.2 | 166 | 12.1 | ||||||
4X1.5 | 0.8 | 0.05-0.10 | 1.8 | 11 | 198 | 12.1 | ||||||
5X1.5 | 0.8 | 0.05-0.10 | 1.8 | 11.8 | 231 | 12.1 | ||||||
7X1.5 | 0.8 | 0.05-0.10 | 1.8 | 12.7 | 282 | 12.1 | ||||||
10X1.5 | 0.8 | 0.05-0.10 | 1.8 | 15.7 | 388 | 12.1 | ||||||
12X1.5 | 0.8 | 0.05-0.10 | 1.8 | 16.2 | 435 | 12.1 | ||||||
14X1.5 | 0.8 | 0.05-0.10 | 1.8 | 17 | 489 | 12.1 | ||||||
16X1.5 | 0.8 | 0.05-0.10 | 1.8 | 17.8 | 544 | 12.1 | ||||||
19X1.5 | 0.8 | 0.05-0.10 | 1.8 | 18.7 | 616 | 12.1 | ||||||
24X1.5 | 0.8 | 0.05-0.10 | 1.8 | 21.7 | 764 | 12.1 | ||||||
27X1.5 | 0.8 | 0.05-0.10 | 1.8 | 22.2 | 833 | 12.1 | ||||||
30X1.5 | 0.8 | 0.05-0.10 | 1.8 | 22.9 | 908 | 12.1 | ||||||
37X1.5 | 0.8 | 0.05-0.10 | 1.8 | 24.7 | 1078 | 12.1 | ||||||
44X1.5 | 0.8 | 0.05-0.10 | 1.9 | 27.8 | 1281 | 12.1 | ||||||
48X1.5 | 0.8 | 0.05-0.10 | 1.9 | 31.6 | 1484 | 12.1 | ||||||
52X1.5 | 0.8 | 0.05-0.10 | 1.9 | 29.1 | 1463 | 12.1 | ||||||
61X1.5 | 0.8 | 0.05-0.10 | 2 | 31 | 1692 | 12.1 | ||||||
2X2.5 | 0.8 | 0.05-0.10 | 1.8 | 10.6 | 174 | 7.41 | ||||||
3X2.5 | 0.8 | 0.05-0.10 | 1.8 | 11.1 | 210 | 7.41 | ||||||
4X2.5 | 0.8 | 0.05-0.10 | 1.8 | 12 | 254 | 7.41 | ||||||
5X2.5 | 0.8 | 0.05-0.10 | 1.8 | 12.9 | 300 | 7.41 | ||||||
7X2.5 | 0.8 | 0.05-0.10 | 1.8 | 13.9 | 372 | 7.41 | ||||||
10X2.5 | 0.8 | 0.05-0.10 | 1.8 | 17.3 | 515 | 7.41 | ||||||
12X2.5 | 0.8 | 0.05-0.10 | 1.8 | 17.8 | 584 | 7.41 | ||||||
14X2.5 | 0.8 | 0.05-0.10 | 1.8 | 18.7 | 659 | 7.41 | ||||||
16X2.5 | 0.8 | 0.05-0.10 | 1.8 | 19.7 | 737 | 7.41 | ||||||
19X2.5 | 0.8 | 0.05-0.10 | 1.8 | 20.7 | 842 | 7.41 | ||||||
24X2.5 | 0.8 | 0.05-0.10 | 1.8 | 24.1 | 1048 | 7.41 | ||||||
27X2.5 | 0.8 | 0.05-0.10 | 1.8 | 24.6 | 1149 | 7.41 | ||||||
30X2.5 | 0.8 | 0.05-0.10 | 1.8 | 25.5 | 1257 | 7.41 | ||||||
37X2.5 | 0.8 | 0.05-0.10 | 1.9 | 27.7 | 1515 | 7.41 | ||||||
44X2.5 | 0.8 | 0.05-0.10 | 2 | 31.2 | 1801 | 7.41 | ||||||
48X2.5 | 0.8 | 0.05-0.10 | 2 | 31.8 | 1929 | 7.41 | ||||||
52X2.5 | 0.8 | 0.05-0.10 | 2 | 32.6 | 2068 | 7.41 | ||||||
61X2.5 | 0.8 | 0.05-0.10 | 2.1 | 34.8 | 2396 | 7.41 | ||||||
2X4 | 1 | 0.05-0.10 | 1.8 | 12.3 | 239 | 4.61 | ||||||
3X4 | 1 | 0.05-0.10 | 1.8 | 13 | 295 | 4.61 | ||||||
4X4 | 1 | 0.05-0.10 | 1.8 | 14.1 | 361 | 4.61 | ||||||
5X4 | 1 | 0.05-0.10 | 1.8 | 15.3 | 430 | 4.61 | ||||||
7X4 | 1 | 0.05-0.10 | 1.8 | 16.5 | 541 | 4.61 | ||||||
10X4 | 1 | 0.05-0.10 | 1.8 | 20.8 | 756 | 4.61 | ||||||
12X4 | 1 | 0.05-0.10 | 1.8 | 21.5 | 863 | 4.61 | ||||||
14X4 | 1 | 0.05-0.10 | 1.8 | 22.6 | 980 | 4.61 | ||||||
16X4 | 1 | 0.05-0.10 | 1.8 | 23.8 | 1100 | 4.61 | ||||||
19X4 | 1 | 0.05-0.10 | 1.8 | 25 | 1262 | 4.61 | ||||||
24X4 | 1 | 0.05-0.10 | 1.9 | 29.5 | 1590 | 4.61 | ||||||
27X4 | 1 | 0.05-0.10 | 2 | 30.4 | 1763 | 4.61 | ||||||
30X4 | 1 | 0.05-0.10 | 2 | 31.5 | 1932 | 4.61 | ||||||
37X4 | 1 | 0.05-0.10 | 2.1 | 34.1 | 2334 | 4.61 | ||||||
44X4 | 1 | 0.05-0.10 | 2.2 | 38.6 | 2774 | 4.61 | ||||||
48X4 | 1 | 0.05-0.10 | 2.3 | 39.5 | 2994 | 4.61 | ||||||
52X4 | 1 | 0.05-0.10 | 2.3 | 40.5 | 3212 | 4.61 | ||||||
61X4 | 1 | 0.05-0.10 | 2.4 | 43.2 | 3725 | 4.61 | ||||||
Company Profile
About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.
workshop
The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.
R & D Building
The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
