Medium Voltage Single Core Copper Conductor XLPE Insulated Copper Wire Screened PVC Sheathed N2XSY Power Cable

FOB Price

US$ 1 - 50 / Meter

1000 Meters(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HNTDDL	Place of Origin	China
Model Number	N2XSY	Type	Medium Voltage
Insulation Material	XLPE
Jacket	PVC	Conductor Material	Copper

Product Description

Products Application

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

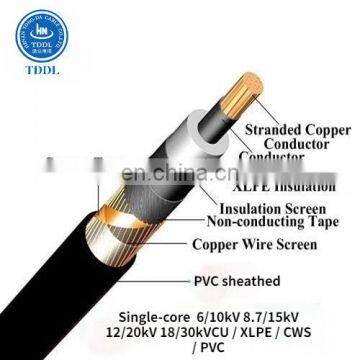

Product Construction

1)Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors 2)Conductor screen: Non-metallic，semi-conducting compound 3)Insulation: Cross-linked polyethylene XLPE 4)Insulation screen: Non-metallic，semi-conducting compound 5)Metallic screen: Copper wire and copper tape 6)Oversheath: Polyvinyl chloride PVC

Product Standards

SPECIFICATIONS: IEC 60228 Conductors of insulate cables IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)

No. of cores and nominal cross section	Thickness of Insulation	Cross section of Screen	Thickness of	Approx.	Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity
No. of cores and nominal cross section	Thickness of Insulation	Cross section of Screen			Approx. weight	Max. DC resistance of conductor（20℃）	Current carrying capacity		Sheath	overall Diameter
(mm2)	(mm)	(mm2)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air	In Ground
(mm2)	(mm)	(mm2)	(mm)	(mm)	(kg/km)	(Ω/km)					(A)	(A)
YJSV (N2XSY) - 6/10kV
1x25/16	3.4	16	1.8	21.8	720	0.727	170	155
1x35/16	3.4	16	1.8	22.9	829	0.524	197	187
1x50/16	3.4	16	1.8	24	969	0.387	236	220
1x70/16	3.4	16	1.8	25.7	1193	0.268	294	268
1x95/16	3.4	16	1.8	27.2	1462	0.193	358	320
1x120/16	3.4	16	1.8	28.7	1710	0.153	413	363
1x150/25	3.4	25	1.8	30.2	2060	0.124	468	405
1x185/25	3.4	25	1.9	32	2450	0.0991	535	456
1x240/25	3.4	25	2	34.7	3000	0.0754	631	526
1x300/25	3.4	25	2.1	36.9	3600	0.0601	722	591
1x400/35	3.4	35	2.2	40.2	4530	0.047	827	662
1x500/35	3.4	35	2.3	44.1	5580	0.0366	949	744
YJSV (N2XSY) - 8.7/15kV
1x25/16	4.5	16	1.8	23.8	800	0.727	160	180
1x35/16	4.5	16	1.8	24.8	913	0.524	197	188
1x50/16	4.5	16	1.8	26.1	1057	0.387	236	221
1x70/16	4.5	16	1.8	27.8	1288	0.268	294	271
1x95/16	4.5	16	1.8	29.4	1562	0.193	358	232
1x120/16	4.5	16	1.9	31	1831	0.153	413	366
1x150/25	4.5	25	1.9	32.5	2192	0.124	468	407
1x185/25	4.5	25	2	34.4	2585	0.0991	535	460
1x240/25	4.5	25	2.1	36.8	3162	0.0754	631	531
1x300/25	4.5	25	2.1	39	3752	0.0601	722	597
1x400/35	4.5	35	2.3	42.4	4703	0.047	827	670
1x500/35	4.5	35	2.3	45.3	5761	0.0366	949	745
YJSV (N2XSY) - 12/20kV
1x35/16	5.5	16	1.8	26.86	989	0.524	225	150
1x50/16	5.5	16	1.8	28.16	1136	0.387	270	180
1x70/16	5.5	16	1.9	30.06	1385	0.268	330	220
1x95/16	5.5	16	1.9	31.66	1664	0.193	400	265
1x120/16	5.5	16	2	33.26	1939	0.153	460	310
1x150/25	5.5	25	2	34.76	2304	0.124	520	350
1x185/25	5.5	25	2.1	36.66	2703	0.0991	585	400
1x240/25	5.5	25	2.1	38.86	3270	0.0754	680	465
1x300/25	5.5	25	2.2	41.26	3884	0.0601	775	535
1x400/35	5.5	35	2.3	44.46	4826	0.047	885	615
1x500/35	5.5	35	2.4	47.56	5913	0.0366	1000	725
YJSV (N2XSY) - 18/30kV
1x35/16	8	16	2	32.2	1255	0.524	238	172
1x50/16	8	16	2	33.4	1426	0.387	286	203
1x70/16	8	16	2.1	35.3	1691	0.268	356	246
1x95/16	8	16	2.1	37.1	2003	0.193	434	293
1x120/16	8	16	2.2	38.6	2286	0.153	500	332
1x150/25	8	25	2.2	40.6	2683	0.124	559	366
1x185/25	8	25	2.3	42.3	3096	0.0991	637	410
1x240/25	8	25	2.3	44.8	3703	0.0754	745	470
1x300/25	8	25	2.4	47.2	4334	0.0601	846	524
1x400/35	8	35	2.5	50.4	5329	0.047	938	572
1x500/35	8	35	2.6	53.3	6447	0.0366	1065	725

Company Profile

About Us

Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.

The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.

The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.

As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.

workshop

The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.

R & D Building

The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.

Customer visit

The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.

Product packaging

Explanation

The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.

FAQ

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
