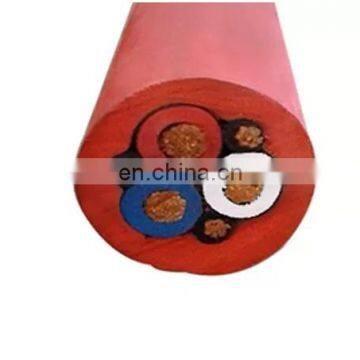

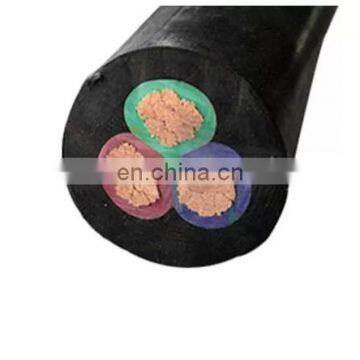

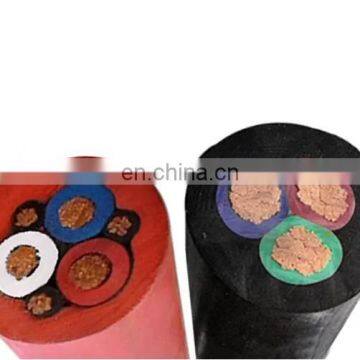

Flexible Conductor Rubber Sheathed Cable Claass 5 60245IEC66 65 Degree
US$ 1 - 50
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
HNTDDL
Place of Origin:
China
Model Number:
H07RN-F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4/0 AWG Rubber Insulated Flexible Copper Welding CableUS$ 0.69 - 30.96MOQ: 1000 Meters -
Coal Winning Machine Soft Rubber Sheathed Cable 0.38kv / 0.66kvUS$ 1 - 50MOQ: 1000 Meters
-
Flexible Rubber Cable 1.9 / 3.3 KV Low Halogen Low Smoke Rubber SheathUS$ 1 - 50MOQ: 1000 Meters
-
1.9/3.3 KV Monitoring Core Rubber Sheathed Cable Metallic Screened With EPR InsulationUS$ 1 - 50MOQ: 1000 Meters
-
Rubber Cable IEC 60245-81(YH) IEC 60245-82(YHF)US$ 1 - 15MOQ: 1 Meter
Brand Name
HNTDDL
Place of Origin
China
Model Number
H07RN-F
Application
medical
Jacket
Rubber
Conductor Material
Copper
Insulation Material
Rubber
Product Description
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or
alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color:
Black
Rubber sheathed flexible cable wire:
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1. Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2. The long-term working temperature of conductor should be no longer than 65°C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the
occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or
alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color:
Black
Rubber sheathed flexible cable wire:
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1. Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2. The long-term working temperature of conductor should be no longer than 65°C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the
occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Product Standards
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Cross-Sectional Area mm2 | Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km | Approx Weight (kg/km) | ||||||
min | max | Copper | Tinned-Copper | YZ | YZW | |||||
2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 | |||
2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 | |||
2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 | |||
2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 | |||
2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 | |||
2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 | |||
3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 | |||
3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 | |||
3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 | |||
3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 | |||
3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 | |||
3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 | |||
4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 | |||
4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 | |||
4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 | |||
4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 | |||
4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 | |||
4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 | |||
