ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209

Henan Tong-Da Cable Co., Ltd.
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 thumbnail-1
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 thumbnail-2
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 thumbnail-3
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 thumbnail-4
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 thumbnail-5
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 photo-1
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 photo-2
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 photo-3
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 photo-4
ABC Cable Bundle Assembled Cores for Overhead Systems of Rated Voltage 0.6/1kV NFC 33-209 photo-5
US$ 1 - 50 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
HNTDDL
Place of Origin:
China
Model Number:
ABC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HNTDDL
Place of Origin China
Model Number ABC
Type Low Voltage
Insulation Material XLPE
Conductor Material Aluminum
Products Application
The usage of Aerial Bundled Cables in low voltage networks provides important saving in installation costs, while it ensures the same reliability and safety, replaces bare conductors in overhead distribution lines and increased very rapidly all around the world. Compared to the copper conductors aerial bundled cables are lighter and more economical. They can be used safely in wood, concrete and iron poles. The poles height's can be shorter instead of using 5 different sized lines, by ABC systems we can use only one line which save on time, effort and material. Lower inductive reactance of the aerial bundled cables reduces voltage drop and power losses.

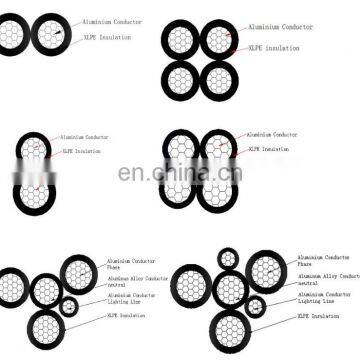

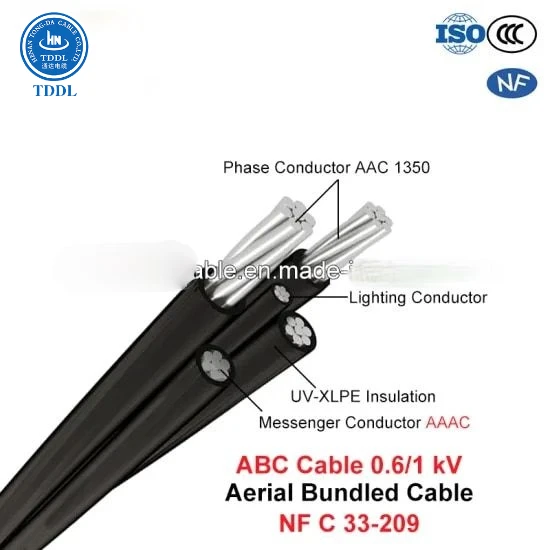

Product Construction
PHASE CONDUCTORS :
Phase conductors made of aluminium wires are circular stranded, rounded and compacted with smooth circular surface.Our products are avaible 16 mm2 as solid, 25 to 70 mm2 7 wired; from 95 mm2 to onwards as 19 wired confirming TS 11654. MESSENGER (NEUTRAL) CONDUCTOR : Bare, round, stranded and compacted aluminium alloy (294 N/mm2). INSULATION : Phase conductors of Aerial Bundled Cables are insulated by black coloured PE or XLPE which are weather resistant. CORE IDENTIFICATION : Phase conductors two, three and four longitudinal ridges, street lighting conductor without ridges.
Product Standards
ABC AAC/XLPE
Nominal cross sectional area
Number of wires
Insulation thickness
Approximate outer diameter
Approx.
weight
Max. DC Resistance at 20℃
mm2
No.
mm
mm
kg/km
Ω/km
2x16
7
1.2
14.4
133
1.91
2x25
7
1.4
17.6
200
1.20
2x35
7
1.6
20.4
279
0.868
2x50
7
1.6
22.6
357
0.641
4x16
7
1.2
17.4
266
1.91
4x25
7
1.4
21.3
400
1.20
4x35
7
1.6
24.7
558
0.868
4x50
7
1.6
27.3
714
0.641
4x70
19
1.8
32.4
997
0.443
ABC AAC/XLPE+AAAC/XLPE
Nominal cross sectional area
Number of wires
Insulation thickness(mm)
Approximate outer diameter
Approx.
weight
Max. DC Resistance at 20℃ Ω/km
mm2
Phase Conductor
Neutral Conudctor
Phase Conductor
Neutral Conudctor
mm
kg/km
Phase Conductor
Neutral Conudctor
1x25+1x54.6
7
7
1.4
1.6
21.3
311.1
1.20
0.63
1x35+1x54.6
7
7
1.6
1.6
22.7
350.6
0.868
0.63
1x50+1x54.6
7
7
1.6
1.6
23.8
389.5
0.641
0.63
1x70+1x54.6
19
7
1.8
1.6
25.9
460.3
0.443
0.63
1x70+1x70
19
7
1.8
1.6
26.7
495.3
0.443
0.50
1x95+1x70
19
7
1.8
1.6
28.5
575.8
0.320
0.50
1x120+1x70
19
7
1.8
1.6
29.7
648.7
0.253
0.50
1x120+1x95
19
19
1.8
1.6
31.9
743.6
0.253
0.343
1x150+1x95
19
19
1.8
1.6
33.6
825.2
0.206
0.343
3x25+1x54.6
7
7
1.4
1.6
23.5
511.1
1.20
0.63
3x35+1x54.6
7
7
1.6
1.6
26.1
629.8
0.868
0.63
3x50+1x54.6
7
7
1.6
1.6
28.1
746.5
0.641
0.63
3x70+1x54.6
19
7
1.8
1.6
31.9
958.9
0.443
0.63
3x70+1x70
19
7
1.8
1.6
32.4
993.9
0.443
0.50
3x95+1x70
19
7
1.8
1.6
35.6
1235.4
0.320
0.50
3x120+1x70
19
7
1.8
1.6
37.8
1454
0.253
0.50
3x120+1x95
19
19
1.8
1.6
39.1
1548.9
0.253
0.343
3x150+1x95
19
19
1.8
1.6
42.2
1793.6
0.206
0.343
Company Profile
About Us
Henan Tong-da Cable Co., Ltd, successfully listed on Shenzhen Stock Exchange on Mar.3rd, 2011 (Stock Abbreviation: Tongda Stock, Stock Code: 002560), has devoted itself to the production, R & D and sales of wires and cables for more than 30 years.
The company covers an area of 360,000 square meters with a registered capital of 440 million RMB, which owns eight kinds of major professional products: Phase and earth conductor, power cable, overhead insulated cable, fire resistant cable, environmental protection PVC insulated building wire, contact and catenary wire for Electrified Railway, cable for rail traffic and control cable. Not only special wires and cables in flame retardant, fire resistant, low-smoke free halogen, irradiation cross-linking and etc. can be produced simultaneously, but also can meet the standard of IEC, British BS, American ASTM, German DIN and others, on the basis of customers' requirements.
The company has passed ISO9001 quality system certification, ISO14001 environmental system certification, OHSAS18001 occupational health system certification, CCC National Product Certification, PCCC product certification, CRCC railway product certification, and obtained the National Industrial Product Production License, AAA credit rating certificate, etc.
As the long-term main supplier of State Grid of China Corporation, China Southern Power Grid Corporation, Provincial Power Grid Corporation, China Railway Corporation and many large well-known real estate companies, Tong-da's products, widely used in smart grid, electrified railway, urban rail traffic, real estate engineering, home decoration, have exported to more than 60 countries and regions, such as Europe, Middle East, Southeast Asia, Africa and highly received unanimous praise from numerous customers.

workshop

The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. We are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements.

R & D Building

The company has obtained 48 patents, including 5invention patents. and be approved "ehv conductor in henan province engineering technology research center", has accumulated rich technical reserves for company development.
Customer visit
Customer visit
The company exports to South America, Southeast Asia, the Middle East, Europe, North America, Africa and more than 60 countries and regions, and enjoys a certain reputation among users.
Product packaging
Explanation
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
FAQ

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
