Brand Name HNTDDL, HNTDDL
Place of Origin Henan, China
Model Number 16-1250

Application:

ACSR widely used in power transmission lines with various voltage levels. It is advantages  to across a valley or river or under other various special geographic conditions.The ACSR has advantages of sound electrical conductivity; high mechanical strength; high tensile strength, and the pole distance can be lengthened.



 Construction:

The combination of the aluminum and steel in the conductor design offer efficient conductivity and high tensile strength, making ACSR the most economical solution for overhead power transmission and distribution projects.





These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce according to customers' requirements and specifications.

Product Description

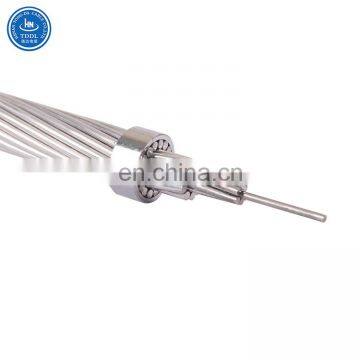

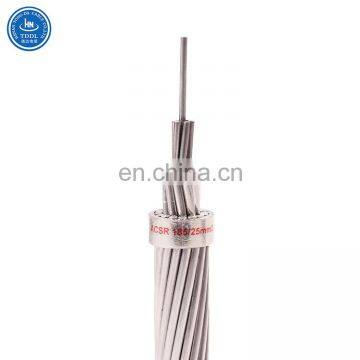

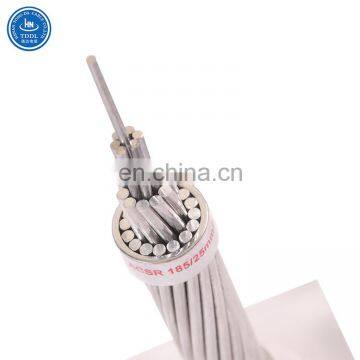

TDDL Aluminum ACSR Conductor Cheap price electric bare conductor with ccc certificate





TDDL Aluminum ACSR Conductor Cheap price electric bare conductor with ccc certificate

Aluminium-clad steel reinforeed conductor
ACSR/AC/1350         AS 3607-1989
Code Stranding and wire diameter Nominal overall diameter Cross-sectional
area		 Approx. mass Break.
load		 Equiv. aluminium area D.C.
resistance per km at 20℃
Aluminium 1350 Steel
mm mm mm mm2 kg/km kN mm2 Ω
Angling 6/2.50 1/2.50 7.5 34.36  113  10.6 30.7  0.923
Aquatics 6/2.75 1/2.75 8.3 41.58  137  12.7  37.1  0.763
Archery 6/3.00 1/3.00 9.0  49.48  163  15.1  44.1  0.641
Baseball 6/3.75 1/3.75 11.3  77.31  254  22.3  68.9  0.410
Bowls 6/4.75 7/1.60 14.3  120.4  385  32.7  109  0.259
Cricket 30/2.50 7/2.50 17.5  181.6  636  64.4  155  0.182
Darts 30/3.00 7/3.00 21.0  261.5  913  91.6  224  0.126
Dice 30/3.25 7/3.25 22.8  306.9  1070  106  263  0.108
Diving 30/3.50 7/3.50 24.5  356.0  1240  122  305  0.0928
Golf 54/3.00 7/3.00 27.0  431.2  1380  120  390  0.0726
Gymnastics 54/3.25 7/3.25 29.3  506.0  1620  139  457  0.0619
Hurdles 54/3.50 7/3.50 31.5  586.9  1880  159  530  0.0533
Lacrosse 54/3.75 19/2.25 33.8  672.0  2150  180  608  0.0465
Skating 3/1.75 4/1.75 5.3  16.84  83  12.3  10.3  2.75
Soccer 3/2.50 4/2.50 7.5  34.36  171  24.9  21.1  1.34
Swimming 4/3.00 3/3.00 9.0  49.48  218  28.9  35.0  0.807
Tennis 4/3.75 3/3.75 11.3  77.31  340  42.6  54.7  0.517
Aluminium-coated steel reinforced conductor
ACSR/AZ/1350         AS 3607-1989
Code Stranding and wire diameter Nominal overall diameter Cross-sectional
area		 Approx. mass Break.
load		 Equiv. aluminium area D.C.
resistance per km at 20℃
Aluminium 1350 Steel
mm mm mm mm2 kg/km kN mm2 Ω
Barley 6/2.50 1/2.50 7.5 34.36  118  10.2 29.0  0.975
— 6/2.75 1/2.75 8.3 41.58  — — — —
Bean 6/3.00 1/3.00 9.0  49.48  170  14.5 41.8  0.677
Cabbage 6/3.75 1/3.75 11.3  77.31  265  21.4 65.2  0.433
Carrot 6/4.75 7/1.60 14.3  120.4  399  32.0  105  0.271
— 30/2.50 7/2.50 17.5  181.6  — — — —
— 30/3.00 7/3.00 21.0  261.5  — — — —
— 30/3.25 7/3.25 22.8  306.9  — — — —
— 30/3.50 7/3.50 24.5  356.0  — — — —
— 54/3.00 7/3.00 27.0  431.2  — — — —
— 54/3.25 7/3.25 29.3  506.0  — — — —
— 54/3.50 7/3.50 31.5  586.9  — — — —
— 54/3.75 19/2.25 33.8  672.0  — — — —
— 3/1.75 4/1.75 5.3  16.84  — — — —
— 3/2.50 4/2.50 7.5  34.36  — — — —
— 4/3.00 3/3.00 9.0  49.48  — — — —
— 4/3.75 3/3.75 11.3  77.31  — — — —
Zinc-coated steel reinforced conductor
ACSR/GZ/1350         AS 3607-1989
Code Stranding and wire diameter Nominal overall diameter Cross-sectional
area		 Approx. mass Break.
load		 Equiv. aluminium area D.C.
resistance per km at 20℃
Aluminium 1350 Steel
mm mm mm mm2 kg/km kN mm2 Ω
Almond 6/2.50 1/2.50 7.5 34.36  119  10.5 29.0  0.975
Apricot 6/2.75 1/2.75 8.3 41.58  144  12.6 35.1  0.805
Apple 6/3.00 1/3.00 9.0  49.48  171  14.9 41.8  0.677
Banana 6/3.75 1/3.75 11.3  77.31  268  22.7 65.2  0.433
Cherry 6/4.75 7/1.60 14.3  120.4  402  33.4 105  0.271
Grape 30/2.50 7/2.50 17.5  181.6  677  63.5 144  0.196
Lemon 30/3.00 7/3.00 21.0  261.5  973  90.4 207  0.136
Lychee 30/3.25 7/3.25 22.8  306.9  1140  105 243  0.116
Lime 30/3.50 7/3.50 24.5  356.0  1320  122 282  0.100
Mango 54/3.00 7/3.00 27.0  431.2  1440  119 373  0.0758
Orange 54/3.25 7/3.25 29.3  506.0  1690  137 438  0.0646
Olive 54/3.50 7/3.50 31.5  586.9  1960  159 508  0.0557
Pawpaw 54/3.75 19/2.25 33.8  672.0  2240  178 583  0.0485
Quince 3/1.75 4/1.75 5.3  16.84  95  12.7 8.74  3.25
Raisin 3/2.50 4/2.50 7.5  34.36  195  24.4 17.8  1.59
Sultana 4/3.00 3/3.00 9.0  49.48  243  28.3 31.5  0.897
Walnut 4/3.75 3/3.75 11.3  77.31  380  43.9 49.2  0.573

Packaging & Shipping



FAQ





Q1. Are you a manufacturer?

Yes, we are a manufacturer own factory with almost 30 years experiences.

Q2. What are your main products?

Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System

Q3. What’s the package of products ?

The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.

Q4. How can I get samples?

Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.

Q5. What is our payment terms ?

We can accept the following payment terms: T/T, L/C, O/A
