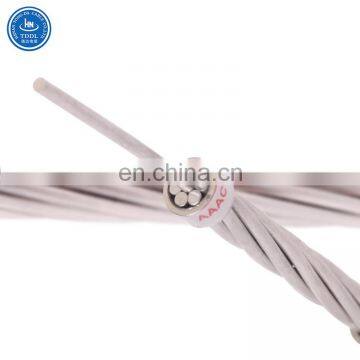

Help CenterTDDL AAAC Conductor-all Aluminum Alloy Conductor ASTM B399 Azusa Willow Fir Almond Ash
Related Products
-
TDDL All Aluminum Alloy Conductor-AAAC Cable 6201 Ash Alliance Box Almond Fir Pine YewUS$ 1 - 15MOQ: 1 Meter -
TDDL Anti-corrosion ACSR ( Anti-corrosive Grease ) for Overhead Transmission LinesUS$ 1 - 15MOQ: 1 Meter
-
TDDL AAAC Bare Conductor Various Specification Aluminum Conductive Materials AAAC Cable Wire ManufacturersUS$ 1 - 15MOQ: 1 Meter
-
TDDL ACSR Ibis 397.5MCMUS$ 1 - 15MOQ: 1 Meter
-
TDDL AAC Bare Conductor AAC 500 MCM Stranding Conductor Electrical Wires Used All Aluminum MaterialUS$ 1 - 15MOQ: 1 Meter
Product Performance:
(1). The electrical performance of AAAC is indicated in DCΩ /k(20oC). The resistivity of aluminum alloy wire for stranded wires is:
LHA1: not greater than 32.840nΩ . m
LHA2: not greater than 32.530nΩ . m
(2). The rated tensile strength of AAAC is denoted with the result of total cross-section areas of all aluminum alloy conductors multiplied by min.
Model:
All Aluminum Conductor (AAC)
Aluminum Conductor Steel Reinforced (ACSR)
All Aluminum Alloy Conductor (AAAC)
Aluminum Conductor Aluminum Alloy Reinforced (ACAR)
Supply
We can supply this conductor according to different recognized standards,such as GB/T,IEC,ASTM,CSA,BS,DIN,AS,JIS,KS,NFC and so on.Customer special specification also can be satisfied.
|
6201 All Aluminum Alloy Conductor AAAC ASTM B399 | ||||||||
| Code Name | Area | Size&Stranding of ACSR with equal diameter |
No. and diameter |
Overall diameter |
Weight |
Nominal breaking load |
||
| Nominal | Actual | AWG or MCM | Al/St | |||||
| MCM | mm2 | mm | mm | kg/km | kN | |||
| AKRON | 30.58 | 15.48 | 6 | 6/1 | 7*1.68 | 5.04 | 42.7 | 4.92 |
| ALTON | 48.69 | 24.71 | 4 | 6/1 | 7*2.12 | 6.35 | 68 | 7.84 |
| AMES | 77.47 | 39.22 | 2 | 6/1 | 7*2.67 | 8.02 | 108 | 12.45 |
| AZUSA | 123.3 | 62.38 | 1/0 | 6/1 | 7*3.37 | 10.11 | 172 | 18.97 |
| ANAHEIM | 155.4 | 78.65 | 2/0 | 6/1 | 7*3.78 | 11.35 | 217 | 23.93 |
| AMHERST | 195.7 | 99.22 | 3/0 | 6/1 | 7*4.25 | 12.75 | 273 | 30.18 |
| ALLIANCE | 246.9 | 125.1 | 4/0 | 6/1 | 7*4.77 | 14.31 | 345 | 38.05 |
| BUTTE | 312.8 | 158.6 | 266.8 | 26/7 | 19*3.26 | 16.3 | 437 | 48.76 |
| CANTON | 394.5 | 199.9 | 366.4 | 26/7 | 19*3.66 | 18.3 | 551 | 58.91 |
| CAIRO | 465.4 | 235.8 | 397.5 | 26/7 | 19*3.98 | 19.88 | 650 | 69.48 |
| DARIEN | 559.5 | 283.5 | 477 | 26/7 | 19*4.36 | 21.79 | 781 | 83.52 |
| ELGIN | 652.4 | 330.6 | 556.5 | 26/7 | 19*4.71 | 23.54 | 911 | 97.42 |
| FLINT | 740.8 | 375.3 | 636 | 26/7 | 37*3.59 | 25.16 | 1035 | 108.21 |
| GREELEY | 927.2 | 469.8 | 795 | 26/7 | 37*4.02 | 28.14 | 1295 | 135.47 |
1. Scale capital advantage
Under the background of the frequent closure of small and medium-sized enterprises, Tongda shares as a listed company undoubtedly provided financial guarantee for the company's development.
2. Product capacity advantage
16 wire drawing machines 15 stranding machines (including 8 frame winches) Aluminum alloy aging furnace 3 sets
3. Product price advantage
Our company located in aluminium mining area and bears low cost of finished products transportation. Our company has continuous casting machine. The rolling mill effectively reduces the cost. Compared with domestic and international cable group companies, prices have unique advantages, especially aluminum products.
4. Product quality advantage
The company's quality inspection center has more than 20 people. The product inspection is divided into raw material inspection, semi-finished product inspection and finished product inspection. During the production process, the inspection personnel pay attention to supervising the product quality for 24 hours.
5. Service advantage
Our company has a dedicated after-sales service team , and has always been recognized by customers
6. Product brand advantage
In recent years, our company has repeatedly ranked the first in the wire and cable export industry in Henan province,We had been exported to nearly 70 countries and regions.
Till now, TDDL has obtained a series of certifications covering ISO9001 quality management, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety
management system, China CCC, PCCC, CRCC, CE etc.
Henan Tong-Da Cable Co.,LtdHenan Tong-Da Cable Co.,Ltd founded in 1987, covers an area of 360,000 square meters.
The annual production capacity of conductors and power cables is more than 100,000 tons. On March 3, 2011, Tong-Da became a public company listed on the Shenzhen Stock Exchange.
Our company is specialized in conductors, such as: All Aluminium Conductor (AAC), All Aluminium Alloy Conductor (AAAC), Aluminium Conductor Steel Reinforced (ACSR), Aluminium Conductor Aluminium Clad Steel Reinforced (ACSR/AW), All Aluminium Alloy Steel Reinforced (AACSR), Aluminium Conductor Aluminium Alloy Reinforced (ACAR), Aluminium Clad Steel Strand (ACS), Galvanized Steel Wire Strand. We can also supply Aerial Bundled Cable (ABC cable), PVC Insulated Wire and Flexible Wire, PVC Insulated Power Cable, XLPE Insulated Power Cable, General Rubber sheathed Flexible Cable, Mining Cable, Welding Cable and Control Cable. These products meet standards of GB, IEC, BS, DIN/VDE, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce according to customers' requirements and specifications. We have obtained certificates of ISO9001, ISO14001, China's Electrical Product Safety Certification, State Economic and Trade Commission Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Through years of unremitting effort and endeavors, we have achieved sound reputation and widely compliments from clients all over the world by superior quality, reasonable price and sincere after-sale services.
The factory gates
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 30 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
Welcome to place order immediatel !
