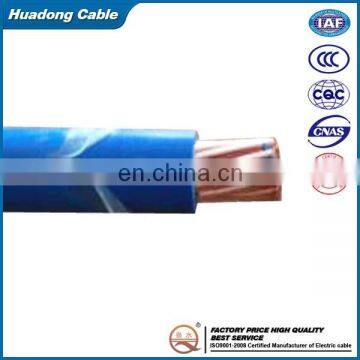

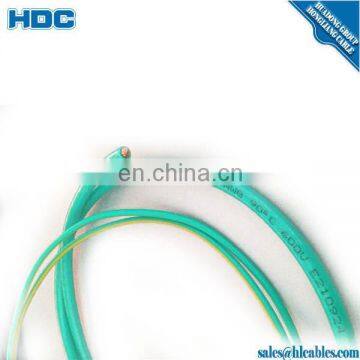

Philippines best selling THHN 200mm2 single copper conductor 90 PVC insulation nylon jacket WIRE
Application and Constructure:
1: THHN: It indicates a single or stranded conductor having flame-retardant and heat-resistant thermoplastic insulation with a jacket of extruded nylon or equivalent material. The wire is rated 90oC dry only.
2: THWN: It indicates a single or stranded conductor having flame-retardant, moisture and heat resistant thermoplastic insulation with a jacket of extruded nylon or equivalent material. The wire is rated 75oC wet or dry
3: Conductor: Annealed solid or stranded copper wires
4: Insulation: Polyvinyl Chloride (PVC) Rated 105oC
5: Jacket: Nylon jacket is provided to protect PVC insulation against abrasions and scratches while pulling through conduits. It is also resistant to oil , gasoline and chemicals.
Standard of THHN/THWN cable:
A: Conform to ASTM -B3 /B8standard single or multiple strands of fine twisted into a bundleof 14-2/0 AWG bare copper wire
B:Conform to high dielectric strength of flame retardant PVC wire insulation (according to the customer request custom color )
C.Meet nylon covering the outer insulation ,three core or more than three core wire plus padding outer sheath torn medal refueling nylon rope .
D:According with prevent bask ,prevent leakage of PVC wire sheath(according to the customer request custom color)
Rated Voltage:600v.
Rated Temperature :90°c
Specification
AVAILABLE COLORS:
Cables (Size 20 to 10 AWG): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Size 8 to 2 AWG): Black, White, Blue and Red.
Cables (Size 1 to 1000 MCM): Black.
Part Number |
AWG Size |
Conductor Stranding |
Nom. O.D. (in) |
Nom. Insul. Thick. (in) |
Jacket Thick |
Approx LBS/MFT |
Ampacity @ 90°C |
THHN 14 1 |
14 |
Solid |
0.102 |
0.015 |
0.004 |
15 |
15 |
THHN 14 19 |
14 |
19/27 |
0.109 |
0.015 |
0.004 |
16 |
15 |
THHN 12 1 |
12 |
Solid |
0.119 |
0.015 |
0.004 |
23 |
20 |
THHN 12 19 |
12 |
19/25 |
0.128 |
0.015 |
0.004 |
24 |
20 |
THHN 10 1 |
10 |
Solid |
0.161 |
0.020 |
0.004 |
38 |
30 |
THHN 10 19 |
10 |
19/23 |
0.161 |
0.020 |
0.004 |
38 |
30 |
THHN 8 19 |
8 |
19/21 |
0.213 |
0.030 |
0.005 |
63 |
55 |
THHN 6 19 |
6 |
19/.0372 |
0.249 |
0.030 |
0.005 |
95 |
75 |
THHN 4 19 |
4 |
19/.0469 |
0.318 |
0.040 |
0.006 |
152 |
95 |
THHN 3 19 |
3 |
19/.0526 |
0.346 |
0.040 |
0.006 |
189 |
110 |
THHN 2 19 |
2 |
19/.0591 |
0.378, |
0.040 |
0.006 |
234 |
130 |
THHN 1 19 |
1 |
19/.0664 |
0.435 |
0.050 |
0.007 |
299 |
150 |
THHN 1/0 19 |
1/0 |
19/.0745 |
0.474 |
0.050 |
0.007 |
372 |
170 |
THHN 2/0 19 |
2/0 |
19/.0837 |
0.518 |
0.050 |
0.007 |
462 |
195 |
THHN 3/0 19 |
3/0 |
19/.0940 |
0.568 |
0.050 |
0.007 |
575 |
225 |
THHN 4/0 19 |
4/0 |
19/.1055 |
0.624 |
0.050 |
0.007 |
718 |
260 |
THHN 250 37 |
250 |
37/.0822 |
0.678 |
0.060 |
0.008 |
851 |
290 |
THHN 300 37 |
300 |
37/.0822 |
0.730 |
0.060 |
0.008 |
1012 |
320 |
THHN 350 37 |
350 |
37/.0973 |
0.777 |
0.060 |
0.008 |
1174 |
350 |
THHN 400 37 |
400 |
37 |
0.821 |
0.060 |
0.008 |
1334 |
380 |
THHN 500 37 |
500 |
37 |
0.902 |
0.060 |
0.008 |
1655 |
430 |
THHN 600 61 |
600 |
61 |
0.998 |
0.070 |
0.009 |
1987 |
475 |
THHN 750 61 |
750 |
61 |
1.126 |
0.070 |
0.009 |
2464 |
535 |
THHN 1000 61 |
1000 |
61 |
1.275 |
0.070 |
0.009 |
1275 |
615 |
Packing:

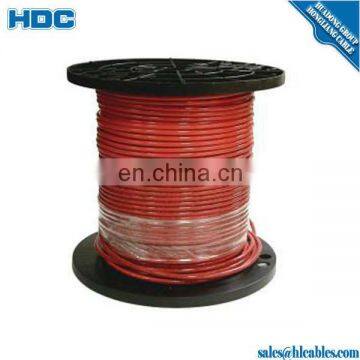

A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
