Product Details
| Brand Name | Huadong for CABLE 3 12 AWG THHN | Place of Origin | Henan, China | |
| Model Number | THHN | Type | Insulated | |
| Insulation Material | PVC | |||
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description

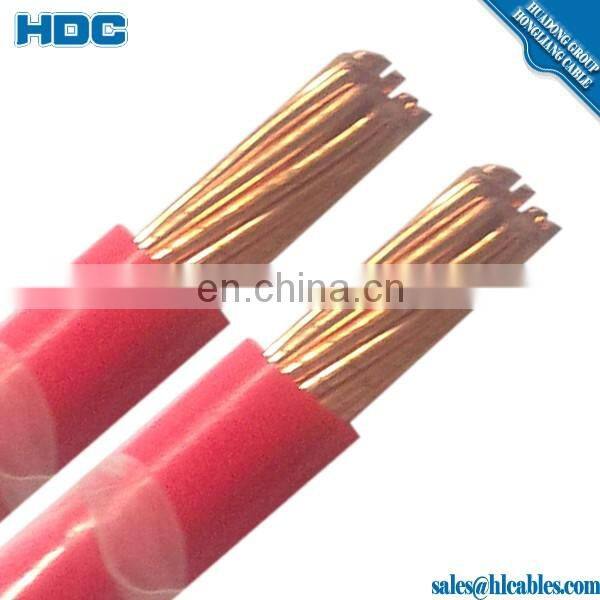

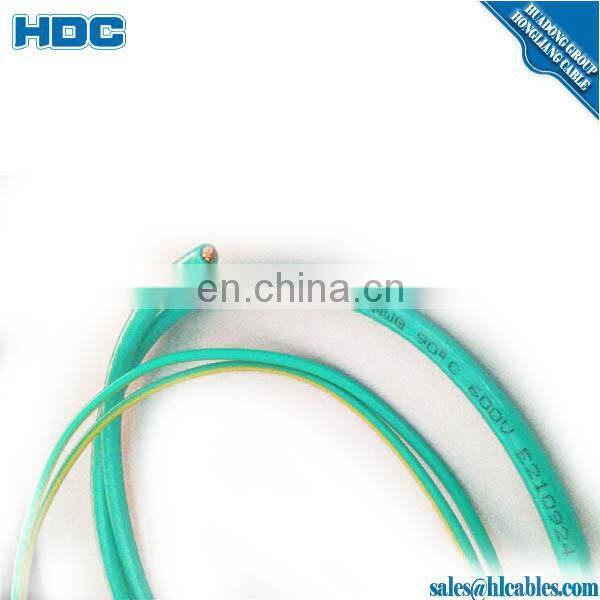

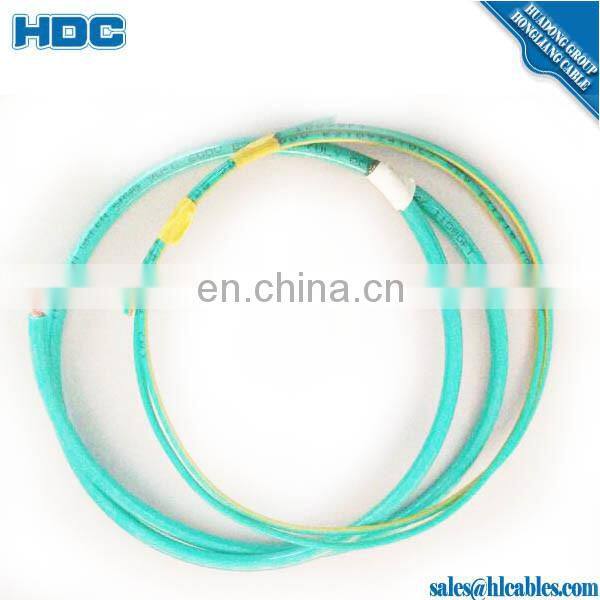

Item Name :CABLE LOW VOLTAGE PTC BJ TNS 600 V 3 12 AWG THHN PVC.
1. Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.
2. Description:
1.Conductor: Bare Copper, Soft Drawn
2.Insulation: PVC
3.Jacket: NYLON
3.Standard Colors
Black,Brown, Red, Orange, Yellow, Green , Blue , Violet , Gray , White , Pink , Tan; Striping and Other colors available upon request.
4.Gasoline & oil resistant - Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C where exposed to oil.
Ratings:
1.THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V
2.THWN-2: 75°C Oil, 90°C Wet, 90°C Dry, 600V
3.MTW: 60°C Oil, 60°C Wet, 90°C Dry, 600V
4.AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry, 600V
5.AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry, 600V
6.AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry, 600V
7.T90 NYLON: 60°C Oil, - Wet, 90°C Dry, 1000V
8.TWN 75: - Oil, 75°C Wet, - Dry, 600V
.
CABLE LOW VOLTAGE PTC BJ TNS 600 V 3 12 AWG THHN PVC Packing and Shipping Details.
CABLE LOW VOLTAGE PTC BJ TNS 600 V 3 12 AWG THHN PVC Service.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
CABLE LOW VOLTAGE PTC BJ TNS 600 V 3 12 AWG THHN PVC Company Information .
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
CABLE LOW VOLTAGE PTC BJ TNS 600 V 3 12 AWG THHN PVC Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.Meanwhile we can produce based on customers' requirements and specifications.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking
