IEC 60228 450/500V H07RN-F Heavy rubber sheathed flexible cable yellow green grounding 1x70mm2 factory price
Application
Used for medium and heavy mechanical loads, in dry and wet areas, also outdoor. Could be installed under or on plaster, in rocks, concrete, but not in pre-stressed concrete. Cable suitable for fixed industrial and home installation, for operating conditions with possible fire or explosion hazard, for mobile energy users, machine tools and agricultural machines, for construction sites at medium mechanical loads, for large kettles, heating plates, hand lamps, electrical tools such as drills, circular saws and electrical tools for household use, same as for mobile engines or machines on construction sites and craftsman i.e. agricultural plants. Permitted fixed laying on crane and machine elements etc. Permitted voltages up to 1000 V AC at protected laying in tubes or devices, and as connecting rotor cable for engines. Also suitable for cooling installations. Resistant to oil, ozone and UV irradiation.
Standard
HRN HD 22.4 S3
IEC 60245-4
DIN VDE 0282 part 4
Construction:
Conductor:bare or tinned copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295.
Insulation:rubber compound on ethylene-propylene basis (EPM, earlier: EPR), i.e. EI4 acc. to DIN VDE 0282 part 1
Sheath:rubber compound on poly-chloroprene basis (CR), i.e. acc. to. DIN VDE 0282 part 1

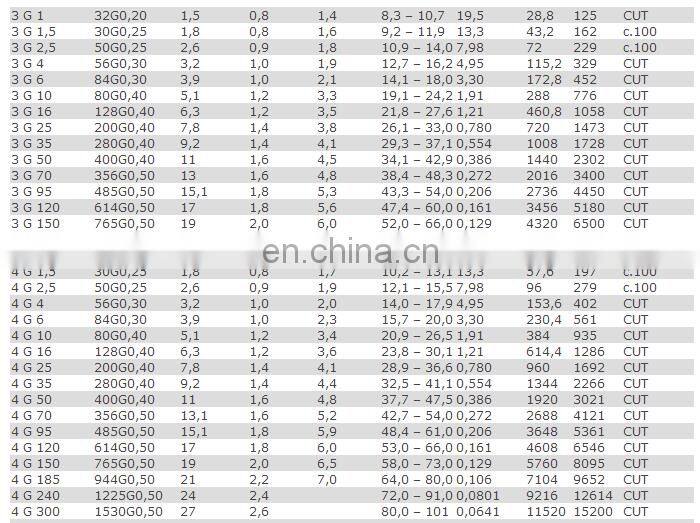

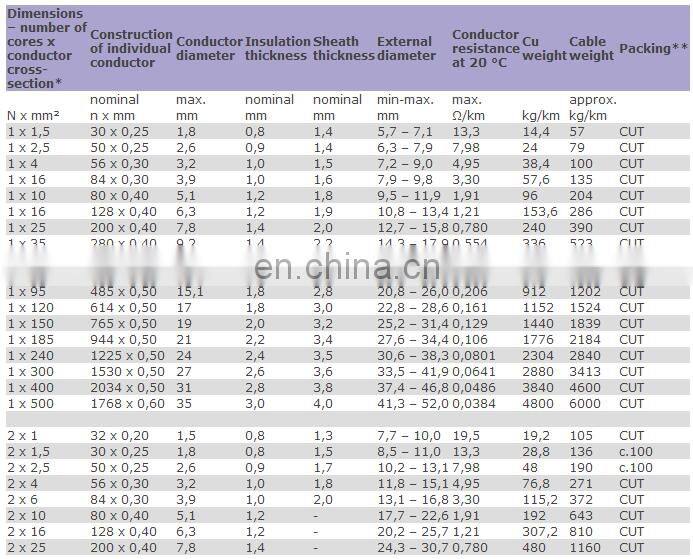

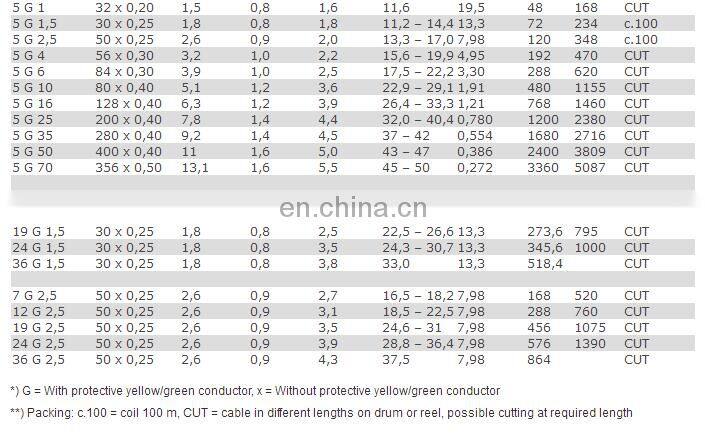

Technical data
Temperature range:
During installation:-30 °C up to +60 °C
maxiam operating temp:+60 °C
at short circuit of max. 5 s:up to 200 °C
Nominal voltage:Uο/U = 450/500 V
Test voltage:2500V
Maximal operating voltage:alternating current three-phase and Uο/U = 476/825 V
Minimal inner bending radius:
for fixed installation:4D
for running over roller:7.5D
at winding on drum:5-7D
Behaviour in fire:IEC 60332-1
Ozone resistance:acc. to DIN VDE 0472 part 805
Delivery within 15 working days
Packing by iron-wooden drum or as customer`s requirement.
IEC 60228 450/500V H07RN-F Heavy rubber sheathed flexible cable yellow green grounding 1x70mm2 factory price
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
Frequently Asked Question
1. Which payment terms do you accept?
a.The payment term varies with different price level and total rate of each contract.
The following are most common terms:
b. 30% T/T down payment, the balance before you picking up the goods.
c. 100% L/C at sight.
d. 30% T/T down payment, the balance against 100% L/C at sight.
2. What is your MOQ?
You are advised to please confirm it with us directly as it’s based on different cable type.
Usually it’s 100 meters for Medium Voltage Cables.
3. What about the lead time for our cable product ?
The lead time according to the your order's quantity.Usually our lead time is 10 - 30 wrking days.
4. What about our product's package ?
our product's package usually is wooden drum or steel-wooden drum.The cable wire is usually coiled.
