Submersible Pump Cable Welding Cable Cable Icea S-73-532 600v Xlpe/pvc 25mm2 35mm2

FOB Price

US$ 0.1 - 5 / Meter

200 Meters(Min. Order)

Port Qingdao shanghai tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Huadong	Place of Origin	Hebei, China
Model Number	CEH CEF CHH	Type	Low Voltage
Insulation Material	Rubber
Jacket	Rubber	Conductor Material	Copper

Product Description

submersible pump cable welding cable cable icea s-73-532 600v xlpe/pvc 25mm2 35mm2

Rating voltage: 0.6/1kv

International Standards applied

IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359

IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

JIS C 3410 standards

JIS C 3002 JIS C 3005

JIS K 1433 JIS K 8422

DIN standards

DIN89158

DIN89159

DIN89160

Marine cables construction:

1. Conductor: tinned copper wire,class2 or 5

2. Fire resistant Mica tape on request

3. Insulation: XLPE/EPR

4. Filler ( if necessary)

5. Tape

6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)

7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided

8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)

Marine cables Specifications

Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37

Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2

Marine cables Flammability features

SA:bunched cable flame retardant

SC:bunched cable flame retardant,halogen free & low smoke

NA:bunched cable flame retardant,fire resistant

NC:bunched cable flame retardant,fire resistant,halogen free & low smoke

Marine cables Application

This marine cables areintended for power,lighting of shipboard or offshore building.

It is also available for power plant,chemical works and mines,etc.

Marine cables Classification Society Certificates

CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.

The radius of bend for the installation of marine cables

Cable structure features	Over diameter of cable(D)	Minimum internal bending radius
Metal braided armored	Any value	6D
Non-armored	D≤25	4D
Non-armored	D25	6D

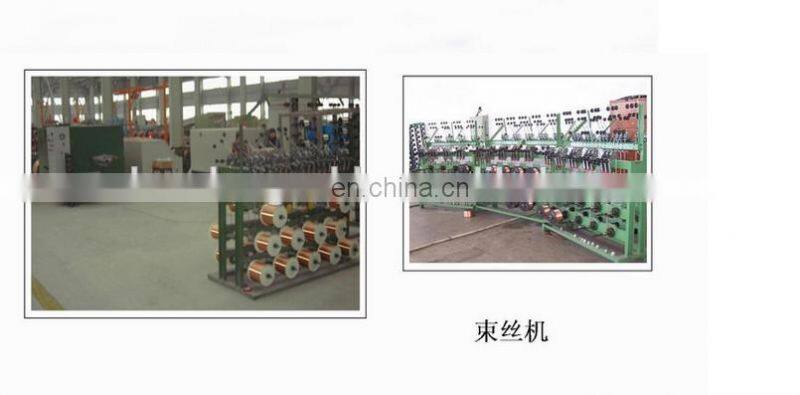

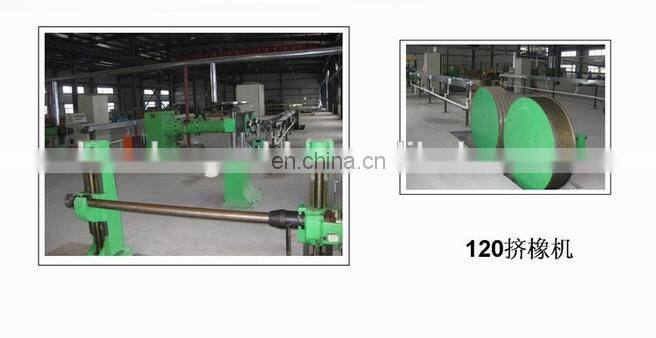

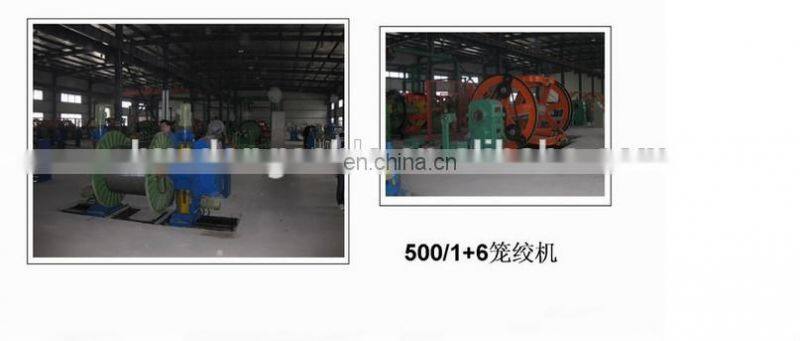

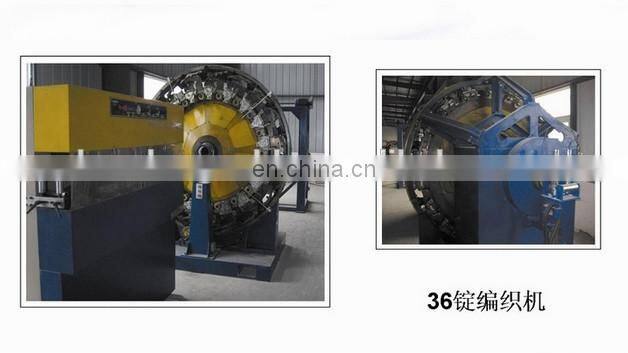

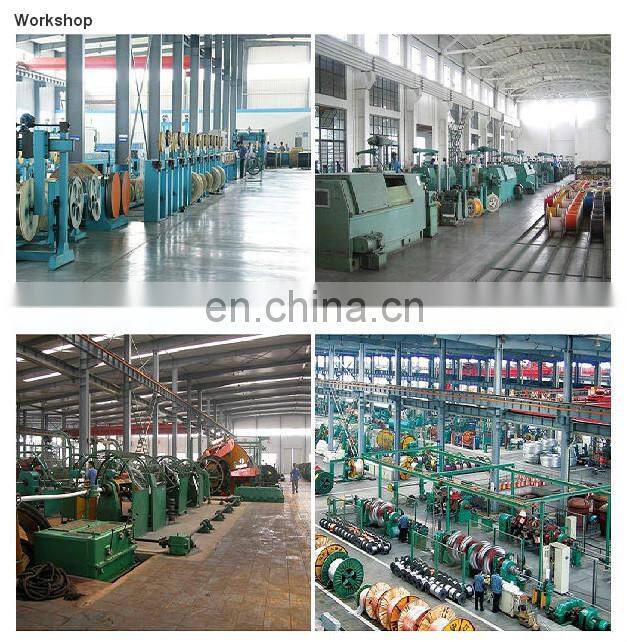

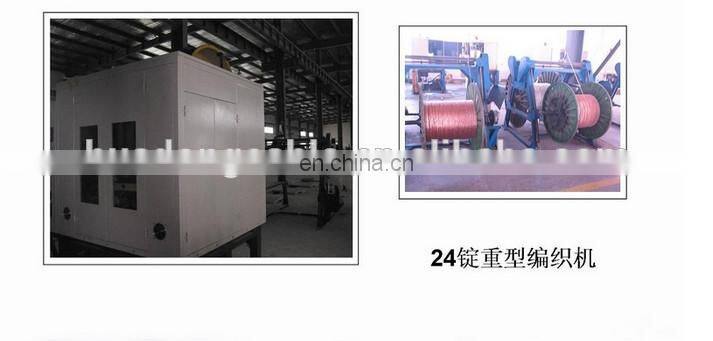

Brief Introduction of Equipment

FAQ

1.What is the marine cable price?

We need to know cable type or cable structure, size and quantity.

2. What is the MOQ?

The MOQ of our marine cable is 100M each size.

3. What is the production time?

Normally in 20 days.

4.What is your trade terms?

EXW FOB CFR CIF DAP

5.What is your acceptable payment terms?

Usually by TT. Other payment way also acceptable.

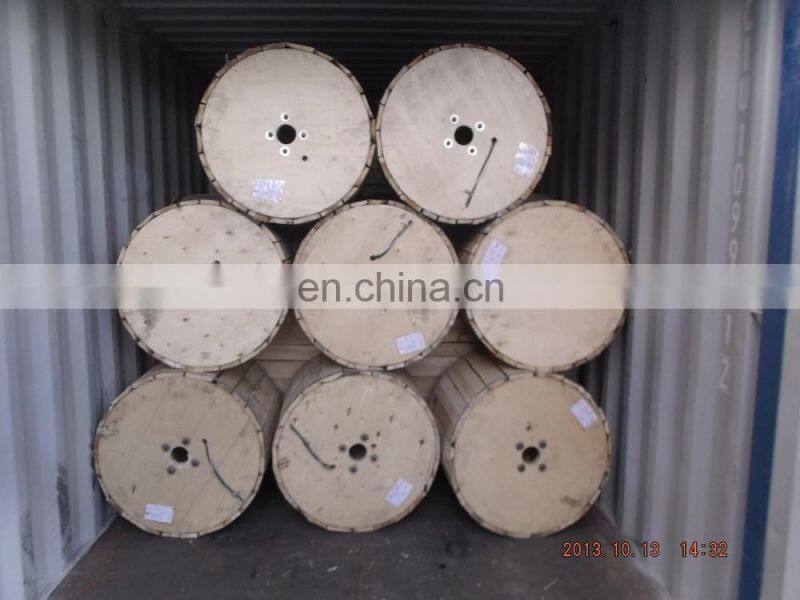

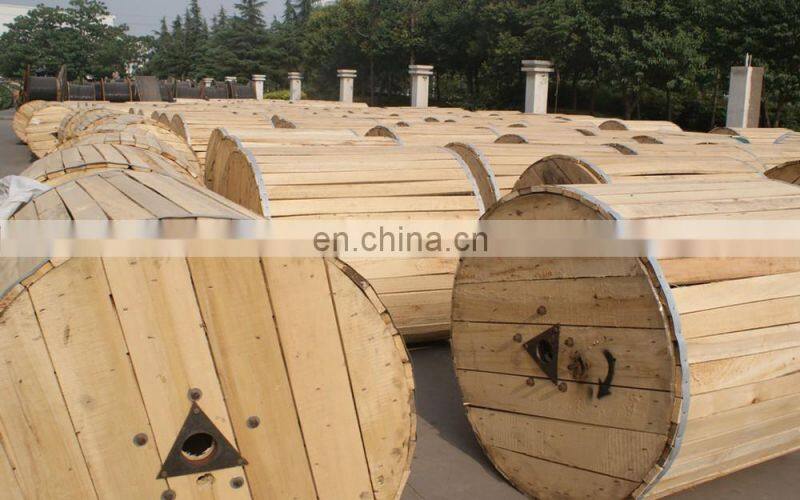

Packaging & Shipping

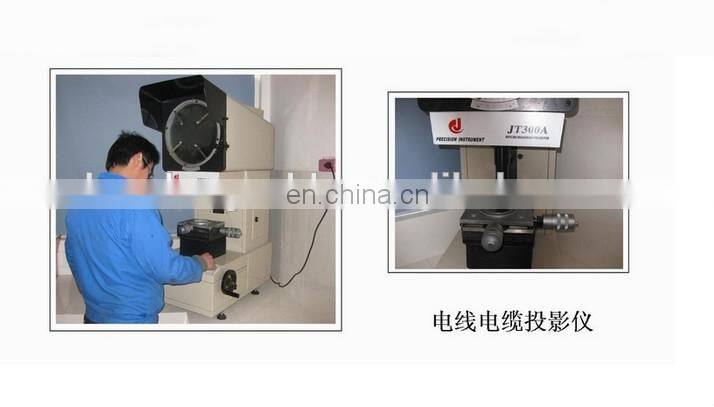

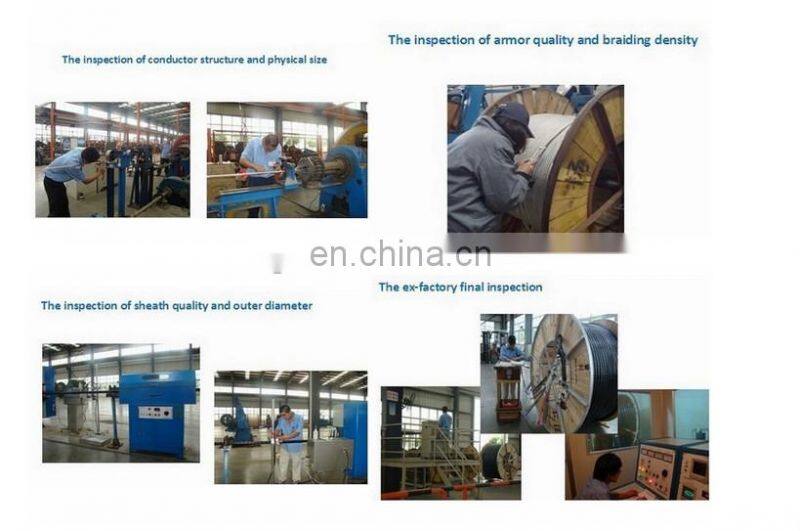

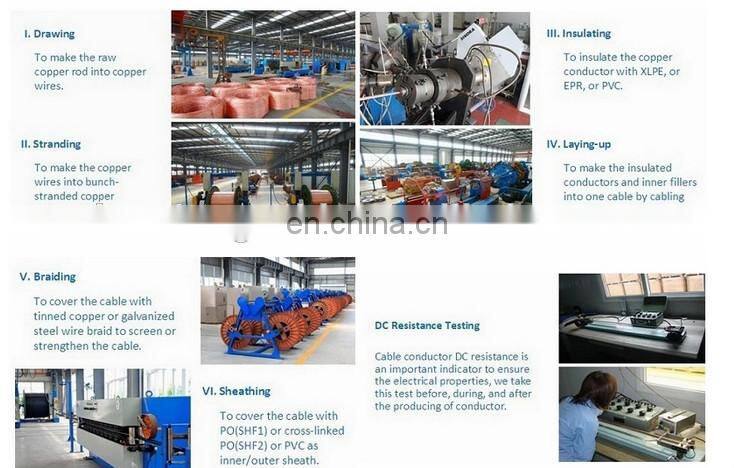

Production process & inspection
