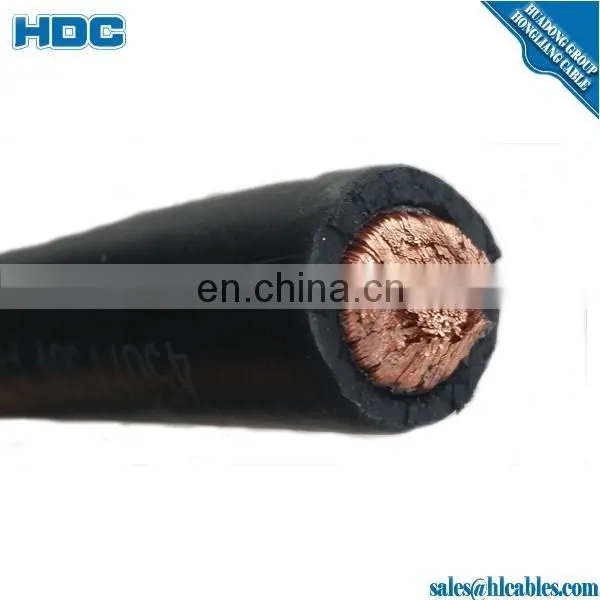

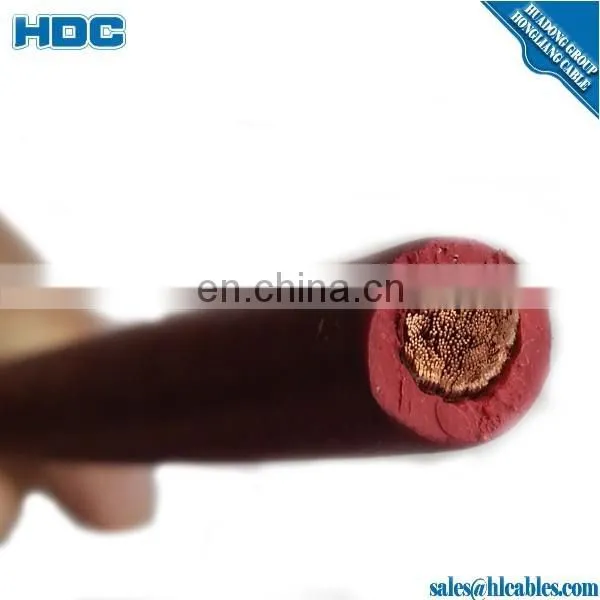

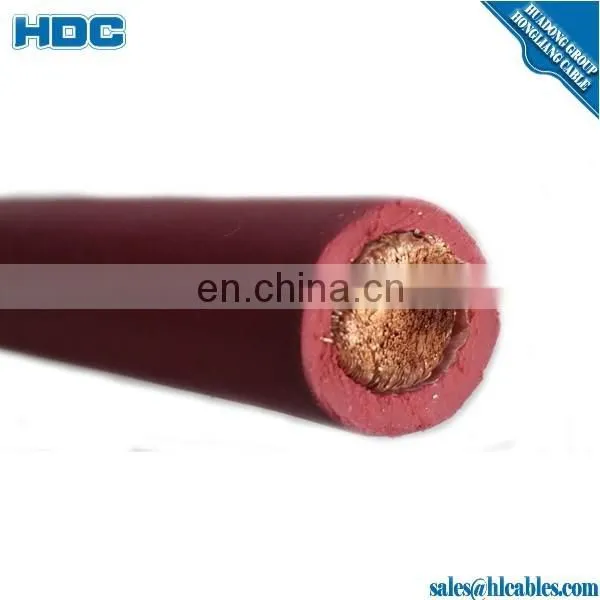

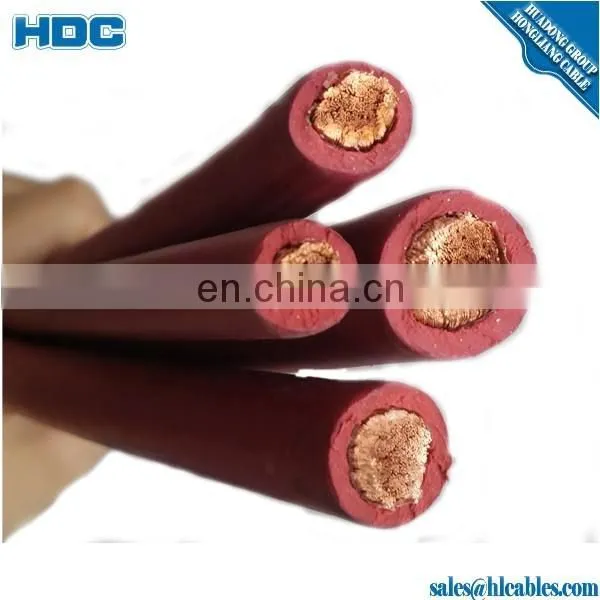

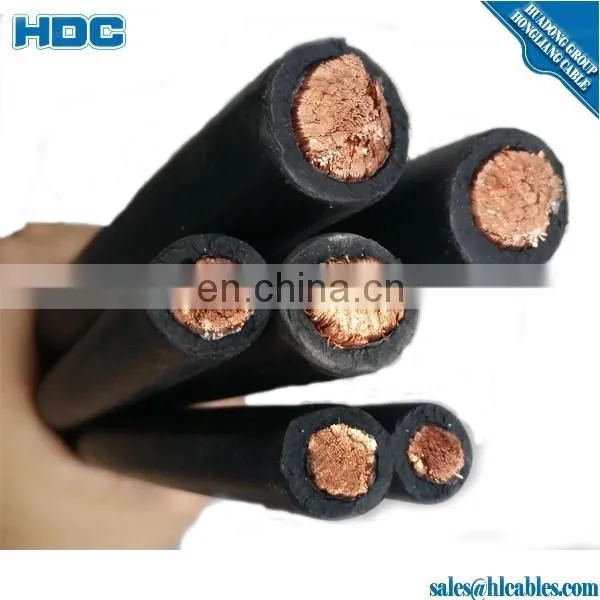

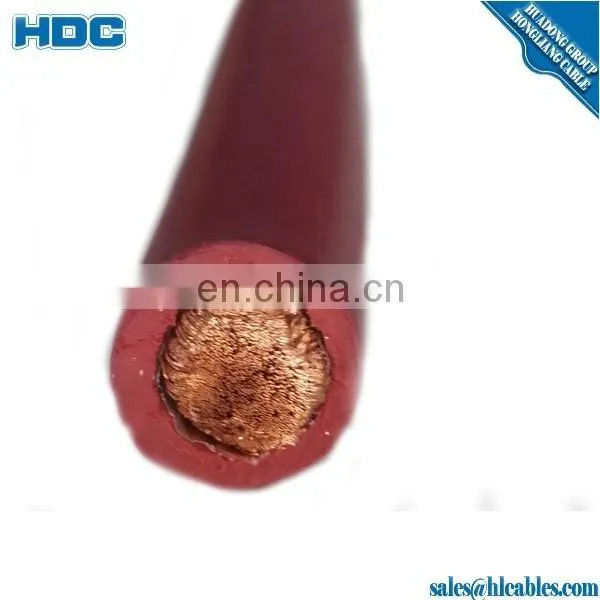

flexible copper conductor 50mm2 welding cable/Battery cable/earth lead cable
- 50000 Kilometer / Kilometers per Month
- Qingdao/Shanghai/Tianjing/Ningbo/Shenzhen for 50mm2 battery cable
- T/T Credit Card
- 4 core rubber cable Malaysia New Zealand 16mm2 flexible cable
- Vacuum Cleaner Rubber cable H05RR-F 300/500V 5G 2.5mm2 factory price
- YJGCFPB 10kv 6kv flat rubber power cable silicon rubber insulation sheath tinner copper shielded wild rolling use
- 50mm2 flexible rubber battery cable price 35mm2 flexible rubber welding cable price
- NSGAFOU 1.8/3 kV Flexible single-conductor rubber cable EPR insulated CPE sheath oil and abrasion resistant VDE
- YJGCFPB 10kv 3*25+3*16/3 4*35+4*16/4mm2 flat rubber crane rolling cable EPR insulation tinner copper shielde Neoprene sheath
Product Details
Brand Name: | Huadong | Place of Origin: | Henan, China | Model Number: | 50mm2 battery cable |
Type: | Low Voltage | Application: | Industrial | Insulation Material: | Rubber |
Jacket: | Rubber | Conductor Material: | Copper |
Product Description
Item Name :flexible copper conductor 50mm2 welding cable/Battery cable/earth lead cable .
1 . 50mm2 battery cable Standard:
According to GB5013(Equal to IEC245),also can do by standard of ASTM,BS,DIN and AS/NZS or other standards.
2. 50mm2 battery cable Construction:
Conductor:Copper or Tinning copper
Insulation: Rubber or Flexible PVC
Sheath:Rubber or Double insulation
3. 50mm2 battery cable Description & Application:
Model | Description | Main Application |
YH | Natural rubber sheath for welding machine cable | Any welding applications. |
YHF | Horoprene rubber or other synthetic rubber sheath welding machine cable
|
4. 50mm2 battery cable Advantages
a. Extra flexible,Excellent electric and mechanical characteristics and wear-resisting.
b. Good resistance to oil,heat,flame,Supper abrasion resistant
c. Simple in structure,Convenient to use
5. Specifications Technical Data for 50mm2 battery cable.
Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 200C Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
flexible copper conductor 50mm2 welding cable/Battery cable/earth lead cable packing and shipping details.
Usually by coil + plastic film or wooden drum or as your demands.
flexible copper conductor 50mm2 welding cable/Battery cable/earth lead cable service ,
flexible copper conductor 50mm2 welding cable/Battery cable/earth lead cable Company Information.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 2005
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Requently Asked Question
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?Sure, we provide the free sample for customer to checking.
TM: CN 1510355297 for 24h free call.
