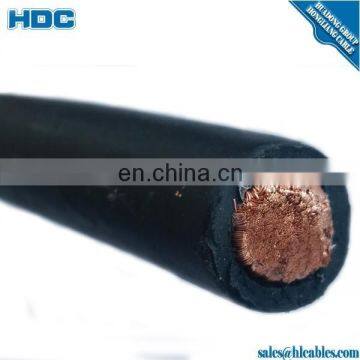

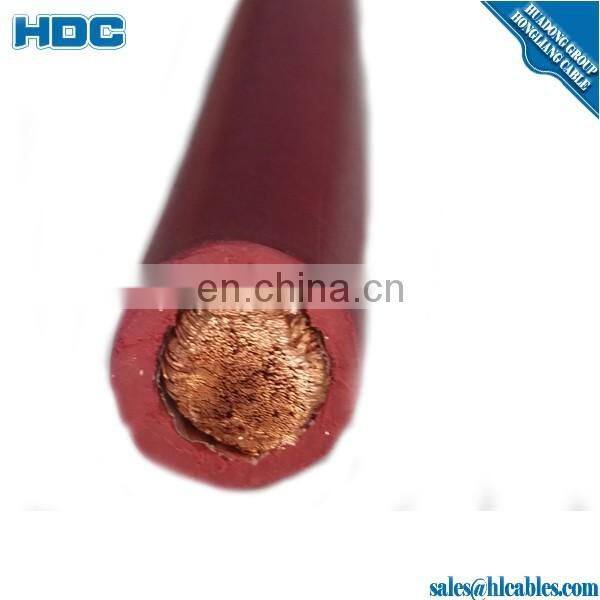

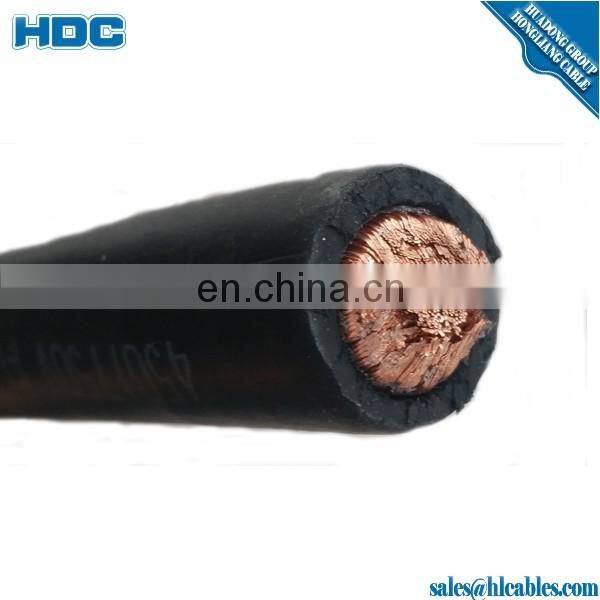

single core flexible copper wire rubber insulated 75mm welding cable.
The cables are suitable for welding machine as secondary earth wire with secondary side to-ground volatage not more than 200V AC and impulse voltage peak 400V DC, or for connecting electrode holders.
Continuous operating temperature ≤60°C.
Standard Rubber Welding Cable.
IEC 60245, GB5013.6-1997ConductorFlexible Annealed Copper SheathNatural Rubber (Type YH)Neoprene Rubber or other equivalent Synthetic Rubber Elastomer (Type YHF)Temperature Rating0oC-65oCStock colors black & red (others available)
Technical data & size Rubber Welding Cable.
| Nominal Section-Area of Conductor(mm2) | Structure of Conductor | Nominal Thik-ness of Sheath (mm) | Overall Diameter | Max. Conductor Resistance at 20º C (Ω /km) | Approx. Weight (kg/km) | ||
| Core no. /Dia. (no. /mm) | Min. | Max. | YH | YHF | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
| 16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
| 25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
| 35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
| 70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
| 95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
| 120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
| 150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.128 | 1648.5 | 1698.72 |
| 185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
single core flexible copper wire rubber insulated 75mm welding cable.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request.
single core flexible copper wire rubber insulated 75mm welding cable.
1. We guarantee to offer new advanced goods.
2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.
3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.
4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
75mm2 welding cable.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
75mm2 welding cable.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
single core flexible copper wire rubber insulated 75mm welding cable.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
