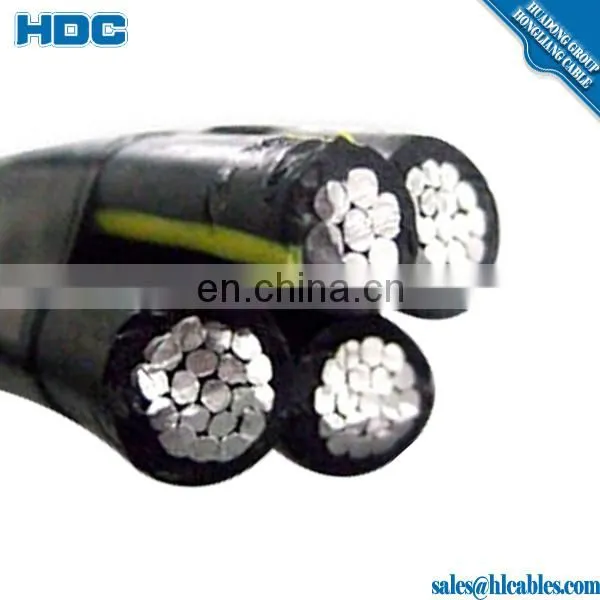

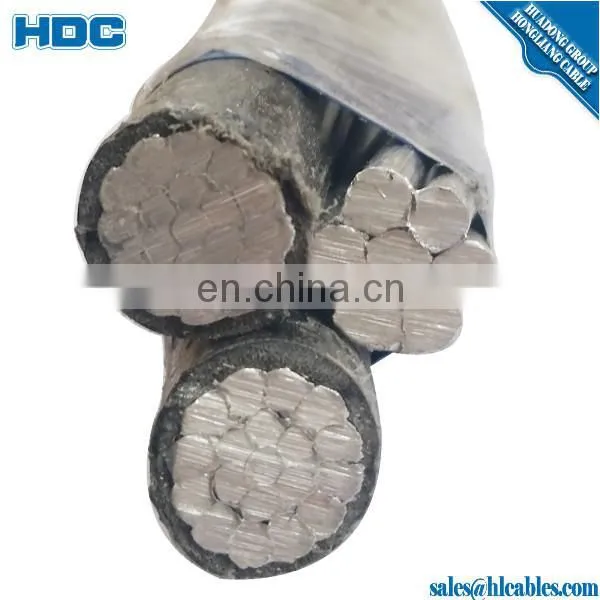

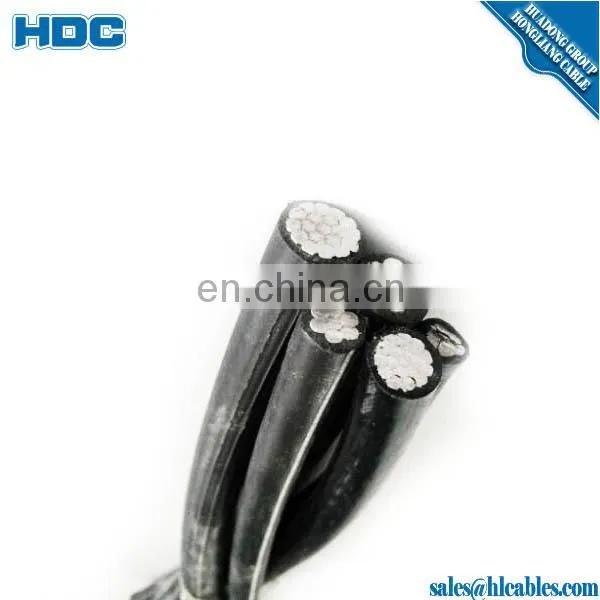

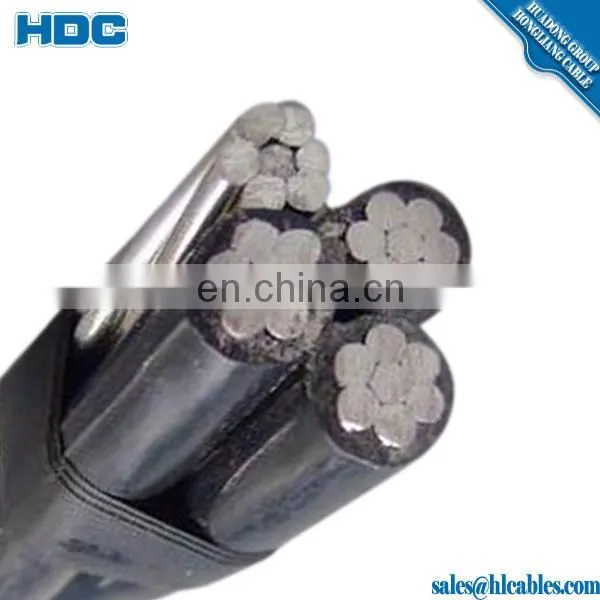

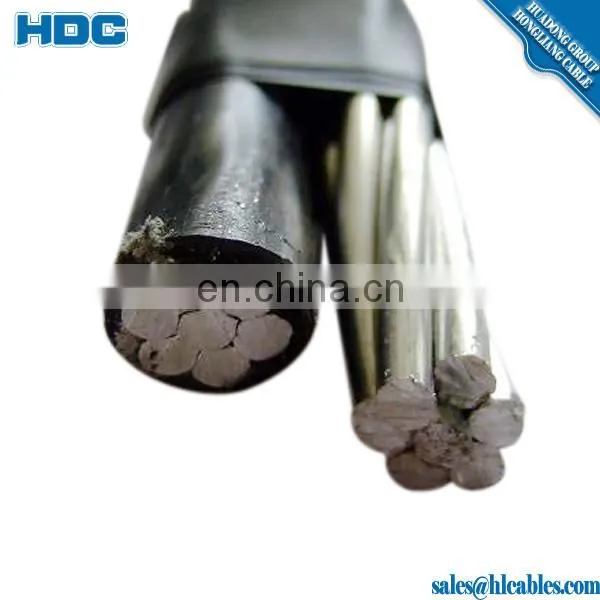

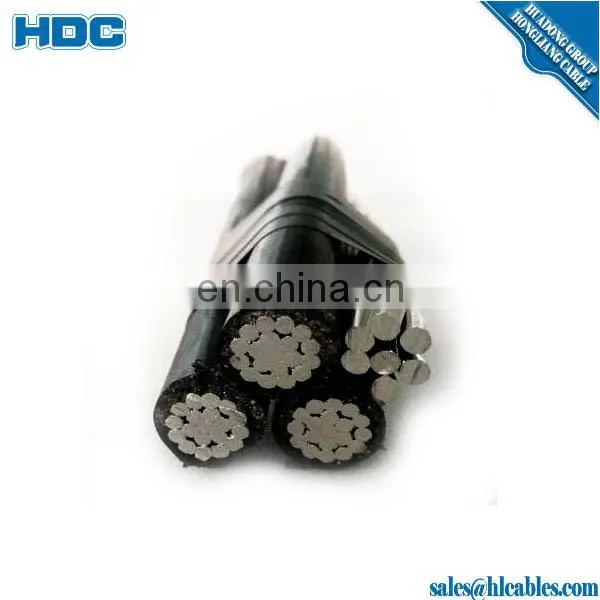

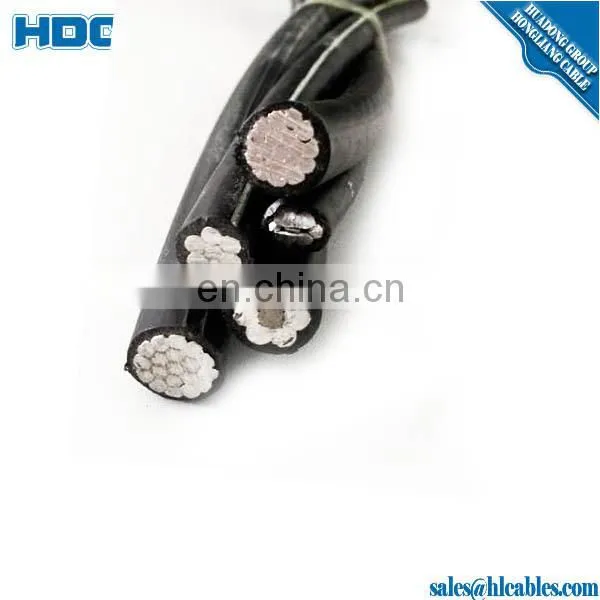

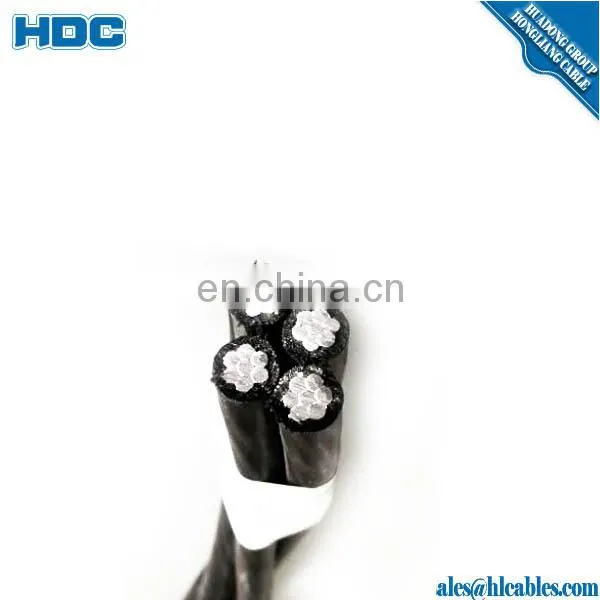

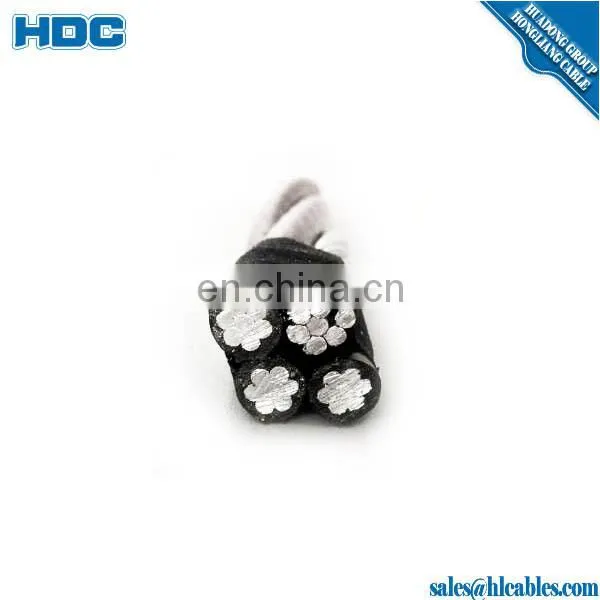

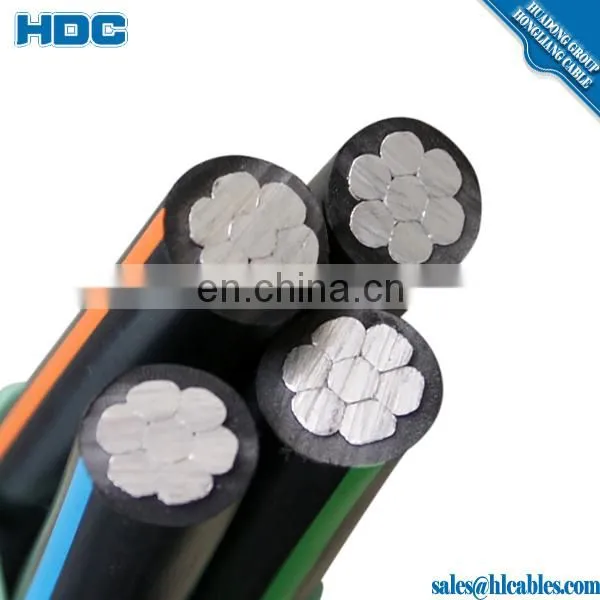

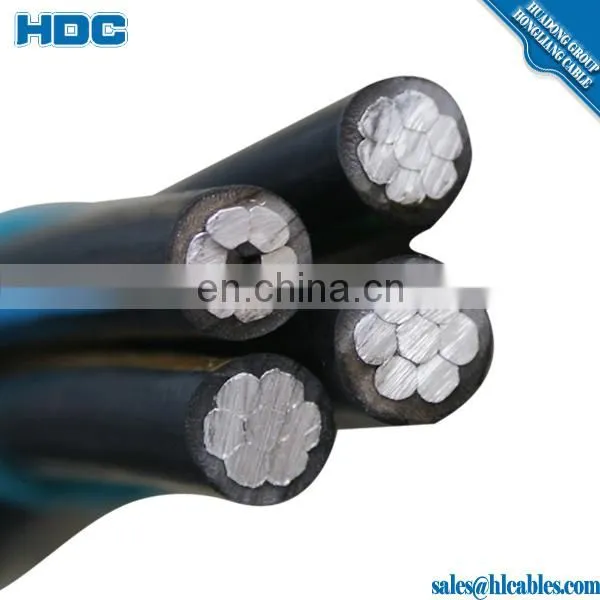

Item name: ALUMINUM TRIPLEX CABLE # 4, ALUMINUM CONDUCTORS GRADE EC 1350 WITH LDPE (LOW DENSITY POLYETHYLENE).
1,0.6/1KV.
2. Conductor: Pure annealed copper or aluminum.
3. Insulation: XLPE/PE/PVC.
4. Cores: 1 C, 2C, 3C, 4C.
5. Nominal Cross-section: 10mm2 to 400mm2.
6. Standard: GB/T 14049-2008 IEC 60502.
7. Max. Operating Temperature: XLPE/PE: 90 °C , PVC : 70 °C .
8. Type: ABC Cable, JKTRYJ, JKLYJ,JKTRY, JKLY, JKLGYJ, JKLGY, JKLYJ/Q, JKLY/Q, JKLGYJ/Q, JKLGY/Q.
9.Packing: Wooden Drum or according to the customer requirement.
10.Remark: The cable can be of flame retardant, fire resistance and other property.
Used to supply power,usually from a pole-mounted transformer, to the user's service head where connection to the service entrance.To be used at 600V or less phase to phase and at conductor temperatures not to exceed 75°C for polyethy insulated or 90°C for crosslinked.
ABC cable RZ AL 2x16mm2 2x50mm2 230VAC.
16 mm 2 * 2C |
( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 |
|
16 mm 2 * 4C |
3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70 |
|
25 mm 2 * 2C |
( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 |
|
25 mm 2 * 4C |
3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12 |
|
35 mm 2 * 2C |
( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 |
|
35 mm 2 * 4C |
3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50 |
|
50 mm 2 * 2C |
( AL19/1.78+PE O.D.11.7) + AL19/1.78 |
|
50 mm 2 * 4C |
3*(AL19/1.78+PE O.D.11.7) + AL19/1.78 |
|
70 mm 2 * 2C |
( AL19/2.12+PE O.D.13.5) + AL19/2.12 |
|
70 mm 2 * 4C |
3*(AL19/2.12+PE O.D.13.5) + AL19/2.12 |
|
95 mm 2 * 2C |
( AL19/2.50+PE O.D.15.8) + AL19/2.50 |
|
95 mm 2 * 4C |
3*(AL19/2.50+PE O.D.15.8) + AL19/2.50 |
|
ALUMINUM TRIPLEX CABLE # 4, ALUMINUM CONDUCTORS GRADE EC 1350 WITH LDPE (LOW DENSITY POLYETHYLENE).
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
ALUMINUM TRIPLEX CABLE # 4, ALUMINUM CONDUCTORS GRADE EC 1350 WITH LDPE (LOW DENSITY POLYETHYLENE).
Henan Huadong Cable is a joint stock enterprise integrated incable production, research & development, and domestic& international trade.
Established year: 1988.
Total asset: USD 32million.
Plant area: 30000m2
Number of staff: 380.
Engineer:20.
Laboratory Inspector: 18.
Production line: 18.
Testing machine:25.
Producing capacity each year: 320000 km.
ALUMINUM TRIPLEX CABLE # 4, ALUMINUM CONDUCTORS GRADE EC 1350 WITH LDPE (LOW DENSITY POLYETHYLENE) Standard:
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
ALUMINUM TRIPLEX CABLE # 4, ALUMINUM CONDUCTORS GRADE EC 1350 WITH LDPE (LOW DENSITY POLYETHYLENE) Certification:
The company has passed ISOquality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation
of Urban and Rural Power Grid Construction.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
