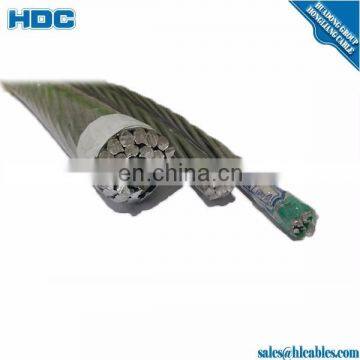

ACSR 95/15 with Grease Bare Aluminum Conductor Steel Reinforced ACSR 95/15 120/20 185/30 240/40
1.Applications:
Stranded 1350 aluminum conductors:
Class AA: for bare conductors usually used in overhead lines.
Class A: for conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
2.Construction:
Aluminum 1350-H19 wires, concentrically stranded.
3.Specifications:
AAC bare conductors meet or exceed the following ASTM specifications:
B-230 aluminum wires, 1350-H19 for electrical purpose
B-231 aluminum conductors, concentrically lay-stranded
B-400 compact round concentric-lay-stranded aluminum 1350 conductors
4.SPECIFICATION
| AREA | STRANDING AND WIRE DIAMETER | OVERALL DIAMETER | WEIGHT |
| 16 | 7/1.70 | 5.10 | 43.70 |
| 25 | 7/2.14 | 6.45 | 69.60 |
| 35 | 7/2.52 | 7.50 | 96.10 |
| 50 | 19/1.83 | 9.00 | 137.50 |
| 70 | 19/2.17 | 10.80 | 193.40 |
| 95 | 19/2.50 | 12.48 | 256.70 |
| 100 | 19/2.59 | 13.00 | 276.00 |
| 120 | 19/2.80 | 14.25 | 322.00 |
| 150 | 37/2.25 | 15.75 | 407.40 |
| 185 | 37/2.50 | 17.50 | 503.00 |
| 210 | 19/3.75 | 18.75 | 577.40 |
| 240 | 61/2.25 | 20.00 | 656.90 |
| 300 | 61/2.50 | 22.40 | 820.40 |
ACSR 95/15 with Grease Bare Aluminum Conductor Steel Reinforced ACSR 95/15 120/20 185/30 240/40
ACSR 95/15 with Grease Bare Aluminum Conductor Steel Reinforced ACSR 95/15 120/20 185/30 240/40
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
ACSR 95/15 with Grease Bare Aluminum Conductor Steel Reinforced ACSR 95/15 120/20 185/30 240/40
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
ACSR 95/15 with Grease Bare Aluminum Conductor Steel Reinforced ACSR 95/15 120/20 185/30 240/40
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
AWG 4/0 All Aluminum Conductor AAC Conductor Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
AWG 4/0 All Aluminum Conductor AAC Conductor Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the
Transformation of Urban and Rural Power Grid Construction.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
