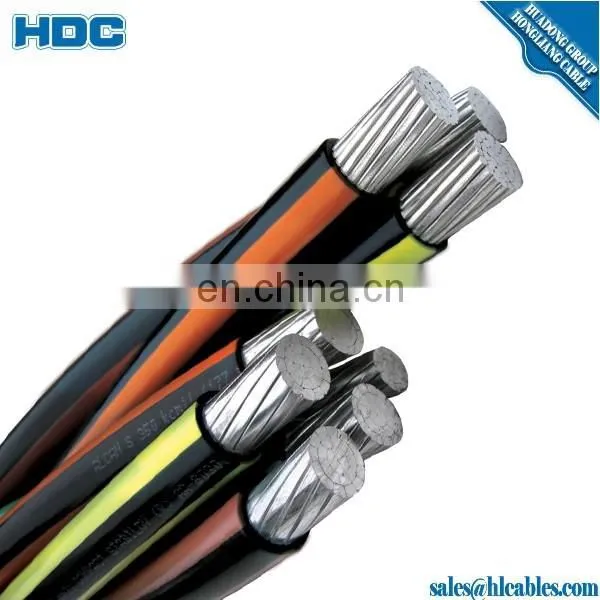

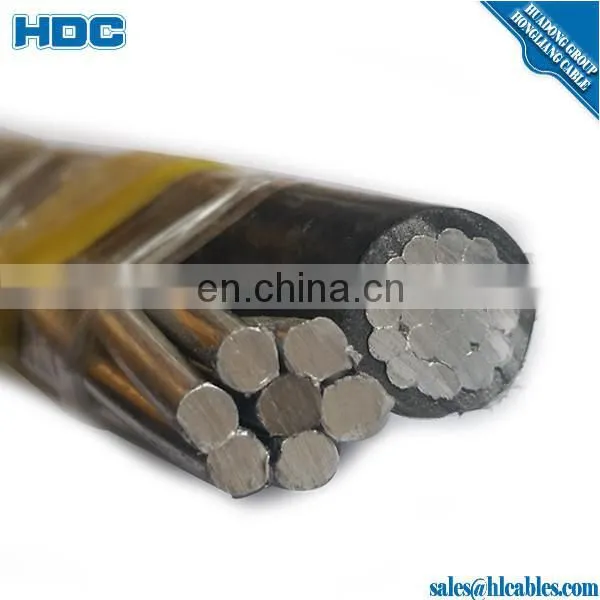

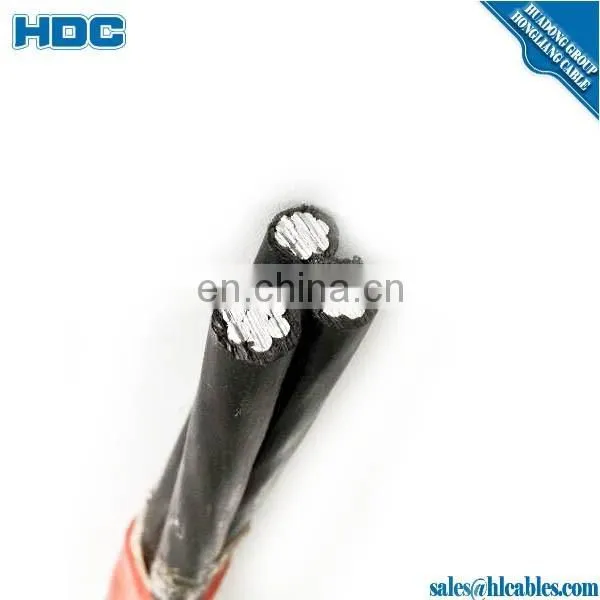

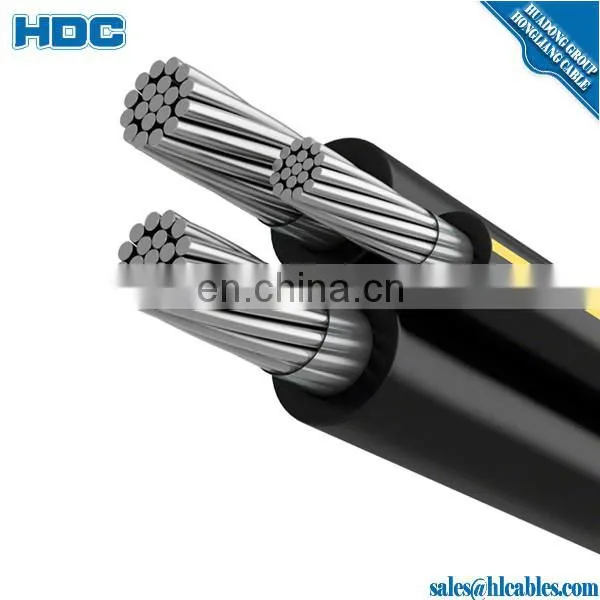

Item name: LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum conductor XLPE insulated alloy messenger 16 -120mm2
Application
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.
It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
Caledonian LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.
This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.
Standard

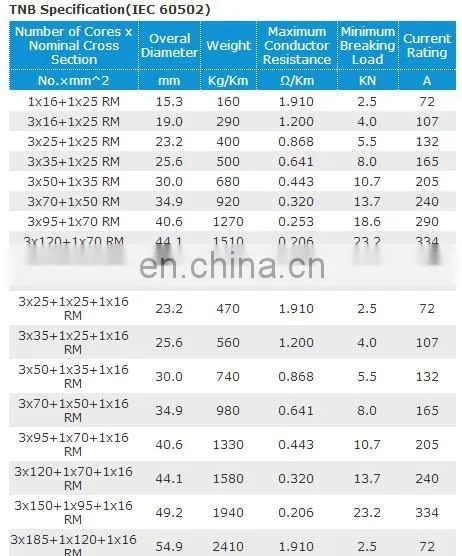

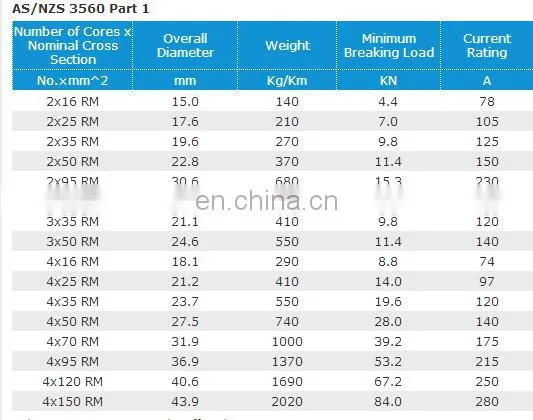

Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards
Construction
|
| Conductor | Aluminium conductor, round stranded compressed (RM). |
| Insulation | XPLE compound, UV-resistant. |
| Core Identification | 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth. |
Electrical Properties
| Rated Voltage | 0.6/1kV |
| Test Voltage | 4 Veff kV |
| Minimum Laying Temperature | -20°C |
| Operating Temperature | -40°C~ +90°C |
| Maximum Short-circuit Temperature | 250°C |
| Maximum Conductor Temperature | 80°C |
| Minimum Bending Radius | 18×OD |
Construction Parameters
BS 7870
| Number of Cores x Nominal Cross Section | Overall Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
|---|---|---|---|---|---|
| No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
| 1x16 RM | 8.0 | 74 | 1.910 | 2.5 | 72 |
| 1x25 RM | 9.0 | 106 | 1.200 | 4.0 | 107 |
| 1x35 RM | 10.5 | 138 | 0.868 | 5.5 | 132 |
| 1x50 RM | 11.8 | 182 | 0.641 | 8.0 | 165 |
| 1x70 RM | 13.0 | 252 | 0.443 | 10.7 | 205 |
| 1x95 RM | 15.4 | 333 | 0.320 | 13.7 | 240 |
| 1x120 RM | 17.0 | 408 | 0.253 | 18.6 | 290 |
| 1x150 RM | 19.0 | 502 | 0.206 | 23.2 | 334 |
| 1x185 RM | 21.0 | 611 | 0.164 | 28.7 | 389 |
| 1x240 RM | 24.0 | 801 | 0.125 | 37.2 | 467 |
| 2x16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
| 2x25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
| 2x35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
| 2x50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
| 2x70 RM | 25.4 | 505 | 0.443 | 10.7 | 205 |
| 2x95 RM | 30.3 | 666 | 0.320 | 13.7 | 240 |
| 2x150 RM | 38.0 | 1004 | 0.206 | 23.2 | 334 |
| 4x16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
| 4x25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
| 4x35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
| 4x50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
| 4x70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
| 4x95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
| 4x120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
| 4x50 + 1x25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
| 4x50 + 1x35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
| 4x70 + 1x25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
| 4x70 + 2x25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
| 4x95 + 1x25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
| 4x95 + 2x25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
| 4x120 + 1x25 RM | 59.0 | 2050 | 0.253/1.200 | 18.6/4.0 | 290/107 |
HD 626 S1
| number of cores x nominal cross section | outer diameter | total weight | max. conductor- resistance | min. breaking load of conductor strand | current rating in the air 1) |
|---|---|---|---|---|---|
| mm^2 | ca. mm | ca. kg/km | Ohm/km | kN | A |
| 2x 16 RM | 15.6 | 147 | 1.910 | 2.5 | 72 |
| 2x 25 RM | 18.0 | 208 | 1.200 | 4.0 | 107 |
| 2x 35 RM | 20.0 | 277 | 0.868 | 5.5 | 132 |
| 2x 50 RM | 23.5 | 361 | 0.641 | 8.0 | 165 |
| 4x 16 RM | 18.8 | 286 | 1.910 | 2.5 | 72 |
| 4x 25 RM | 21.2 | 430 | 1.200 | 4.0 | 107 |
| 4x 35 RM | 24.1 | 553 | 0.868 | 5.5 | 132 |
| 4x 50 RM | 27.8 | 746 | 0.641 | 8.0 | 165 |
| 4x 70 RM | 31.8 | 1009 | 0.443 | 10.7 | 205 |
| 4x 95 RM | 37.8 | 1332 | 0.320 | 13.7 | 240 |
| 4x 120 RM | 54.4 | 1632 | 0.253 | 18.6 | 290 |
| 4x 35 + 1x 35 RM | 30.0 | 694 | 0.868/0.868 | 5.5/5.5 | 132/132 |
| 4x 50 + 1x 25 RM | 31.9 | 814 | 0.641/1.200 | 8.0/4.0 | 165/107 |
| 4x 50 + 1x 35 RM | 31.9 | 845 | 0.641/0.868 | 8.5/5.5 | 165/132 |
| 4x 70 + 1x 25 RM | 36.0 | 1105 | 0.443/1.200 | 10.7/4.0 | 205/107 |
| 4x 70 + 2x 25 RM | 40.0 | 1217 | 0.443/1.200 | 10.7/4.0 | 205/107 |
| 4x 70 + 1x 35 RM | 36.2 | 1150 | 0.443/0.868 | 10.7/5.5 | 205/132 |
| 4x 70 + 2x 35 RM | 40.1 | 1289 | 0.443/0.868 | 10.7/5.5 | 205/132 |
| 4x 95 + 1x 25 RM | 41.8 | 1438 | 0.320/1.200 | 13.7/4.0 | 240/107 |
| 4x 95 + 1x 35 RM | 41.8 | 1467 | 0.320/0.868 | 13.7/5.5 | 240/132 |
| 4x 95 + 2x 25 RM | 42.0 | 1544 | 0.320/1.200 | 13.7/4.0 | 240/107 |
Other cross-sections can be offered upon request.
NFC 33-209
| Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
|---|---|---|---|---|---|
| No.×mm^2 | mm | Kg/Km | Ω/Km | KN | A |
| 2x10 RM | 12.8 | 93 | 3.080 | 1.5 | 38 |
| 4x10 RM | 15.4 | 183 | 3.080 | 1.5 | 38 |
| 2x16 RM | 14.8 | 129 | 1.910 | 2.3 | 72 |
| 2x16 RN + 2x1.5 RE | 14.8 | 176 | 1.910/12.100 | 2.3 | 72 |
| 4x16 RM | 17.8 | 257 | 1.910 | 2.3 | 72 |
| 4x16 RN + 2x1.5 RE | 17.8 | 304 | 1.910/12.100 | 2.3 | 72 |
| 2x25 RM | 18.0 | 202 | 1.200 | 3.8 | 107 |
| 2x25 RM + 2x1.5 RE | 18.0 | 249 | 1.200/12.100 | 3.8 | 107 |
| 4x25 RM | 21.7 | 404 | 1.200 | 3.8 | 107 |
| 4x25 RM + 2x1.5 RE | 21.7 | 451 | 1.200/12.100 | 3.8 | 107 |
| 2x35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
| 2x35 RM + 2x1.5 RE | 20.8 | 316 | 0.868/12.100 | 5.2 | 132 |
| 4x35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
| 4x35 RM + 2x1.5 RE | 25.1 | 586 | 0.868/12.100 | 5.2 | 132 |
| 2x50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
| 2x50 RM + 2x1.5 RE | 23.4 | 399 | 0.641/12.100 | 7.6 | 165 |
| 1x54.6 RM + 3x25 RM | 21.7 | 507 | 0.630/1.200 | 3.8 | 107 |
| 1x54.6 RM + 3x25 RM + 1x16 RM | 24.3 | 573 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1x54.6 RM + 3x25 RM + 2x16 RM | 29.7 | 639 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1x54.6 RM + 3x25 RM + 3x16 RM | 31.1 | 705 | 0.630/1.200/1.910 | 3.8/2.3 | 107/72 |
| 1x54.6 RM + 3x35 RM | 25.1 | 615 | 0.630/0.868 | 5.2 | 132 |
| 1x54.6 RM + 3x35 RM + 1x16 RM | 28.1 | 680 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1x54.6 RM + 3x35 RM + 2x16 RM | 34.3 | 748 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1x54.6 RM + 3x35 RM + 3x16 RM | 35.9 | 814 | 0.630/0.868/1.910 | 5.2/2.3 | 132/72 |
| 1x54.6 RM + 3x35 RM + 1x25 RM | 28.1 | 714 | 0.630/0.868/1.200 | 5.2/3.8 | 132/107 |
| 1x54.6 RM + 3x50 RM | 28.2 | 741 | 0.630/0.641 | 7.6 | 165 |
| 1x54.6 RM + 3x50 RM + 1x16 RM | 31.6 | 806 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1x54.6 RM + 3x50 RM + 2x16 RM | 38.6 | 875 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1x54.6 RM + 3x50 RM + 3x16 RM | 40.4 | 940 | 0.630/0.641/1.910 | 7.6/2.3 | 165/72 |
| 1x54.6 RM + 3x50 RM + 1x25 RM | 31.6 | 841 | 0.630/0.641/1.200 | 7.6/3.8 | 165/107 |
| 1x54.6 RM + 3x70 RM | 33.0 | 950 | 0.630/0.443 | 10.2 | 205 |
| 1x54.6 RM + 3x70 RM + 1x16 RM | 37.0 | 1014 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1x54.6 RM + 3x70 RM + 2x16 RM | 45.2 | 1083 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1x54.6 RM + 3x70 RM + 3x16 RM | 47.3 | 1148 | 0.630/0.443/1.910 | 10.2/2.3 | 205/72 |
| 1x54.6 RM + 3x70 RM + 1x25 RM | 37.0 | 1048 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1x54.6 RM + 3x70 RM + 2x25 RM | 45.2 | 1150 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1x54.6 RM + 3x70 RM + 3x25 RM | 47.3 | 1250 | 0.630/0.443/1.200 | 10.2/3.8 | 205/107 |
| 1x54.6 RM + 3x95 RM | 37.4 | 1176 | 0.630/0.320 | 13.5 | 240 |
| 1x54.6 RM + 3x95 RM + 1x16 RM | 41.9 | 1243 | 0.630/0.320/1.910 | 13.5/2.3 | 240/72 |
LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum conductor XLPE insulated alloy messenger 16 -120mm2
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2) Outer packing: wooden case, carton box.
3) Other packing requirement according to client's request.
LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum conductor XLPE insulated alloy messenger 16 -120mm2
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,
and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km.
LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum conductor XLPE insulated alloy messenger 16 -120mm2 Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum conductor XLPE insulated alloy messenger 16 -120mm2 Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical
Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the
Transformation of Urban and Rural Power Grid Construction.
LV Aerial Bundled Conductor NFA2X-T Overhead Cable 0.6/1kv All Aluminum condcutor XLPE insulated alloy messenger 16 -120mm2
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
