Huadong Bare Cable Manufacturer Aluminium Alloy Wire Conductor AAAC Conductor
US$ 0.1 - 50
/ Meter
500 Meters(Min. Order)
- AAAC MOOSE CONDUCTOR can be Qingddao/Shanghai/Tianjin/Ningbo
- T/T Credit Card
You May Like
-
600V Triplex Aerial Bundle AAC WIRE 4AWG ABC Overhead Cable
-
Huadong AAAC Aluminium Conduct Electricity Wire for Bare Conductor Projects
-
Huadong Overhead Bare All Aluminum Alloy Conductor Aaac Conductor With BS ASTM
-
Huadong Various Specification Aluminum Conductive Materials AAAC Cable Wire Manufacturers
-
Huadong Overhead Transmission Line Bear All Aluminium Aaac Flint Conductor
-
Huadong Overhead Transmission Line 400 sq mm All Aluminium Alloy Yew AAAC Conductor
Product Details
| Brand Name | Huadong cable Group | Place of Origin | Henan, China | |
| Model Number | aaac, AAAC | |||
Product Description
Product Description

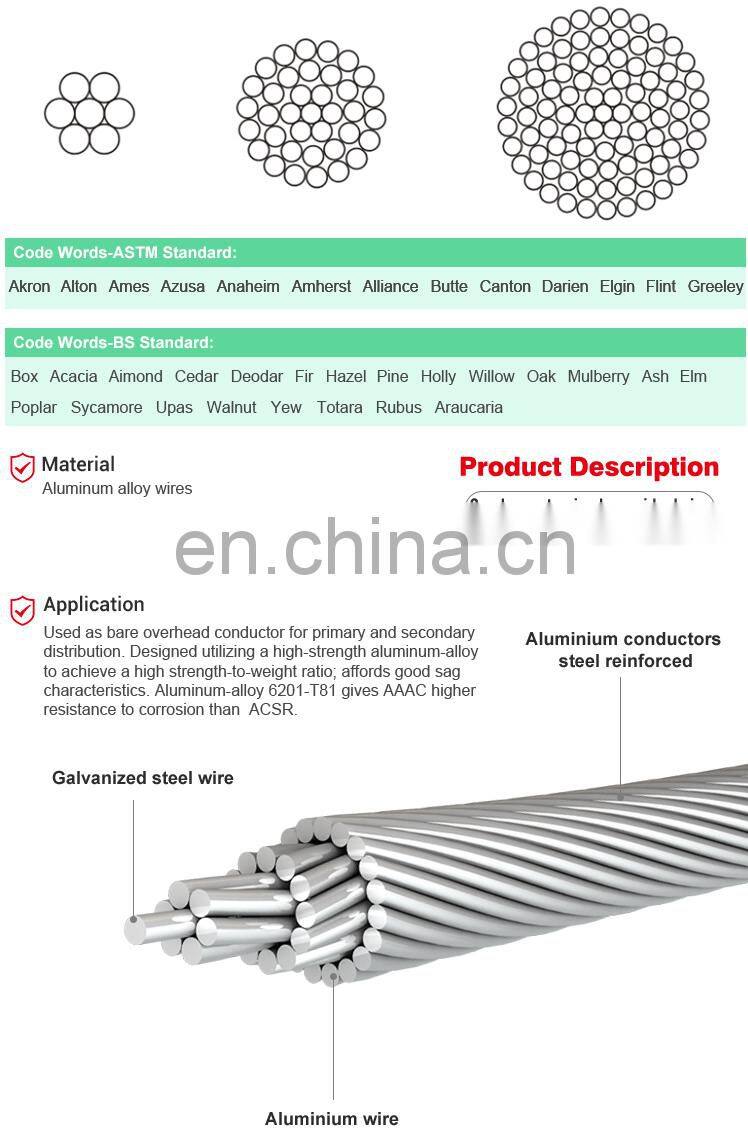

AAAC aluminum alloy conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction. All Aluminum-Alloy Conductors (AAAC) is a concentric-lay-stranded conductor consisting of aluminum -alloy wires available in both single layer and multi-layer constructions.
AAAC Technical characteristics of Canadian
| Conductor size | Stranding | Section area | Diameter of conductor | Linear mass | Rated strength | D.C. resistance at 20℃ | Current Rating |
| MCM | No./mm | mm2 | mm | Kg/km | kgf | Ω/km | A |
| 19 | 7/1.32 | 9.5 | 3.96 | 26 | 290 | 3.416 | 55 |
| 24 | 7/1.48 | 12 | 4.44 | 33 | 360 | 2.71000 | 69 |
| 30 | 7/1.66 | 15.20 | 4.98 | 41.00 | 460 | 2.14800 | 79 |
| 38 | 7/1.86 | 19.10 | 5.58 | 52.00 | 580 | 1.70300 | 93 |
| 48 | 7/2.09 | 24.10 | 6.27 | 66.00 | 730 | 1.35200 | 108 |
| 60 | 7/2.35 | 30.40 | 7.05 | 83.00 | 920 | 1.07200 | 126 |
| 76 | 7/2.64 | 38.30 | 7.92 | 105.00 | 1160 | 0.84940 | 139 |
| 95 | 7/2.96 | 48.30 | 8.88 | 132.00 | 1470 | 0.67420 | 161 |
| 120 | 7/3.33 | 61.00 | 9.99 | 166.00 | 1850 | 0.53440 | 186 |
| 152 | 7/3.74 | 76.80 | 11.22 | 210.00 | 2330 | 0.42380 | 211 |
| 192 | 7/4.20 | 97.00 | 12.60 | 265.00 | 2940 | 0.33550 | 242 |
| 241 | 7/4.72 | 122.30 | 14.15 | 334.00 | 3710 | 0.26660 | 276 |
| 241.0 | 19/2.86 | 122.30 | 14.30 | 335.00 | 3710 | 0.26780 | 280 |
| 304.0 | 19/3.21 | 154.10 | 16.05 | 423.00 | 4670 | 0.21250 | 321 |
| 342.0 | 19/3.41 | 173.40 | 17.05 | 475.00 | 5260 | 0.18890 | 343 |
| 384.0 | 19/3.61 | 194.40 | 18.05 | 533.00 | 5890 | 0.16840 | 369 |
| 453.0 | 19/3.92 | 229.70 | 19.60 | 629.00 | 6970 | 0.14230 | 404 |
| 544.0 | 19/4.30 | 275.70 | 21.50 | 756.00 | 8360 | 0.11870 | 451 |
| 570.0 | 37/3.15 | 288.80 | 22.05 | 796.00 | 8760 | 0.11370 | 464 |
| 635.0 | 37/3.33 | 321.50 | 23.31 | 885.00 | 9740 | 0.10260 | 497 |
| 725.0 | 37/3.56 | 367.40 | 24.92 | 1012.00 | 11140 | 0.08950 | 533 |
| 816.0 | 37/3.77 | 413.50 | 26.39 | 1140.00 | 12540 | 0.07950 | 577 |
| 856.0 | 37/3.86 | 433.70 | 27.02 | 1195.00 | 13140 | 0.07580 | 594 |
| 907.0 | 37/3.98 | 459.40 | 27.86 | 1266.00 | 13920 | 0.07140 | 614 |
| 997.0 | 37/4.16 | 505.20 | 29.12 | 1391.00 | 15320 | 0.06500 | 648 |
