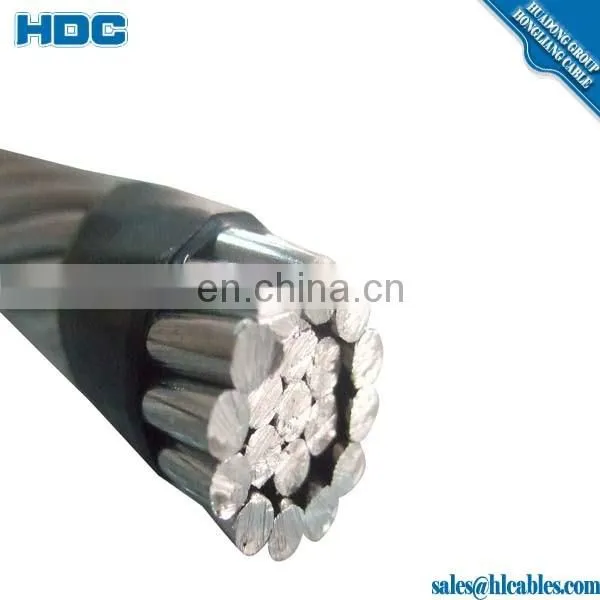

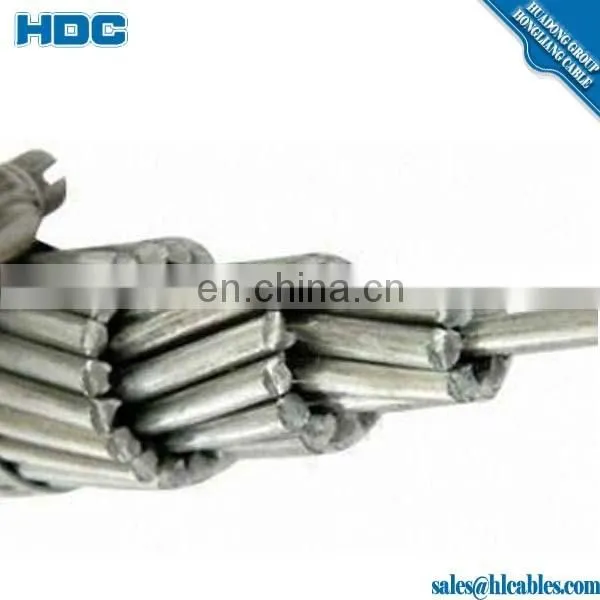

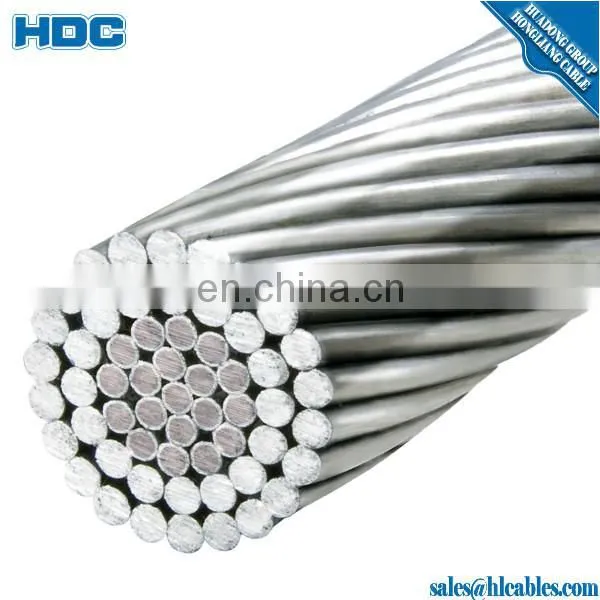

item name:conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
Construction
1. Conductor: aluminum conductor steel Reinforced
2. Sectional area:266.8 MCM
3. Tensile strength of individual wire: 160~200 MPa
4. Elongation at break: 1.5%~2.3%
5. No. of strands: 7, 19, 37, 61, 91
6. Sectional area: 10~1500mm2

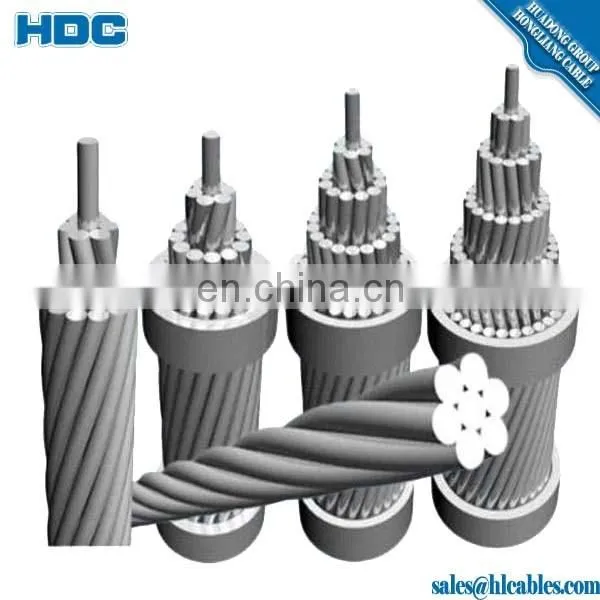

7. Consutruction: concentrically stranded round conductor
8. Min. bending radius: 30 times cable radius
9. Conductivity: 61% IACS
| Nominal Sectional area | Sectional area | stranding | overall diameter | weight | Breaking Load | Electrical Resistance@20° | current Rating * | ||||
| AL | steel | ||||||||||
| Al | steel | AL | steel | Total | |||||||
| mm2 | mm2 | mm2 | mm2 | mm2 | No.xmm | No.xmm | mm | kg/km | KN | Ω/Km | A |
| 16 | 2.5 | 15.27 | 2.54 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 62 | 5.81 | 1.8793 | 83 |
| 25 | 4 | 23.86 | 3.98 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 97 | 9.02 | 1.2028 | 109 |
| 35 | 6 | 34.35 | 5.73 | 40.1 | 6/2.70 | 1/2.70 | 8.1 | 140 | 12.7 | 0.8353 | 136 |
| 44 | 32 | 43.98 | 31.67 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 373 | 45.46 | 0.6573 | 166 |
| 50 | 8 | 48.25 | 8.04 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 196 | 17.18 | 0.5946 | 168 |
| 50 | 30 | 51.17 | 29.85 | 81 | 12/2.33 | 7/2.33 | 11.7 | 378 | 44.28 | 0.5644 | 181 |
| 70 | 12 | 69.89 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 284 | 26.31 | 0.413 | 211 |
| 95 | 15 | 94.39 | 15.33 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 383 | 35.17 | 0.3058 | 254 |
| 95 | 55 | 96.51 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16 | 714 | 80.2 | 0.2992 | 267 |
| 105* | 75 | 105.67 | 75.55 | 181.2 | 14/3.10 | 19/2.25 | 17.5 | 899 | 106.69 | 0.2736 | 284 |
| 120 | 20 | 121.57 | 19.85 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 494 | 44.94 | 0.2374 | 297 |
| 120 | 70 | 122.15 | 71.25 | 193.4 | 12/3.60 | 7/3.60 | 18 | 904 | 98.16 | 0.2364 | 308 |
| 125 | 30 | 127.92 | 29.85 | 157.8 | 30/2.33 | 7/2.33 | 16.3 | 590 | 57.86 | 0.2259 | 308 |
| 150 | 25 | 148.86 | 24.25 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 604 | 54.37 | 0.1939 | 336 |
| 170 | 40 | 171.77 | 40.08 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 794 | 77.01 | 0.1682 | 369 |
| 185 | 30 | 183.78 | 29.85 | 213.6 | 26/3.00 | 7/2.33 | 19 | 744 | 66.28 | 0.1571 | 382 |
| 210 | 35 | 209.1 | 34.09 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 848 | 74.94 | 0.138 | 414 |
| 210 | 50 | 212.06 | 49.48 | 261.5 | 30/3.00 | 7/3.00 | 21 | 979 | 92.25 | 0.1363 | 420 |
| 230 | 30 | 230.91 | 29.85 | 260.8 | 24/3.50 | 7/2.33 | 21 | 874 | 73.09 | 0.1249 | 438 |
| 240 | 40 | 243.05 | 39.49 | 282.5 | 26/3.45 | 7/2.68 | 21.8 | 985 | 86.46 | 0.1188 | 453 |
| 265 | 35 | 263.66 | 34.09 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 998 | 82.94 | 0.1094 | 475 |
| 300 | 50 | 304.26 | 49.48 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 1233 | 105.09 | 0.0949 | 520 |
| 305 | 40 | 304.62 | 39.49 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 1155 | 99.3 | 0.0949 | 518 |
| 340 | 30 | 339.29 | 29.85 | 369.1 | 48/3.00 | 7/2.33 | 25 | 1174 | 92.56 | 0.0851 | 551 |
| 380 | 50 | 381.7 | 49.48 | 431.2 | 54/3.00 | 7/3.00 | 27 | 1448 | 120.91 | 0.0757 | 593 |
| 385 | 35 | 386.04 | 34.09 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1336 | 104.31 | 0.0748 | 595 |
| 435 | 55 | 434.29 | 56.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1647 | 136.27 | 0.0666 | 641 |
| 450 | 40 | 448.71 | 39.49 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1553 | 120.19 | 0.0644 | 651 |
| 490 | 65 | 490.28 | 63.55 | 553.8 | 54/3.40 | 7/3.40 | 30.6 | 1860 | 152.85 | 0.059 | 689 |
| 550 | 70 | 549.65 | 71.25 | 620.9 | 54/3.60 | 7/3.60 | 32.4 | 2085 | 167.42 | 0.0526 | 737 |
| 560 | 50 | 561.7 | 49.48 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1943 | 146.28 | 0.0514 | 744 |
| 680* | 85 | 678.58 | 85.95 | 764.5 | 54/4.00 | 19/2.40 | 36 | 2564 | 209.99 | ||
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request..
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
266.8 mcm acsr bare conductor.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.
Meanwhile we can produce based on customers' requirements and specifications.
266.8 mcm acsr bare conductor
company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product
Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban
and Rural Power Grid Construction.
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
conductor partridge 266.8 mcm acsr 26/7 AL/steel wire bare conductor.
