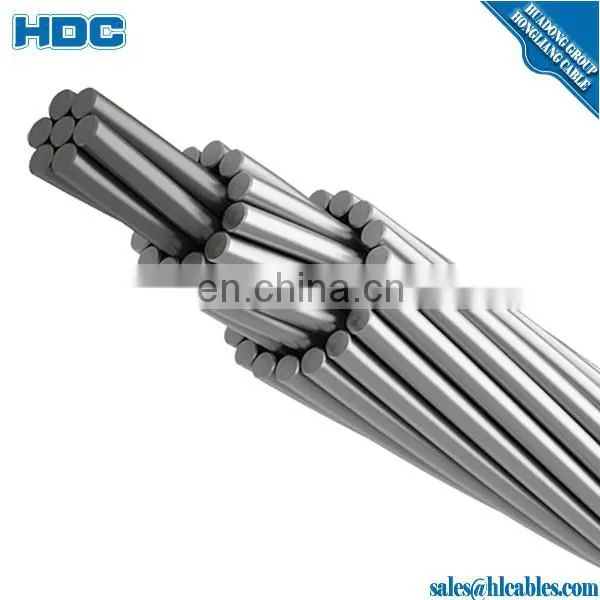

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size Factory Price photo-4
GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size Factory Price photo-5
GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size Factory Price photo-6
US$ 1 - 99 MOQ: 200 Meters
Key Specifications
Get Latest Price
Brand Name:
Huadong
Place of Origin:
Henan, China
Model Number:
ACSR wire, ACSR 300/39
Contact Supplier Request Quote Chat Now
Henan Donghua Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingddao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Huadong
Place of Origin Henan, China
Model Number ACSR wire, ACSR 300/39
GOST 839-80  35kV-750kV OHL Conductor  ACSR 300/39 Size factory price
Product Description



ACSR conductors are being used on transmission line networks for all climatic regions as per GOST 15150. The conductors are being manufactured as per GOST 839-80 requirements. ACSR is consisting of steel and aluminum wires. The installation of the conductor has to be done as per PUE requirements. Maximum continous permissible temperature of the conductor should not exceed 90 C.

ACSR Conductors according to GOST 839-80



# Section Aluminum part Steel part Min. Breaking Strength
Number of wires Nom. wire diameter Number of wires Nom. wire diameter
1 16/2.7 6 1.85 mm. 1 1.85 mm. 6,220 N.
2 25/4.2 6 2.30 mm. 1 2.30 mm. 9,296 N.
3 35/6.2 6 2.80 mm. 1 2.80 mm. 13,524 N.
4 50/8.0 6 3.20 mm. 1 3.20 mm. 17,112 N.
5 70/11 6 3.80 mm. 1 3.80 mm. 24,130 N.
6 70/72 18 2,20 mm. 19 2.20 mm. 96,862 N.
7 95/16 6 4.50 mm. 1 4.50 mm. 33,369 N.
8 120/19 26 2.40 mm. 7 1.85 mm. 41,521 N.
9 120/27 30 2.20 mm. 7 2.20 mm. 49,465 N.
10 150/19 24 2.80 mm. 7 1.85 mm. 46,307 N.
11 150/24 26 2.70 mm. 7 2.10 mm. 52,279 N.
12 150/34 30 2.50 mm. 7 2.50 mm. 62,643 N.
13 185/24 24 3.15 mm. 7 2.10 mm. 58,075 N.
14 185/29 26 2.98 mm. 7 2.30 mm. 62,055 N.
15 185/43 30 2.80 mm. 7 2.80 mm. 77,767 N.
16 205/27.0 24 3.30 mm. 7 2.20 mm. 63,740 N.
17 240/32 24 3.60 mm. 7 2.40 mm. 75,050 N.
18 240/39 26 3.40 mm. 7 2.65 mm. 80,895 N.
19 240/56 30 3.20 mm. 7 3.20 mm. 98,253 N.
20 300/39 24 4.00 mm. 7 2.65 mm. 90,574 N.
21 300/48 26 3.80 mm. 7 2.95 mm. 100,623 N.
22 300/204 54 2.65 mm. 37 2.65 mm. 284,579 N.
23 330/43.0 54 2.80 mm. 7 2.80 mm. 103,784 N.
24 400/18 42 3.40 mm. 7 1.85 mm. 85,600 N.
25 400/51 54 3.05 mm. 7 3.05 mm. 120,481 N.
26 400/64 26 4.34 mm. 7 3.40 mm. 129,183 N.
27 400/93 30 4.15 mm. 19 2.50 mm. 173,715 N.
28 500/27 76 2.84 mm. 7 2.20 mm. 112,188 N.
29 500/64 54 3.40 mm. 7 3.40 mm. 148,257 N.
30 600/72 54 3.70 mm. 19 2.20 mm. 183,835 N.

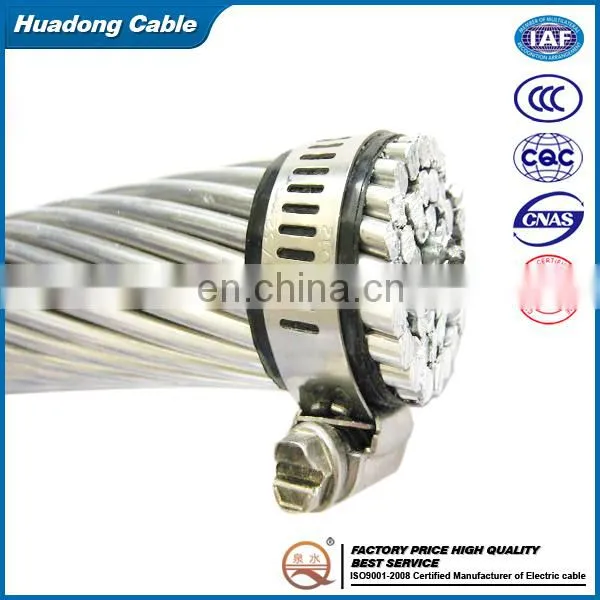

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

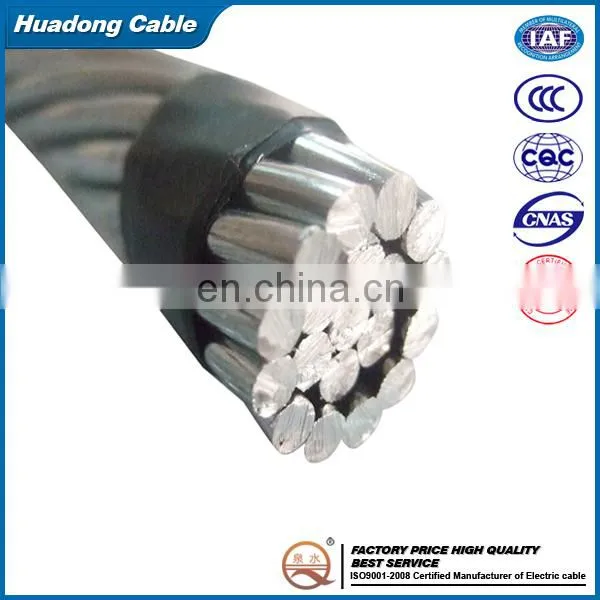

 GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

Packaging & Shipping

Within 15 days

1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory priceGOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

Our Services



1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.



4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

Company Information

Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production, research & development,

and domestic& international trade.

Established year: 1988

Total asset: USD 400 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km.

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

acsr Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.Meanwhile we can produce based on customers' requirements and specifications.

acsr Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National ElectricalProduct Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformationof Urban and Rural Power Grid Construction.

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price

FAQ

1.what is our payment term ?

Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

Sure, we provide the free sample for customer to checking.

GOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory priceGOST 839-80 35kV-750kV OHL Conductor ACSR 300/39 Size factory price
