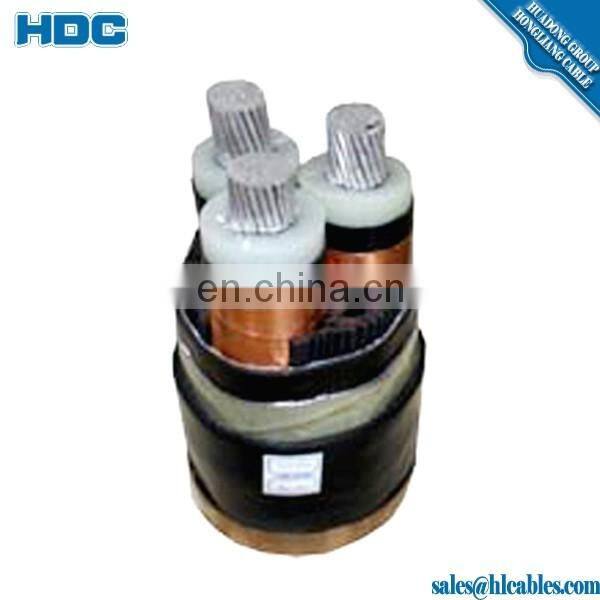

12//20KV Underground Aluminium Cable Xlpe Insulated 185mm2 300mm2 3core Power Cable

Product Description

1.20 years' producing experience;
2.Purity raw materialaa99.99% T2
3.Free sample

4. ISO9002,ISO14000:2004,CCC,ROHS,CRCCCertificate
5. IEC(CB) Standard
6.Response within 12 hours
7. Free Sample.

12//20KV underground Aluminium cable xlpe insulated 185mm2 300mm2 3core power cable.
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:BS6622
Conductor:Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen:Semi-conducting material
Insulation:XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen:Semi-conducting material
Metallic Screen:Individual and overall copper tape screen to BS6622
Filler:PETP (Polyethylene Terephthalate) fibres
Separator:Binding tape
Bedding:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armouring:Single Core: Aluminium Wire Armoured (AWA)

Multi-core: Steel Wire Armoured (SWA)
Sheath:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Colour:Red or Black
Voltage Rating:19000/33000V
Temperature Rating:0°C to +90°C
1 low voltage cable power cable

12//20KV underground Aluminium cable xlpe insulated 185mm2 300mm2 3core power cable.

Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.
2.2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
2.3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

12//20KV underground Aluminium cable xlpe insulated 185mm2 300mm2 3core power cable.

Established year: 1988

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km .

Standard Aluminium 300mm2 3core power cable.

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we  can produce based on customers' requirements and specifications.

Certificate Aluminium 300mm2 3core power cable.

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.

you are welcome at any time .please send me inquiries.

Online: Skype: candy.zhao90
QQ: 2099255911

12//20KV underground Aluminium cable xlpe insulated 185mm2 300mm2 3core power cable.
