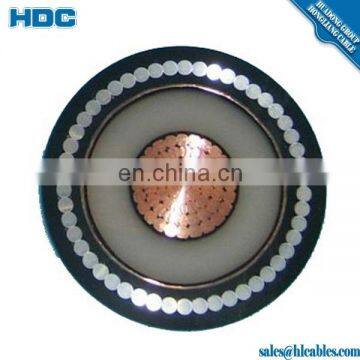

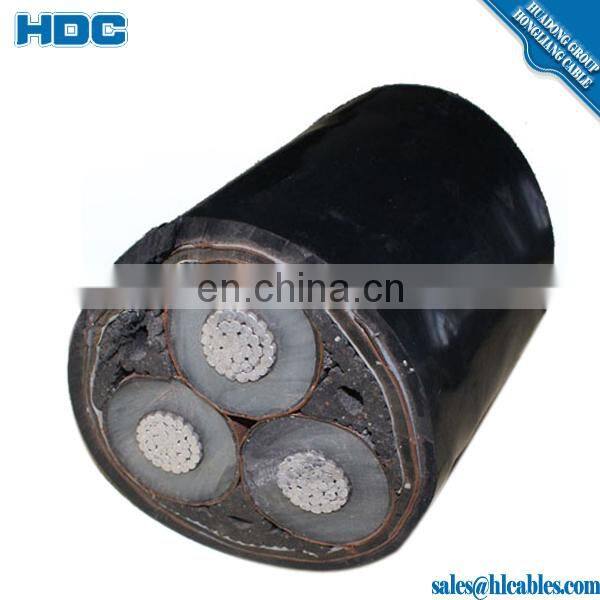

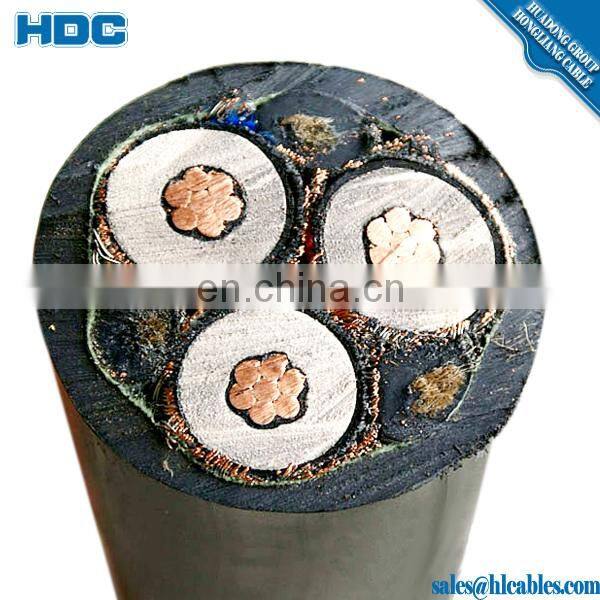

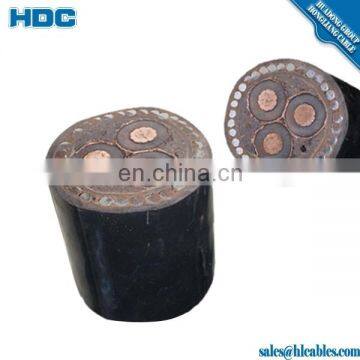

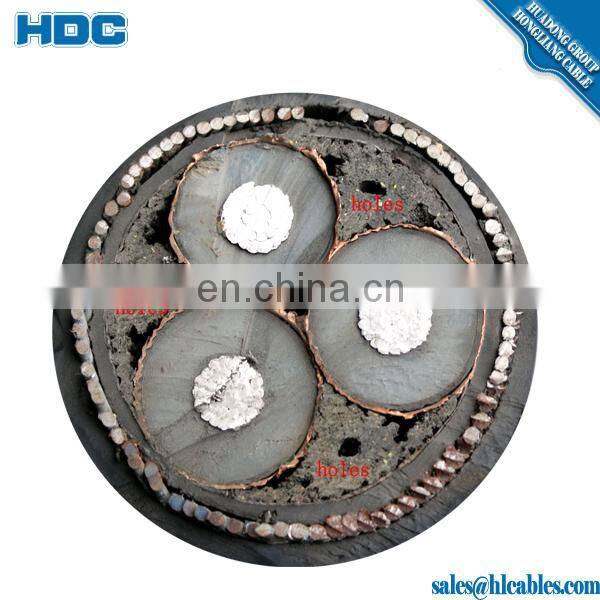

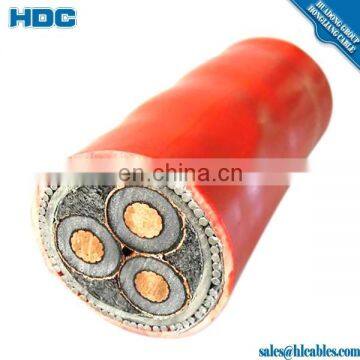

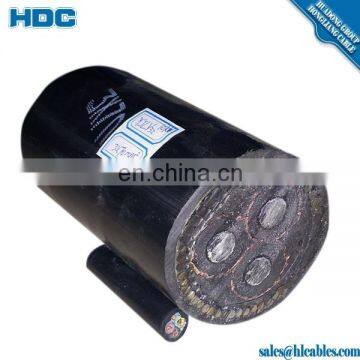

120mm 13.8kv xlpe cable prices 11kv 4 core aluminium swa cable

(br)  120mm 13.8kv xlpe cable prices  11kv 4 core aluminium swa cable.

120mm 13.8kv xlpe cable prices  11kv 4 core aluminium swa cable specification?

1. Uo/U: 450/750V, 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
2. Standard applied: IEC, GB, BS, VDE, AS/NZS or as per requirement
3. Working temperature: 70~125 °C
4. Conductor: solid or stranded pure annealed copper or aluminum
5. Insulation: XLPE or PVC or PE or LSZH
6. Cores: 1~5 cores, 3+1 cores, 3+2 cores, 4+1 cores for low voltage, 1 core or 3 cores for MV power cable
7. Cross section area: 1.0~630 sqmm for single core, 1.0~300 sqmm for multicores
8. Armoure: armore type is optional, SWA (steel wire armored) or STA (steel tape armored) for multicores, AWA (aluminum wire armored) or ATA (aluminum tape armored) for single core
9. Sheath: PVC or PE or Low smoking and halogen free compounding, etc.
10. Color: black or as per requirement
11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available
12. Wooden drum package or as per request
13. OEM can be available
14. BDK cables have very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and 5-star service.

120mm 13.8kv xlpe cable prices  11kv 4 core aluminium swa cable application?

1 low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.

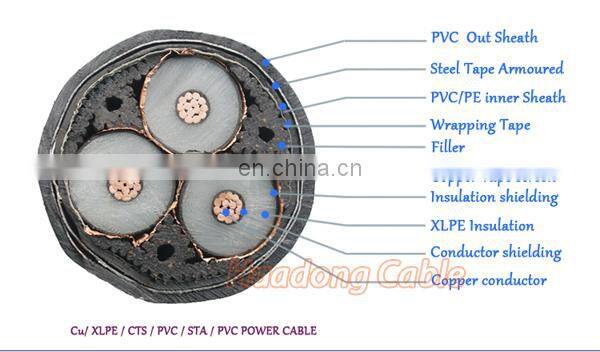

2.2 medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable
2.3 high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

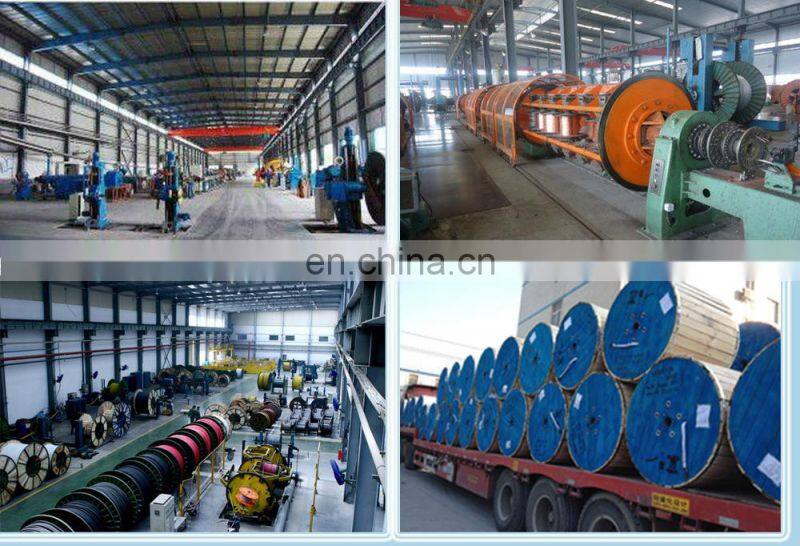

Established year: 2005

Total asset: USD 32 million

Plant area: 30000 m2

Number of staff: 380

Engineer:20

Laboratory Inspector: 18

Production line: 18

Testing machine:25

Producing capacity each year: 320000 km

 Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on.

Meanwhile we can produce based on customers' requirements and specifications.

  Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.

2.what is the lead time ?

  The lead time usually is 10 - 30 working days.

3.what is the package of the cable ?

  The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.

4.Could we provide the free sample for customer ?

  Sure, we provide the free sample for customer to checking.

you are welcome at any time ,please send me inquiries.
