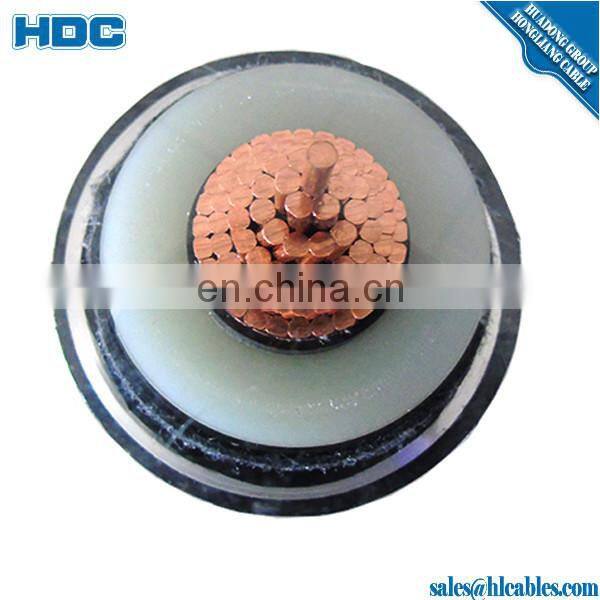

IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable
- 50000 Meter / Meters per Month
- Shanghai Tianjin Qingdao
- T/T Credit Card
-
AD8 Aluminium cable 240 mm2 12/20(24)kv xlpe insulation PVC NFC 33-226 Industrial Application
-
NYY-J NYY-O NYM 300/500V 0.6/1kv 4G 10mm2 16mm2 Flame-retardant VDE Standard Multi-wire bare copper PVC Insulated control cable
-
Power Cable 1/0AWG-3C TECK 90 BC 1KV XLPE INS 1 #6 GRD AIA BLK PVC JKT FT4 CSA
-
UNDERGROUND COPPER WIRE TRIPLEXADO 3 x 50 MM2 EPR FOR 15 KV
-
underground electric wire power cable 4 cores 16mm2 aluminum XLPE Armoured power cable
-
Supply of single core Aluminium cable, size 1000 KCMIL (507 mm2), TRXLPE insulation 35 kV, 133%, Water blocking and 16 mm2 Cu
Product Details
| Brand Name: | Huadong | Place of Origin: | Henan, China | Model Number: | copper core 95 sqmm 70 sqmm cable |
| Type: | High Voltage | Insulation Material: | XLPE | ||
| Jacket: | PVC | Conductor Material: | Copper |
Product Description
Product Description
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
what is armoured cable application?
1.20 years' producing experience;
2.Purity raw materialaa99.99% T2
3.Free sample
4. IEC(CB) Standard
5.Response within 12 hours
6. Free Sample.
| Type | Name
| Application | |
Cu Conductor | Al Conductor | ||
YJV YJY | YJLV YJLV | XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
Power cables for power networks, underground, outdoors and in cable ducting.
Standards:BS6622
Conductor:Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor screen:Semi-conducting material
Insulation:XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
Insulation Screen:Semi-conducting material
Metallic Screen:Individual and overall copper tape screen to BS6622
Filler:PETP (Polyethylene Terephthalate) fibres
Separator:Binding tape
Bedding:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Armouring:Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA)
Sheath:PVC (Polyvinyl Chloride) Type TM1 to BS7655
Colour:Red or Black
Voltage Rating:19000/33000V
Temperature Rating:0°C to +90°C
| 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 | |||
2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 | ||||
1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 | |||
2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / | |||
3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.

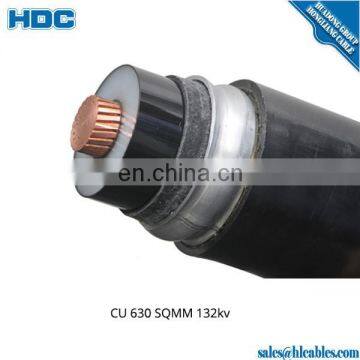

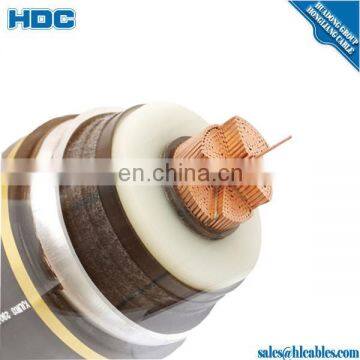

high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force.
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
Advanced connectors & assembly cables machines and testing equipments.
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
Henan Huadong Cable Co., Ltdis a joint stock enterprise integrated incable production, research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km .
power cable Standard standard power cable sizes.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
you are welcome at any time .please send me inquiries.
Online: Skype: candy.zhao90, QQ: 2099255911
IEC high voltage power cables size copper core 95 sqmm 70 sqmm cable.
