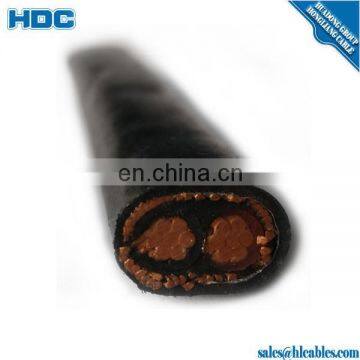

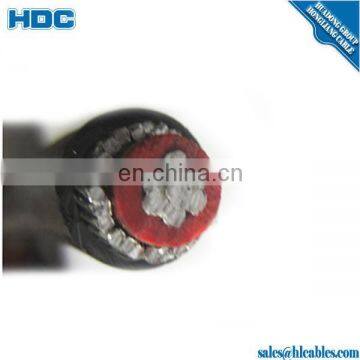

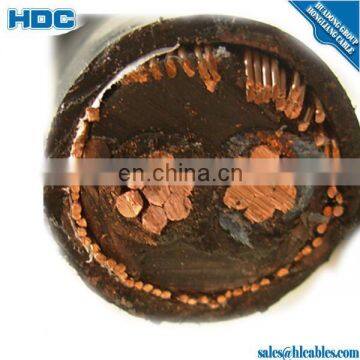

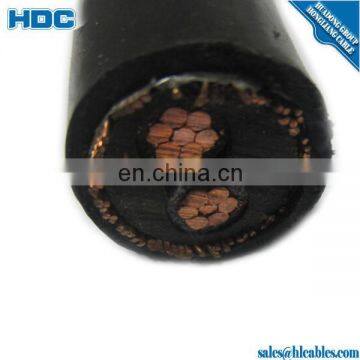

Split Concentric Cable to BS7870 4mm - 35mm copper/Aluminum(Aluminium Alloy-8000) ASTM B801 XLPE/HDPE Insulated PVC sheath

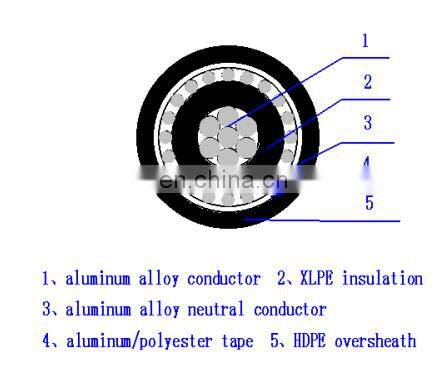

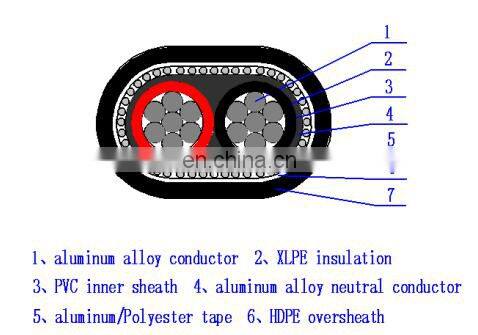

Cable Specification: Split Concentric Cable available is sizes 4mm to 35mm and manufactured to British Standard BS7870. The cable features plain annealed stranded copper phase conductor, XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors. XLPE insulated and plain annealed solid strand bare copper earth conductors, PVC outer sheath. Black. 600/1000 volts grade to BS7870.
Purpose: Split concentric cables are generally used by Distribution Network Operators linking electrical networks and towers to a person’s home or business. Suitable for direct burial, they are also used for sub mains in high rise towers and street lighting systems. The cable consists of a plain annealed stranded copper phase conductor, an XLPE insulation surrounded by a concentric layer of plain annealed solid copper neutral conductors, an XLPE insulated and plain annealed solid strand bare copper earth conductors and a black PVC outer sheath.
Standards: BS7870
Conductor: Plain Annealed Stranded Copper Phase Conductor.
Insulation: XLPE insulated surrounded by a concentric layer of plain annealed solid copper neutral conductors.
Armouring: XLPE Insulated and Plain Annealed Solid Strand Bare Copper Earth Conductors
Sheath: PVC
Sheath Colour: Black
Voltage Rating: 600/1000 Volts
Temperature Rating: -15°C or above +90°C
Should not be installed at temperatures below 0°C or above +60°C
| HL_Code | Conductor Size (mm2) | Stranding(mm) | Weight(Kg/Km) | Overall Diameter(mm) |
|---|---|---|---|---|
| 4SPLITCON | 4 | 7/0.85 | 206 | 9.6 |
| 4MM2 SPLIT CONCENTRIC BS7870/3.2 | ||||
| 6SPLITCON | 6 | 7/1.04 | 281 | 11.4 |
| 6MM2 SPLIT CONCENTRIC BS7870/3.2 | ||||
| 10SPLITCON | 10 | 7/1.35 | 394 | 12.7 |
| 10MM2 SPLIT CONCENTRIC BS7870/3.2 | ||||
| 16SPLITCON | 16 | 7/1.70 | 583 | 14.6 |
| 16MM2 SPLIT CONCENTRIC BS7870/3.2 | ||||
| 25SPLITCON | 25 | *7/2.14 | 843 | 18.7 |
| 25MM2 SPLIT CONCENTRIC BS7870/3.2 | ||||
| 35SPLITCON | 35 | 7/2.52 | 1300 | 23.0 |
Split Concentric Cable to BS7870 4mm - 35mm copper/Aluminum(Aluminium Alloy-8000) ASTM B801 XLPE/HDPE Insulated PVC sheath
1. wooden drum, Iron wooden drum or as your request
2. the long & wide & high of 20 size container:5.95*2.32*2.3 meter.
3. the long & wide & high of 40 size container:11.9*2.32*2.72.
Split Concentric Cable to BS7870 4mm - 35mm copper/Aluminum(Aluminium Alloy-8000) ASTM B801 XLPE/HDPE Insulated PVC sheath
Large production capacity, short delivery.
Strict QC checking before delivery.
OEM/ODM service available, help you on designing.
Prompt quotation for your inquiry.
More than 10 years experiences in cable and wire field.
Professional connector and cable manufacturer, with good quality and competitive price.
free samples are available for further evaluation and you are highly welcome to visit our factory anytime!!
Henan Huadong Cable Co., Ltd is a joint stock enterprise integrated incable production,
research & development,and domestic& international trade.
Established year: 1988
Total asset: USD 32 million
Plant area: 30000 m2
Number of staff: 380
Engineer:20
Laboratory Inspector: 18
Production line: 18
Testing machine:25
Producing capacity each year: 320000 km
Split Concentric Cable to BS7870 4mm - 35mm copper/Aluminum(Aluminium Alloy-8000) ASTM B801 XLPE/HDPE Insulated PVC sheath Standard.
Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce based on customers' requirements and specifications.
Split Concentric Cable to BS7870 4mm - 35mm copper/Aluminum(Aluminium Alloy-8000) ASTM B801 XLPE/HDPE Insulated PVC sheath Certification.
The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National Electrical Product Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformation of Urban and Rural Power Grid Construction.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
