Huadong Cable MV Aluminum Concentric Power Cable 70mm Single Core Power Cable

Usage Characteristics:

Minimum installation temperature: 0°C ;

Maximum installation temperature: +60°C;

Installation type: Outdoor – Direct burial;

Minimum operating temperature:-15°C Maximum operating temperature:90°C;

Short-circuit max. conductor temperature: 250°C;

Flame retardant: BS EN 60332

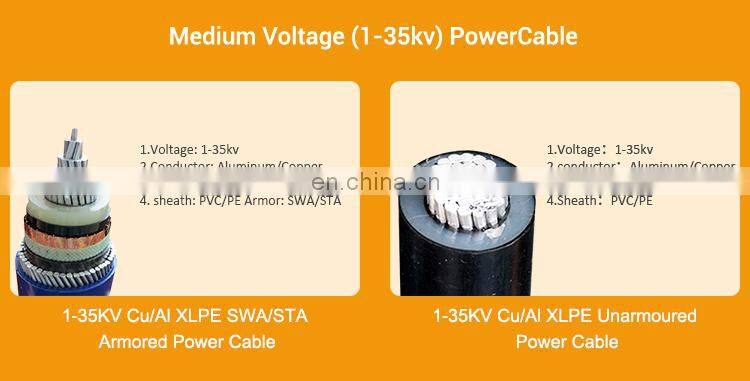

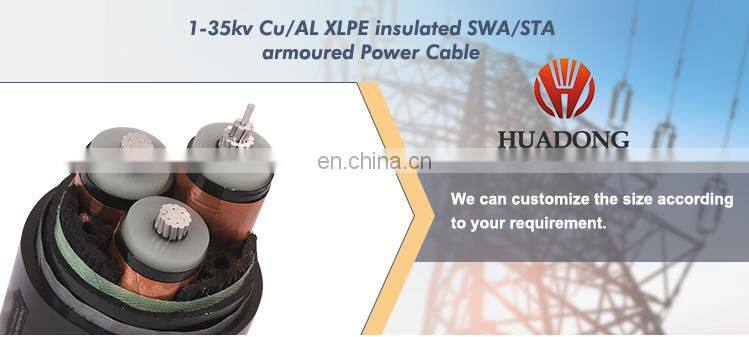

1-35kv Cu/AL XLPE insulated SWA/STA armoured Power Cable Parameter

APPLICATIONS

• Predominantly used for primary underground distribution

• Suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight

• To be used at 35,000 volts or less and at conductor temperatures not to exceed 90°C for normal operation

SPECIFICATIONS

35kV Primary UD Cable meets or exceeds the following ASTM specifications:

• B 230: Aluminum 1350-H19 Wire for Electrical Purposes

• B 231: Aluminum 1350 Conductors, Concentric-Lay-Stranded

• B 609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

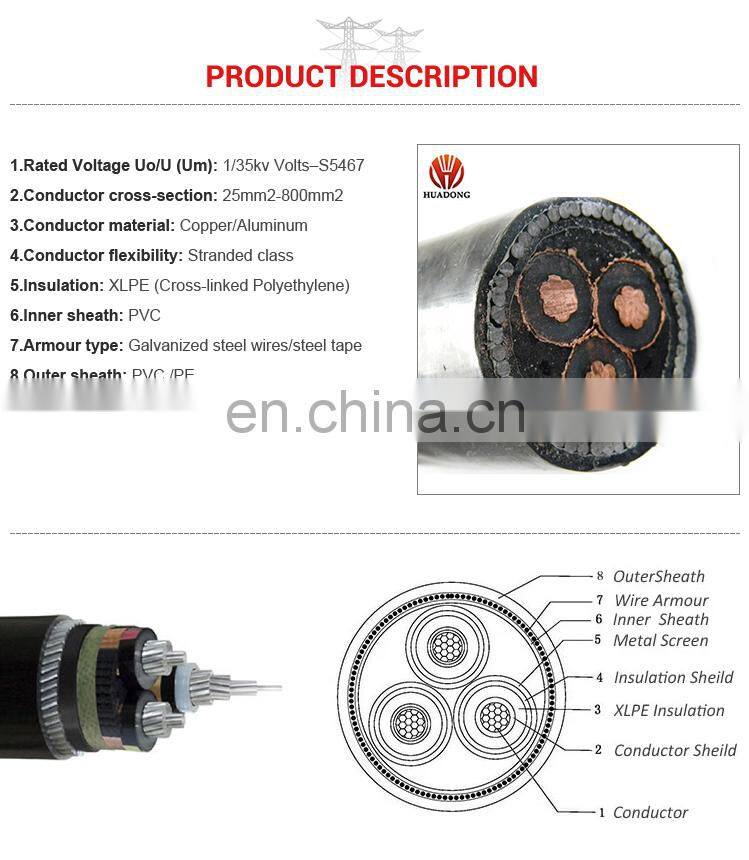

CONSTRUCTION

• The phase conductor is concentrically stranded, compressed soft copper or 1350-H16/26 aluminum alloy

• Cable is composed of the conductor with moisture block in the strands, covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield

• Conductors are available with either 100% or 133% insulation levels

• Concentric neutral of bare copper wires and an insulating polyethylene jacket is applied over the insulation shield

• Cable identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket

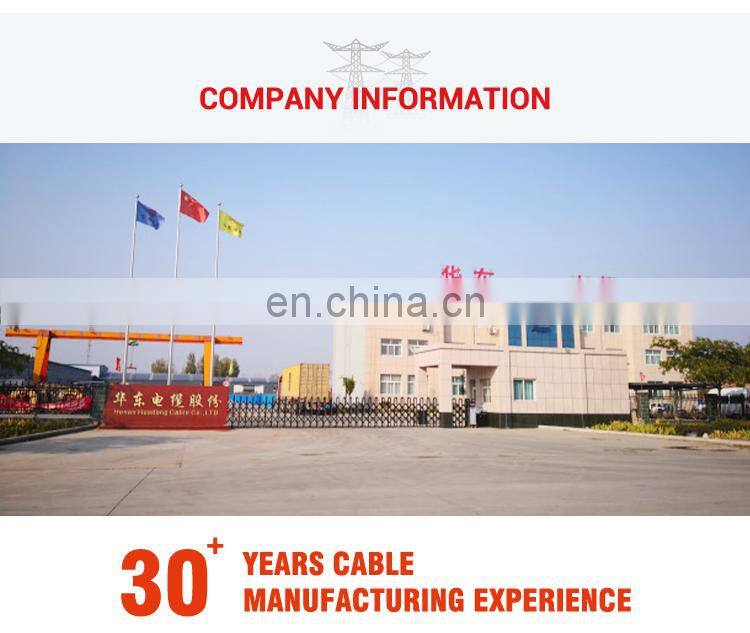

Henan Huadong Cable Co., Ltd. is a joint stock enterprise integrated in cable production, and domestic & international trade, founded in 2005, located in Xiuwu Industrial Zone, Jiaozuo and occupied 66,000 square meters, with advanced 20 sets equipments and 25 sets testing machines, annual production capacity is over 15 million kilometers.

Our collaborated cocompany is Henan Huadong Cable Co., Ltd. located in Zhengzhou city, which is well-known for convenient transportation.

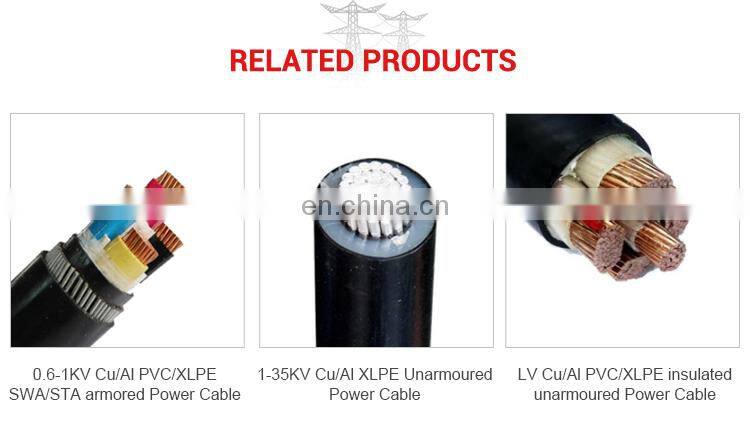

We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced (ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-35kV power cables (including XLPE insulated cables, PVC insulated cables, SWA/STA a rmored cables), (XLPE/PVC insulated ABC cable), control cables, welding cables, rubber cables, mining cables and electrical wires (PVC sheathed flexible cable). These cables can be used for power transmission in air, underground and industry, such as power station, railway, agriculture, and estate. We strictly according to GB, IEC, BS, ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.

We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia, Oceania countries. We are adhering reliable quality and professional service to make our Huadong Cable be famous in domestic and oversea. Thanks for your supporting and trusting! Huadong Cables welcomes your inquiry and visiting, we are at your service !
