Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar

Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-1
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-2
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-3
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-4
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-5
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-6
Low Voltage Cables de Energia NYY N2XOH Unipolar Tripolar photo-7
US$ 1 - 10 MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
Jinshui
Place of Origin:
Henan, China
Model Number:
NYY
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Jinshui
Place of Origin Henan, China
Model Number NYY
Type Low Voltage
Application Industrial
Insulation Material PVC
Jacket PVC
Conductor Material Copper
Product Description

Standard

IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)

Application

This 3 core NYY cable is used in fixed power applications of rated voltage 600/1000V and below. Adopting oxygen free copper as its conductor, it has good conductivity and corrosion resistant performance. Flame retardant, fire resistant, LSZH and other features are also available.

Product Details

1) Conductor: class 1 or 2 annealed copper

2) Insulation: PVC

3) Number of cores: 3

4) Core color: red, blue, Y/G or as per customer's requirements

5) Outer sheath: PVC

6) Sheath color: black

7) Max. working temperature: 70 degrees

8) Features: oil resistance, flame retardant, fire resistance

9) Cable structure

Size
Conductor
(No./mm)
Insulation
(mm)
Sheath
(mm)
Overall Dia.
(mm)
Net weight
(kg/km)
DC Resist. @ 20℃
(Ω/km)
3 x 1.5
1/1.38
0.8
1.8
10.2
140
12.1
3 x 2.5
1/1.78
0.8
1.8
11.1
186
7.41
3 x 4
1/2.25
1.0
1.8
12.9
260
4.61
3 x 6
1/2.76
1.0
1.8
14.0
340
3.08
3 x 10
7/1.35
1.0
1.8
16.8
489
1.83
3 x 16
7/1.70
1.0
1.8
19.1
700
1.15
Certifications
Factory & Equipment
Our Service

Pre-Sales Service

* Inquiry and consulting support

* Product, packaging, delivery design

* Free samples

After-Sales Service

* Provide installation guidance

* Engineers available to service overseas

* One year product quality guarantee

Packing & Delivery
Packaging
Size
50cm (L) * 50cm (W) * 20cm (D) & below
Weight
30 KG & below



Packaging Details
1) Polyester tape packaging, usually used for cables with a diameter of 10mm and below
2) 100 meters (or other length required by customer) per roll
Packaging
Size
180cm (L) * 110cm (W) * 180cm (D)
Weight
2.0 T and below



Packaging Details

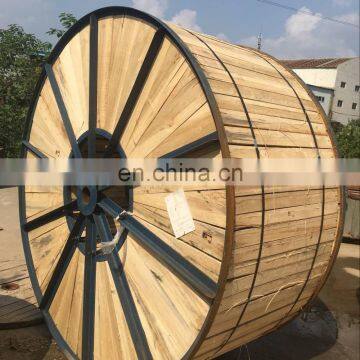

1) Wood or steel-wood drum
2) Packaging length as per customer's requirements
