Standard
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
Application
This 1kv 240mm xlpe 4 core armoured power is used in fixed power supplies of rated voltage 1000V and below. The steel wire armor allows the cable to bear considerable pulling strength. It can be installed in places with high altitude difference. Fire resistant and flame retardant cable is also available.
Product Details

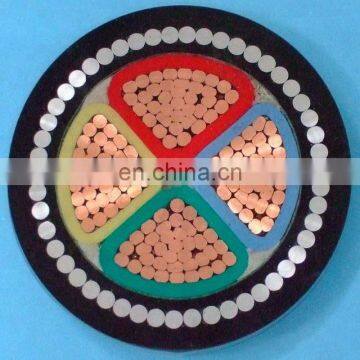

1) Conductor: annealed plain copper, 37/2.88 mm
2) Conductor shape: sector
3) Insulation: XLPE, 1.7 mm
4) Number of cores: 4
5) Core identification: different colors or color strips
6) Inner sheath: PVC, 1.6 mm
7) Armor: galvanized steel wire, 67/2.5 mm
8) Outer sheath: PVC, 3.0 mm
9) Overall diameter: 62.0 mm
10) Net weight: 13000 kg/km
11) Max. DC resistance @ 20℃: 0.0754 Ω/km
12) Max. working temperature: 90 degrees
13) Features: flame retardant, fire resistance
