Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 1KV Single Core Copper XLPE PVC Cable 16MM

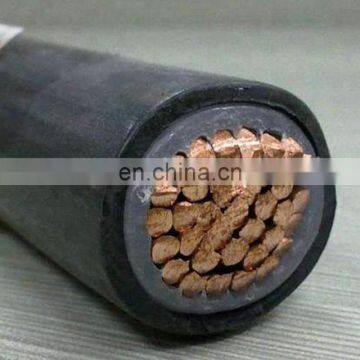

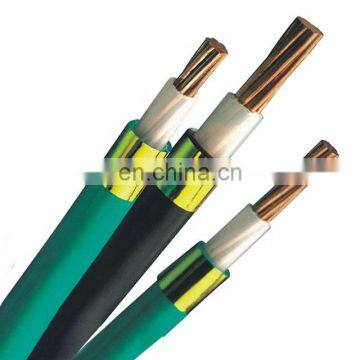

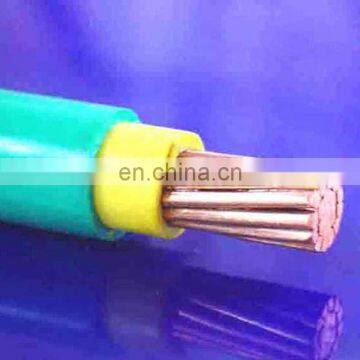

1KV Single Core Copper XLPE PVC Cable 16MM
US$ 1.14 - 1.35
MOQ: 50 Meters
Key Specifications
Get Latest Price
Brand Name:
Jinshui
Place of Origin:
China
Model Number:
CV
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aerial Service Connection Cable (CNE) 2*10mm2 2*16mm2US$ 0.6 - 10MOQ: 1000 Meters -
33KV CWS XLPE Insulated Nylon Anti-termite Power Cable AS1491.1US$ 1,000 - 1,000MOQ: 10 Kilometers
-
Fire Resistant Copper Wire Conductor Power Cable 3*2.5mm2 LSOHUS$ 0.5 - 10MOQ: 1000 Meters
-
Medium Voltage Steel Tape Armoured 8.7-15KV XLPE 3X300mm2 mv CablesUS$ 1 - 50MOQ: 1000 Meters
-
Single Core Copper Earth Cable 50mm 120mm Grounding WireUS$ 0.5 - 10MOQ: 1000 Meters
Brand Name
Jinshui
Place of Origin
China
Model Number
CV
Type
Low Voltage
Application
Construction
Insulation Material
XLPE
Jacket
PVC
Conductor Material
Copper
Product Description
Standard
IEC 60502: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV)
Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
Application
This copper XLPE PVC Cable 10mm is used in fixed power supplies of rated voltage 600/1000V and below. The conductor is oxygen-free copper (purity ≥ 99.9%), which provides the cable excellent mechanical and electrical performance.
Product Details
1) Conductor: solid annealed copper, 7/1.70 mm
2) Insulation: XLPE, thickness 0.7 mm
3) Outer sheath: flame retardant PVC, thickness 1.4mm
4) Overall diameter: 9.3 mm
5) Net weight: 205 kg/km
6) Max. DC resistance @ 20 degrees: 1.15 ohm/km
7) Max. working temperature: 90 degrees
8) Color: black
9) Identification: laser printed letter
Certifications
Factory & Equipment
Our Service
Pre-Sales Service
* Inquiry and consulting support
* Product, packaging, delivery design
* Free samples
After-Sales Service
* Provide installation guidance
* Engineers available to service overseas
* One year product quality guarantee
Packing & Delivery
Packaging |
||
Size |
50cm (L) * 50cm (W) * 20cm (D) & below |
|
Weight |
30 KG & below |
|
Packaging Details
|
1) Polyester tape packaging, usually used for cables with a diameter of 10mm and below 2) 100 meters (or other length required by customer) per roll
|
|
Packaging |
||
Size |
180cm (L) * 110cm (W) * 180cm (D) |
|
Weight |
2.0 T and below |
|
Packaging Details
|
1) Wood or steel-wood drum 2) Packaging length as per customer's requirements
|
|
