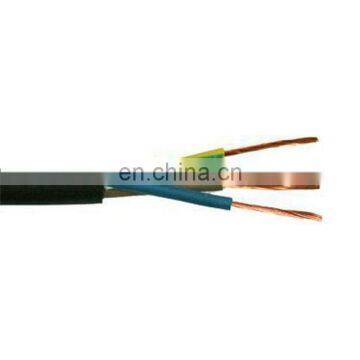

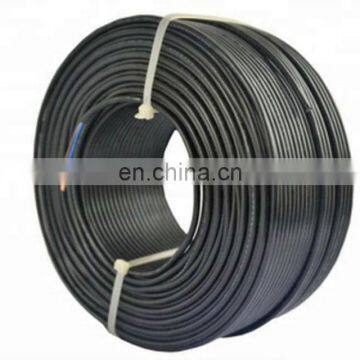

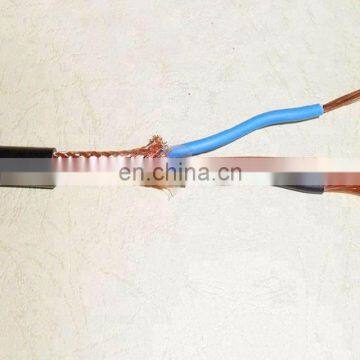

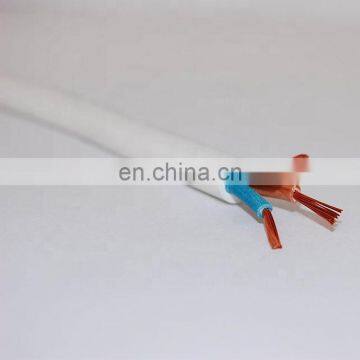

Help CenterLow Voltage Flexible Electrical Cable 3G 2.5MM
Related Products
-
Copper PVC PVC Control Cable 2.5MM2US$ 1 - 10MOQ: 500 Meters -
.6/1kv 4core 50mm 70mm 95mm XLPE Armoured CableUS$ 0.5 - 10MOQ: 1000 Meters
-
1KV Copper Conductor Armored Cable 4G25 MM2US$ 1 - 10MOQ: 500 Meters
-
Jinshui 0.6/1KV XLPE Insulation PVC Sheathed CCA Conductor Concentric CableUS$ 1 - 1MOQ: 1 Kilometer
-
1KV Single Core Copper XLPE PVC Cable 16MMUS$ 1.14 - 1.35MOQ: 50 Meters
Standard
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) up to 30 kV (Um=36 kV) - Part 1: Cables for rated voltages of 1 kV (Um=1.2 kV) and 3 kV (Um=3.6 kV)
Application
This 1KV 3 core 2.5mm electrical cable is used in fixed power supplies of rated voltage 1000V and below. Armored cable (steel tape or steel wire armor) cable is also available for different installation environment.
Product Details
1) Conductor: solid copper, 7/1.78 mm
2) Insulation: XLPE, 0.8 mm
3) Number of cores: 3
4) Core identification: red, blue, yellow/green
5) Outer sheath: PVC, 1.8 mm
6) Overall diameter: 11.1 mm
7) Net weight: 176 kg/km
8) Max. DC resistance @ 20℃: 7.41 Ω/km
9) Max. working temperature: 90 degrees
10) Features: steel wire or tape armor, oil resistance, flame retardant, fire resistance
Pre-Sales Service
* Inquiry and consulting support
* Product, packaging, delivery design
* Free samples
After-Sales Service
* Provide installation guidance
* Engineers available to service overseas
* One year product quality guarantee
