CJX/KJX Shear Pin Annunciator Shear Pin Signaller Shear Pin Signalor for Hydro Water Turbine Guide Vane Shear Pin Hydropower Plant HPP HEPP
US$ 4 - 10
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Brand Name:
Enrich Engineering
Place of Origin:
China
Model Number:
CJX/KJX-9/14/18/20/25/30...
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
7 days
Related Products
-
Pneumatic/Electric/Handwheel Di/Ductile Iron/Ggg40/C. S/A216 Wcb/CF8m/SS316 Cl150/Pn16 Water Square Penstock Sluice Gate Water Gate Channel Gate Sluice Door Iron Gate Hydro Project for Power Plant Agricultural IrrigationUS$ 100 - 666MOQ: 10 Pieces -
Fiber Glass Flap Electric Cast Casting FRP Penstock Sluice Gate Valve Water Gate Pipe Gate Use in River CourseUS$ 100 - 666MOQ: 10 Pieces
-
Screw Hoist for Lifting Sluice Gate Worm-Type Open-Close Machine Dam Gate Dam HoistUS$ 100 - 888MOQ: 10 Pieces
-
Heavy Duty Double Lifting Point Double Drum Electric Wire Rope Winch Type Sluice Gate Hoist for Pulling Steel Gate Tail Water Radial Gate Hoist for Dam Hydropower Power StationUS$ 888 - 20000MOQ: 1 Set
-
Automatic Physical Filtration in Effluent Sewage Treatment Process Slaughterhouse Textile Municipal Wastewater Solid Liquid Treatment Trash Rack Cleaning Machine Mechanical Fine Coarse Bar Screen Trash Rack Cleaning MachineUS$ 800 - 18000MOQ: 1 Set
Brand Name
Enrich Engineering
Place of Origin
China
Model Number
CJX/KJX-9/14/18/20/25/30...
Type
Generator
Output Voltage (V)
220
Electricity Generator Type
Hydro Power
Shear pin annunciator
Shear pin signalor
CJX/KJX Shear pin signaller
Shear pin annunciators are divided into normally open and normally closed ones. They are mainly used for transmitting signals when the shear pin of a hydro-turbine guide vane is broken; they can provide signal alarms for shear pin signal devices so as to make any one on duty to promptly handle it. Generally, they are installed inside the axial center holes of shear pins.

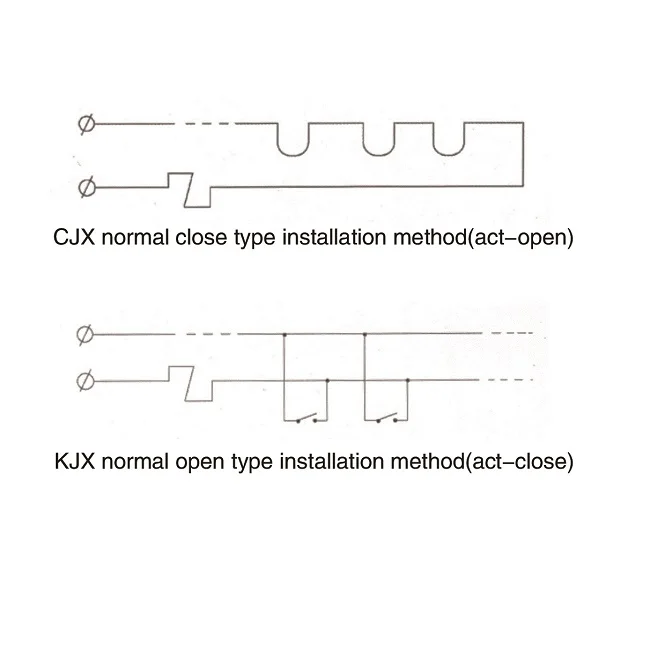

CJX is the normal close type, KJX is the normal open one, CJX type needs match with the shear pin signal device, KJX does not need.
Technical parameter:
1.Voltage<220V;
2.Internal resistance<0.2Ω;
3.Current<1A;
4.Ambient temperature:0-45ºC;
5.Ambient humidity<80%.

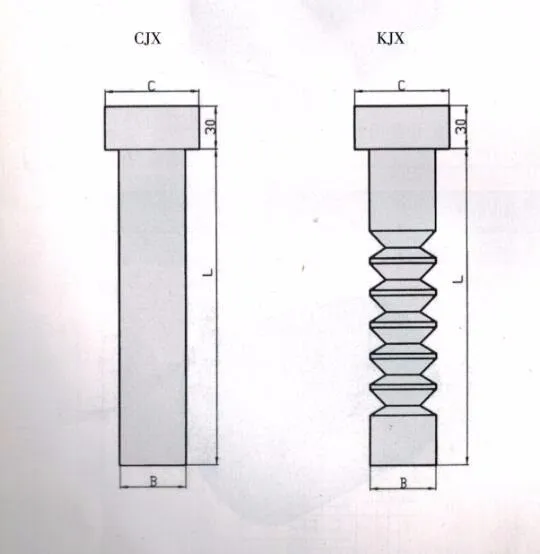

The measurement unit is mm.
| Model | Diameter B | Diameter C | Length L |
| CJX-9 | 9 | 22 | 60 |
| KJX-9 | |||
| CJX-14 | 14 | 25 | 80 |
| KJX-14 | |||
| CJX-18 | 18 | 25 | 100 |
| KJX-18 | |||
| CJX-20 | 20 | 25 | 100 |
| KJX-20 | |||
| CJX-25 | 25 | 25 | 100 |
| KJX-25 | |||
| CJX-30 | 30 | 35 | 100 |
| KJX-30 |
Customized dimensions are available.
