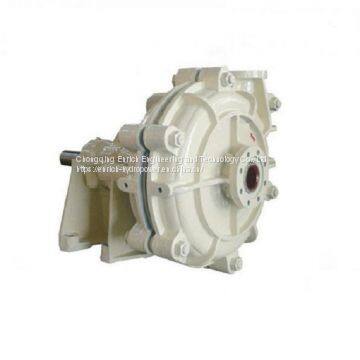

Heavy Duty Wear-Resisting Industrial Mining Mineral Process Processing Horizontal Single-Suction Cantilever Gravel Dredging Sand Centrifugal Slurry Pump Mud Pump Pulp Slurry Pump Slurry Mine Tailing Pump

Slurry Pump& Impurity pump

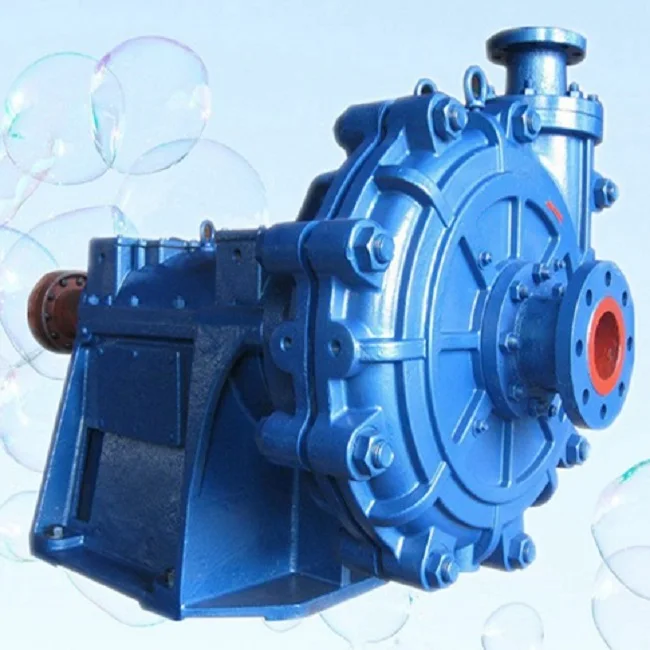

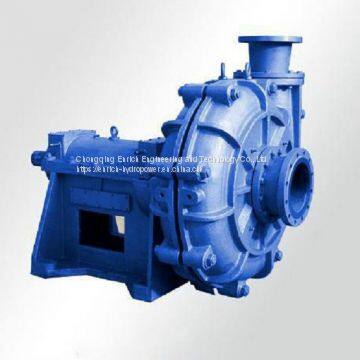

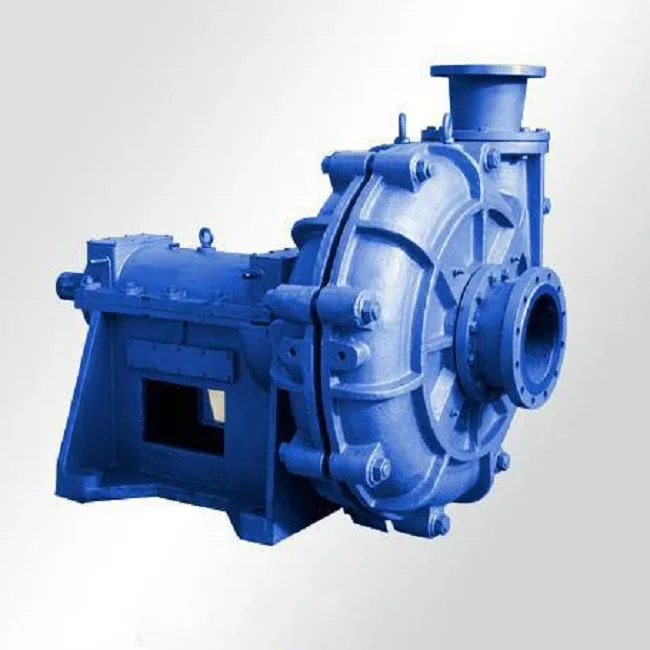

ZGB Slurry Pump

This product adopts horizontal, vertical axial center-opening double pump casing structure, and the inner lining is hard alloy. High-efficiency, high-head impeller design, using hard alloy impeller, wide flow channel, good anti-blocking performance, and low NPSHr. Horizontal split bearing assembly, high-capacity bearing design, oil-lubricated bearings, and two sets of bearing cooling system to ensure safe and reliable operation.

Advantages

1.Long life of wearing parts

2.High efficiency and low energy consumption

3.Easy maintenance

4.Low operating costs

5.High reliability

Application area

Mainly used in mining, metallurgy, municipal, power, coal, petroleum, chemical, building materials and other industries.

Structural features

1.Adopt horizontal, vertical axial center-opening double pump casing structure, the inner lining is hard alloy.

2.High-efficiency, high-lift impeller design, using hard alloy impeller, wide flow channel, good anti-blocking performance, and low NPSHr.

3.Horizontal split bearing assembly, high-capacity bearing design, oil-lubricated bearings, and two sets of bearing cooling system to ensure safe and reliable operation.

4.The gap between the impeller and the guard can be adjusted to ensure the efficient operation of the pump.

5.The shaft seal adopts packing seal, packing& impeller seal and cartridge mechanical seal to meet different working conditions.

6.The pump and driver can be connected direct-coupled transmission, V-belt transmission, hydraulic coupling transmission, and reducer transmission.

7.The outlet direction of the pump can be rotated and installed at 8 angles to suit different site installation conditions.

8.Multi-stage series can be used to meet the requirements of long-distance transportation.

65ZGB

80ZGB

100ZGB

150ZGB

200ZGB

250ZGB

300ZGB

......

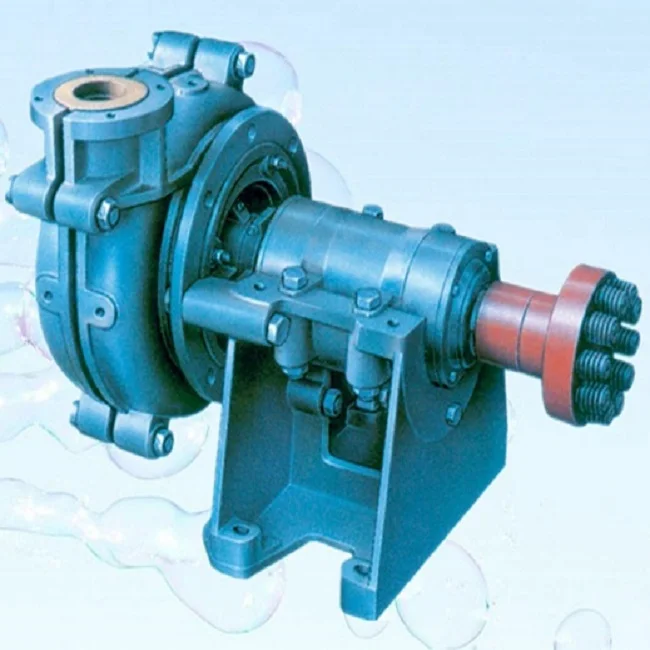

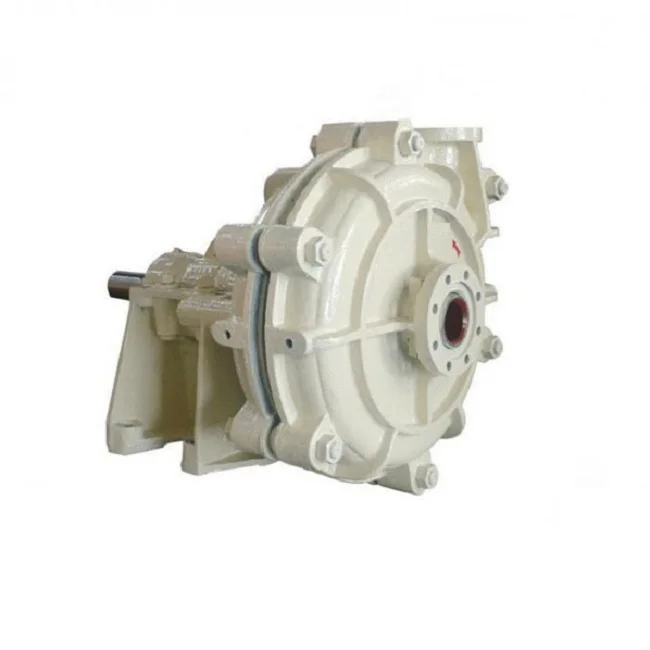

AH,HH type pumps are cantilever, horizontal centrifugal slurry pumps. It is suitable for transporting strong abrasive and high-concentration slurry in industrial sectors such as metallurgy, mining, coal, power, and building materials. This type of pump can also be used in multiple stages in series.

The pump body of AH and HH pumps has replaceable wear-resistant metal lining or rubber lining, and the impeller is made of wear-resistant metal or rubber material. The lining and impeller of the HH pump are made of wear-resistant metal only.

The shaft seals of AH and HH pumps can adopt packing seals or centrifugal seals. The outlet position of the pump can be installed and rotated at different angles of 45 degrees at eight different angles.

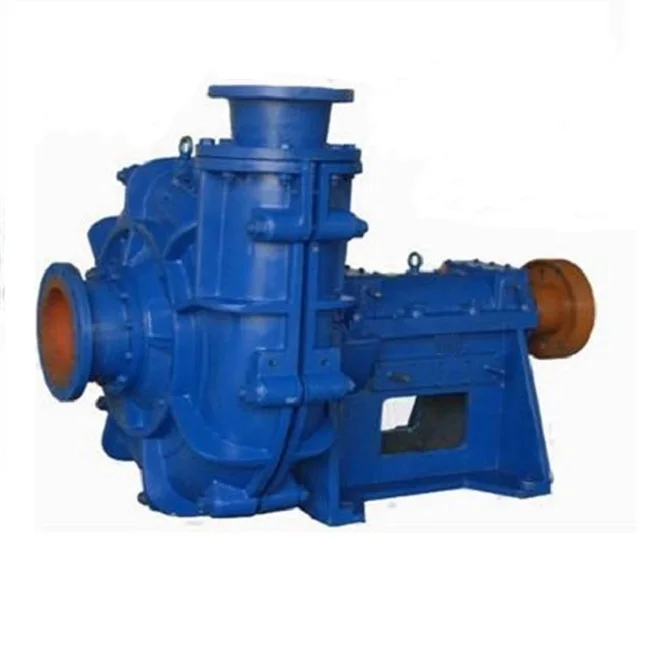

ZJ slurry pump is a horizontal, vertical split-type slurry pump with double pump casing structure. ZJ slurry pump body and pump cover are equipped with replaceable metal lining. The lining material is high chromium wear-resistant alloy material. The lining can be used until it is worn through, which extends maintenance intervals and reduce operating costs. The outlet direction of the pump can be rotated and installed at 8 angles.

It is suitable for power, metallurgy, coal, building materials and other industries. The processing medium is abrasive or corrosive slurry containing solid particles. The solid-liquid mixed concentration of ZJ slurry pump is 45% for mortar, and 60% for ore slurry, medium temperature ≤60℃.

300ZJ-100

300ZJ-95

300ZJ-70

250ZJ-65

150ZJ-57

50ZJ-50

250ZJ-65

……

150ZJL-A35

100ZJL-A34

80ZJL-A36

65ZJL-A30

40ZJL-A21

……

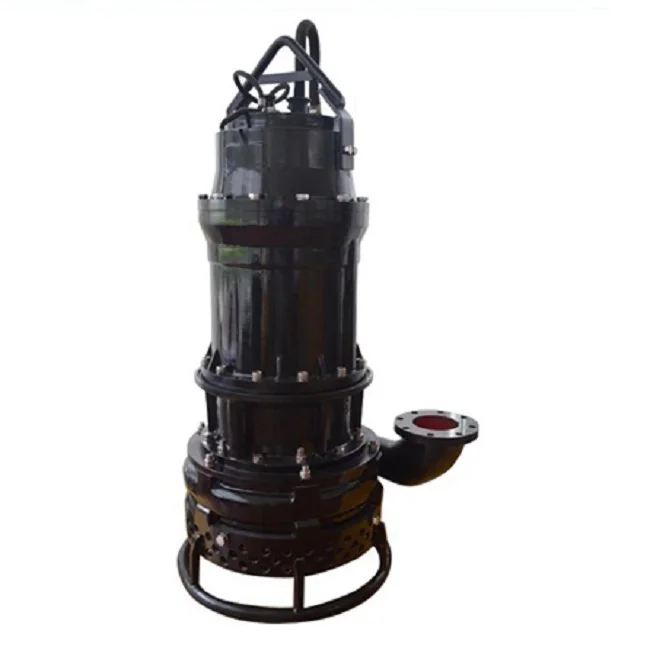

ZJQ submersible slurry pump applications

1.Dredging of rivers, lakes, reservoirs and ports

2.Sand pumping in rivers, lakes and seas
3.Reclamation in coastal areas
4.Sand and mud drainage for construction
5.Sediment removal from municipal pipelines and rainwater pumping stations
6.Cleaning of sedimentation tanks in steel plants, sedimentation tanks in beneficiation plants, coal sinks in power plants, and oxidation ditch sedimentation ponds in sewage plants
7.Blast Furnace Water Slag and Slag Transportation in Steel Plant
8.Conveyor concentrator tailings, slag, slurry
9.Coal slag, coal slime, coal slurry removal
10.Power plant fly ash, slime, coal slurry transportation
11.Absorb various solid particles of corundum, quartz sand and steel slag
12.Beneficiation, gold rushing, iron sand pumping
13.Conveying of slurry materials with various impurities
14.Conveying other media containing larger solid particles

Features
1.The whole machine is a dry motor& lower pump structure. The motor is protected by a mechanical seal, which can effectively prevent high-pressure water and impurities from entering the inner cavity of the motor.
2.In addition to the main impeller, there is a stirring impeller, which can stir the slag deposited on the bottom of the water into a turbulent flow and extract it.
3.Impellers, stirring impellers and other main flow-through parts are made of highly wear-resistant materials. They are wear-resistant, corrosion-resistant, non-clogging, and have strong drainage capabilities. It can effectively pass large solid particles.
4.Unlimited by suction, high slag suction efficiency, dredging is more thorough.
5.No auxiliary vacuum pump required. Lower investment.
6.No auxiliary stirring or spraying device is needed for easier operation.
7.The motor dives into the water without the need for complex ground protection and fixtures. Management is easier.
8.The stirring impeller directly contacts the deposition surface, and the concentration is controlled by the diving depth, so the concentration control is more free.
9.Equipment dives directly into the water to work without noise and vibration. The site is more cleaner.
10.The direction of rotation of the pump is clockwise when viewed from the drive end.

50ZJQ20-25-4KW

80ZJQ20-30-5.5KW

80ZJQ30-30-7.5KW

100ZJQ50-26-11KW

100ZJQ100-18-11KW

100ZJQ60-30-15kw

150ZJQ150-15-15kw

150ZJQ150-22-22

300ZJQ1000-22-132kw

……
