Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Hysoon HD10L Mini Wheel Loader With Fork and Bucket
US$ 8,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HYSOON
Place of Origin:
Shandong, China
Type:
Mini Loader
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Garden Machine Mini Loader Skid Steer With Snow Plow Attachment Sbest Price Snow BlowerUS$ 9,800 - 10,000MOQ: 1 Set -
Mini Loader With DiggerUS$ 9,800 - 10,000MOQ: 1 Set
-
CE Certificated Mini Wheel LoaderUS$ 5,000 - 10,000MOQ: 1 Set
-
China CE Certificated Mini Wheel LoaderUS$ 5,000 - 10,000MOQ: 1 Set
-
Mini Wheel Loader HY200US$ 5,000 - 10,000MOQ: 1 Set
Brand Name
HYSOON
Place of Origin
Shandong, China
Type
Mini Loader
Certification
CE GOST
Warranty
1 Year
Condition
New
Dimension(Long * Breadth * High)
3630*1200*2660mm
Moving Type
Wheel Loader
1.PRODUCT INFO
hysoon HD10L mini wheel loader
Engine:31HP Perkins DIESEL
Transmission: Hydraulic transmission
Control system: Hydraulic system
Driven :4 wheels
Load capacity: 700kg
Overall Dimension: 3630*1200*2660mm (with standard bucket)

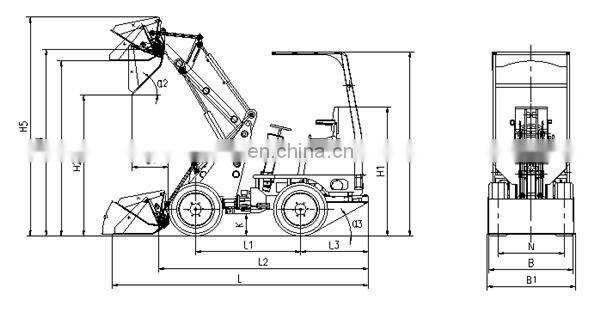

2. hysoon HD10L mini wheel loader Spec
| Engine Brand | Perkins |
| Fuel | Diesel |
| Rated Power | 30HP |
| Fuel Volume | 15.3L |
| Hydraulic oil volume | 30L |
| Operate Weight | 1100kg |
| Load capacity | 1000kg |
| Bucket capacity | 0.3cbm |
| Speed | 0-10km/h |
| Min Turning Radius | 3190mm |
| Tyre | 10.00/75-15.3 |
| Max Pin Height (B) | 2690mm |
| Max Dumpe Height (C) | 2030mm |
| Dump distance at highest point (D) | 515mm |
| Total Height (H) | 2660mm |
| Ground Clearance (F) | 320mm |
| Wheelbase (G) | 1490mm |
| Length without bucket (J) | 2980mm |
| Total Width (W) | 1200mm |
| Bucket Width (K) | 1260mm |
| Total Length(with bucket) (L) | 3630mm |
| Departure Angle | 30degree |
| Bucket dump angle | 45degree |
| Bucket Collection angle | 34degree |

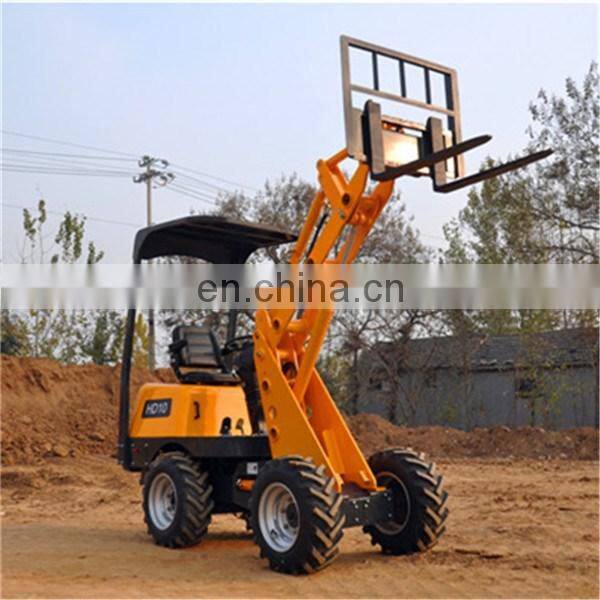

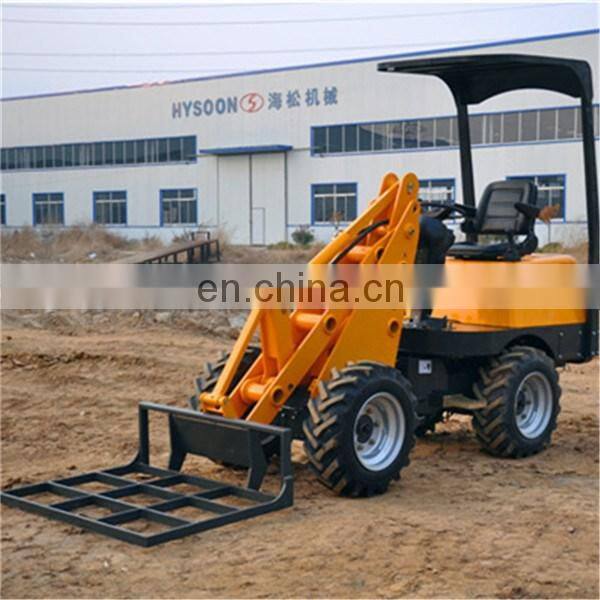

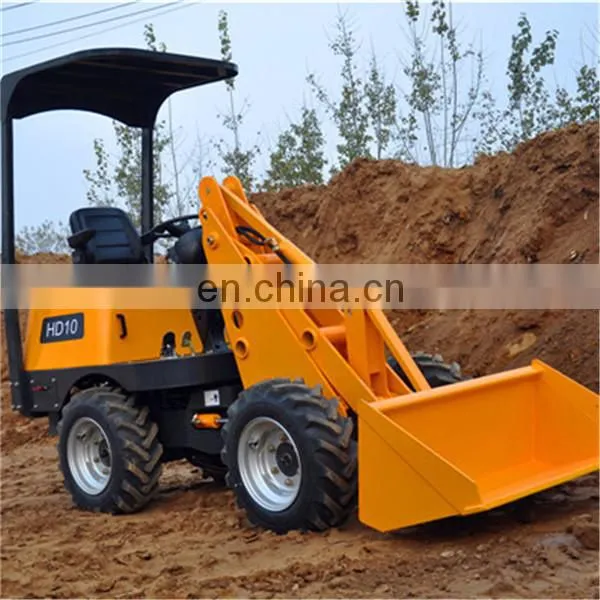

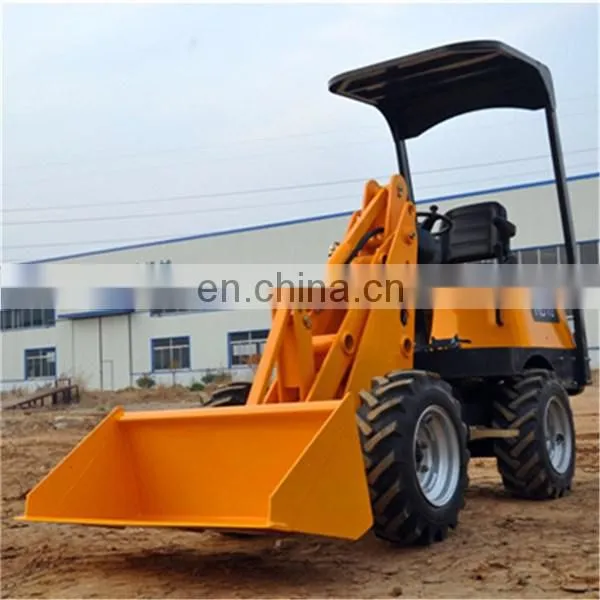

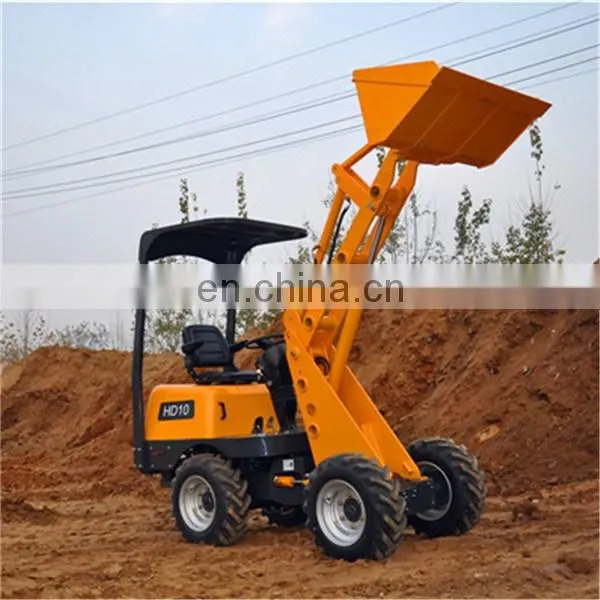

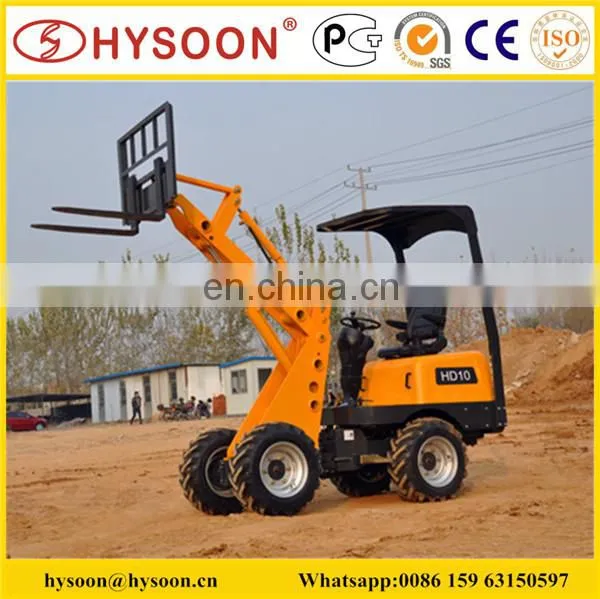

3.hysoon HD10L mini wheel loader More Pictures,
4. hysoon HD10L mini wheel loader Attachments
There are various attachments for the mini loader,
more than 30 kinds ,with quick hitch system ,
it’s very easy to change the attachments,such as digger,fork,tiller,
hydraulic breaker,snow blower,lawn mower,trencher,backhoe,
earth auger drill......

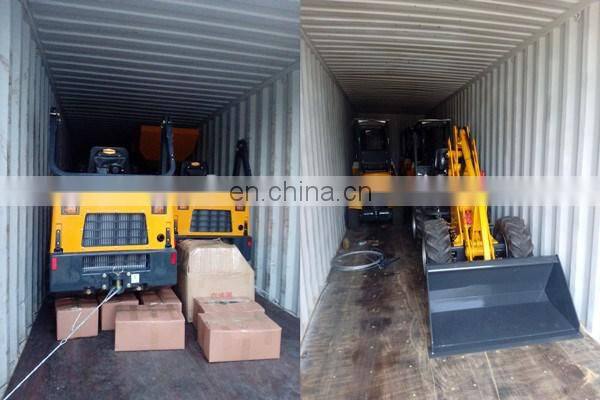

5.Hysoon HD10L mini wheel loader Packing and Shipping
Non packing,loaded the Hysoon HD10L mini wheel loader into container directly,
it can load 2 or 3 sets hysoon HD10L mini wheel loader in 20'container,
6sets hysoon HD10L mini wheel loader in 40'container.
6.hysoon HD10L mini wheel loader with fork and bucket related products,

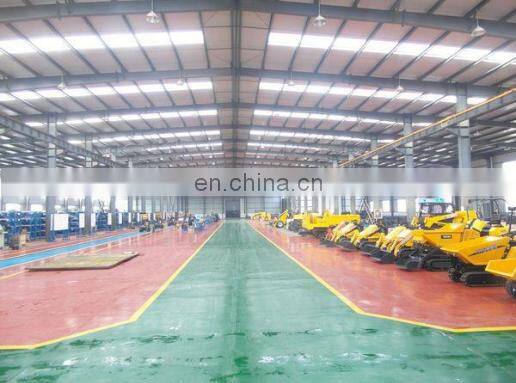

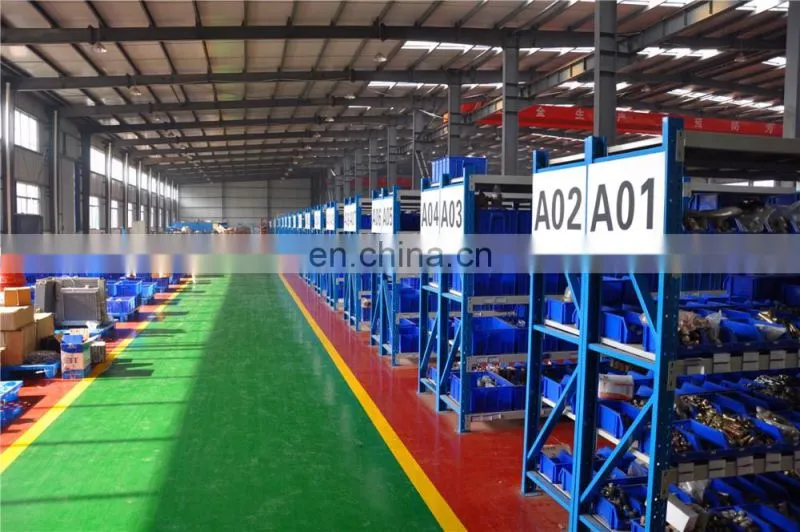

7.Company info
For further info about any Hysoon products,please do kindly contact
Elieen Liu
TAIAN HYSOON MACHINERY CO.,LTD.
ADD:Boyang Road,Tai'an City,Shandong,China
Tel:0086 538 6189955
Fax:0086 538 6189955
Cell:0086 186 53859083
Whatsapp:0086 159 63150597
Skype: elieen.l
QQ: 1459163274
Email/MSN:hysoon#
