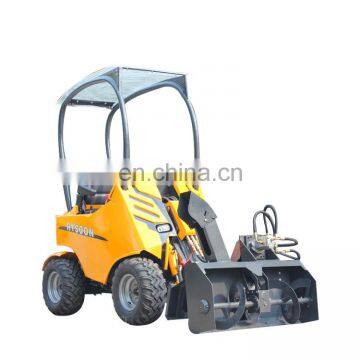

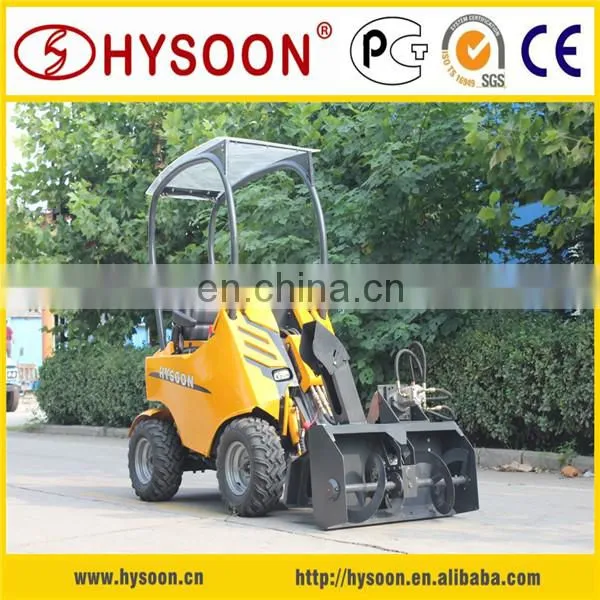

garden machine mini loader skid steer with snow plow attachment sbest price snow blower
1.PRODUCT INFO
• Transmission: Hydraulic transmission
• Control System: Hydraulic system
• Driven: 4 wheels
• Engine: Briggs&Stratton gasoline engine From USA, 23HP
• Tyre:With pneumatized tire
• Motor: Four cycloid Motors
• Hydraulics System:Italy Hydraulic
• Bucket:With Standard Bucket
• System Flow:60l/min
• SIZE (L*W*H):2424*970*2020MM
• Bucket Capacity:0.15cbm/260kg
• Operating Weight:840kg
Technical Specification
|
Engine |
Rated Power |
17.1Kw(23Hp) |
||
|
Rotating speed(rpm) |
3600 |
|||
|
Noise (dB) |
≤85 |
|||
|
Fuel tank Capacity(L) |
22 |
|||
|
Hydraulic Oil Tank Capacity(L) |
21 |
|||
|
Hydraulic System |
Pressure(Mpa) |
17.5 |
||
|
Cycle Time (s) |
Raise |
Dump |
Lower |
|
|
3.8 |
1.34 |
2.38 |
||
|
Capability Parameter |
Operating Load (Kg) |
260 |
||
|
Bucket Capacity (m3) |
0.15 |
|||
|
Max pushing power(KN) |
5 |
|||
|
Max Lifting power(KN) |
4.8 |
|||
|
Speed (Km/h) |
0~8 |
|||
|
Operating Weight(Kg) |
840 |
|||
|
Model of Tyre |
21×8.00-10TR |
|||
Dimension (mm)
|
Max pin height |
1412 |
|
Max Working Height |
1360 |
|
Max Dump height |
900 |
|
Max Dump distance |
558 |
|
Total Height |
2020 |
|
Overall width to outside of tyre |
978 |
|
Overall length with bucket |
2424 |
|
Overall Length without bucket |
2030 |
|
Bucket width |
980 |
|
Total width |
970 |
|
Ground clearance(F) |
160 |
|
Wheel base |
1207 |
|
Departure angle(α) |
40° |
|
Dump angle at max height(γ) |
26° |
|
Rollback of bucket on ground(θ) |
48° |
|
Mini Turn Radius |
2320 |
2. Features of garden machine mini loader skid steer
with snow plow attachment sbest price snow blower
- A superior alternative to HY380 mini skid steers loader.
- Very compact size for a sit on loader. Hydrostatic transmission and articulated steering guarantees smooth, flexible and precise driving.
- Very precise controls in both low and high drive speed due to the two pedals for selecting the driving direction and speed. This makes driving safe and quick to learn.
- It is decidedly smaller than its predecessors, yet more flexible, easier control, more eye-catching than ever.

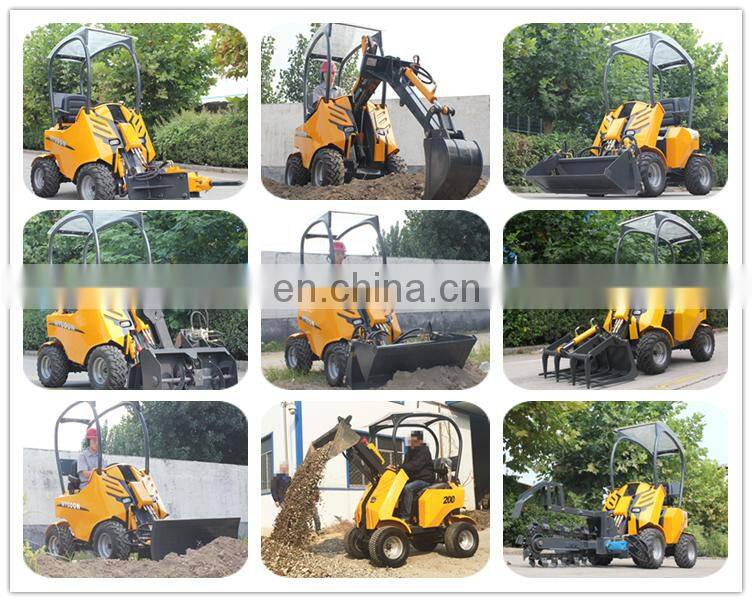

- By one special quick attach for the bucket (attachment), it can also attach a wide variety of attachments for a variety of different jobs and have outstanding service and support.
3. More Details

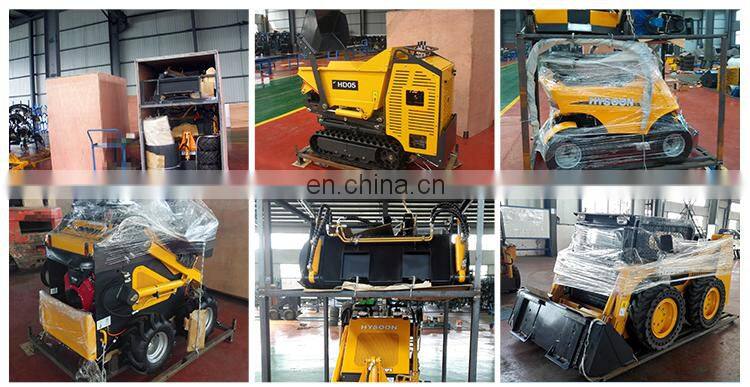

4. Package
garden machine mini loader skid steer with snow plow attachment sbest price snow blower
FOR LCL ,
We use plywood & iron frame package, It’s very strong to protect the products during the transport.

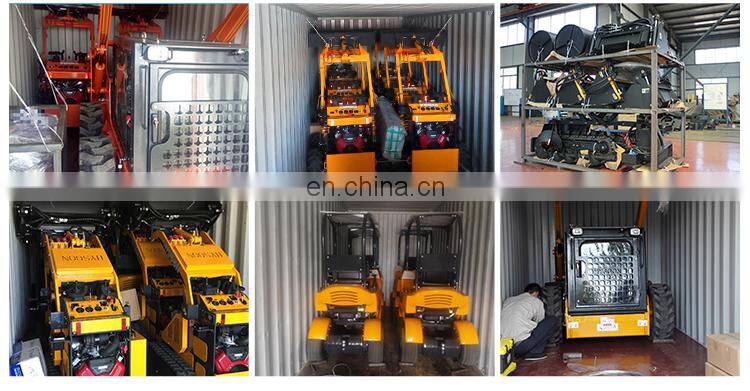

FOR FCL
20 Feet container can load 5 PCS HY200 Mini Articulated Loaders.
40 feet container can load 10 PCS HY200 Mini Articulated Loaders.
5.Applications
