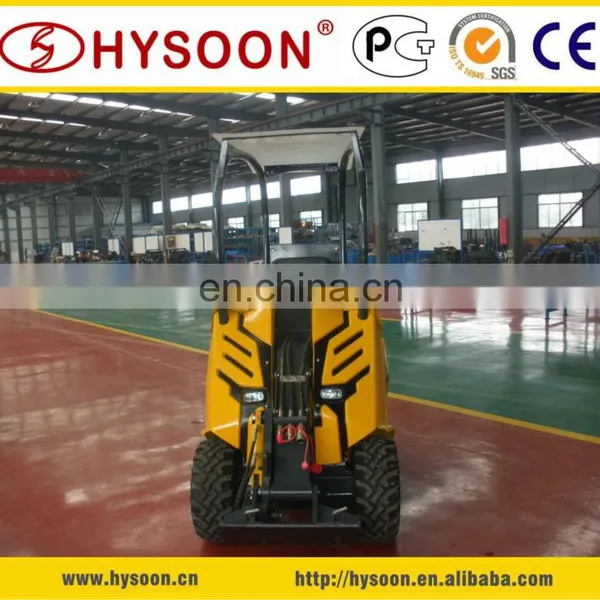

mini wheel loader HY200
Brigs&Stratton Engine,
CE/EPA
hydraulic system
easy operate,rubber track or tyre
1. Products Info
mini digger,mini tractor,mini skid steer loader,mini loader HY200,is with seat,more comfortable to operate.
Load capacity 260kg,0.15cbm bucket.
Have got CE GOST Certificated.
HS CODE:8429510000
Engine Briggs&Stratton,
Vanguard Series.
US Brand,
made in Japan,
for business use,
3 years warranty,can supply worldwide after sale service.
Fuel Consumption
3.67L/h------50% load
6.15L/h------Full load
Hydraulic Transmission System
Ride on operation, Easy control,comfortable
4 wheel drive
with Italy Hydraulic
Quick hitch plate
mini digger,mini tractor,mini loader HY200 have quick hitch plate,this makes you changing the loader attachments quickly and easily.
Quick joints
mini digger,mini tractor,mini loader HY200 have quick joints,make it easy to transfer hydraulic power to attachment,such as the digger,fork,earth auger drill,
snow blower,tiller,trencher,hydraulic hammer etc.
2. Mini Loader drawing
Mini Loader HY200 Size:
Name |
Data |
Max pin height (B) |
1769 mm |
Max height of unloading (C) |
1260mm |
The highest point of unloading distance(D) |
558 mm |
Total length (H) |
2020 mm |
The height from ground (F) |
160 mm |
Wheelbase (G) |
1207 mm |
No bucket length (J) |
2030 mm |
Total width (W) |
970 mm |
Bucket width (K) |
980mm |
Total length (L)(with bucket ) |
2424 mm |
Angle of departure (α) |
40° |
Bucket unloading angle(γ) |
27° |
Collecting bucket (θ) |
48° |
3. Mini loader HY200 Specification
Name |
Data |
Rated power |
17.15KW (21HP) |
Fuel tank of capacity |
22L |
Hydraulic tank capacity |
21L |
Loading weight |
260Kg |
Bucket capacity |
0.15 m3 |
Max traction force |
5 KN |
Max lift force |
4.6 KN |
Speed |
0-8km/h |
Max lift force |
260 Kg |
Minimum turning radius |
2320mm |
Operation weight |
840kg |
4. Mini loader HY200 with attachments
Mini loader HY200 with snow blower,trencher,wood grapple,digger,4 in 1 bucket,
hydraulic hammer,snow blade,high dumper,backhoe/excavator
5.Packing and delivery
For your order,if not full container,usually we will make the steel frame packing,
and covered by ply-wood,then can be delivery by LCL container.
For full container,the mini loader will be drive into the container directly,and fastened well.
but sometimes,the mini loader attachments need to be packed by steel frame.
For more info about the mini loader HY200,please contact
Elieen Liu
TAIAN HYSOON MACHINERY CO.,LTD.
Tel:+86 538 6189955
Cell:+86 159 6315 0597
Email:hysoon#
