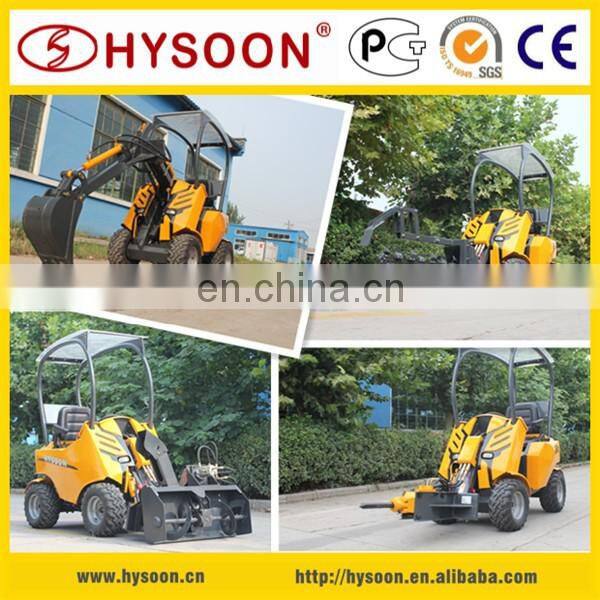

Chinese garden loader Avant similar articulated mini wheel loader
full hydraulic
4 wheel drive
multifunction use
ride on operating,make everything easy
Spec of Chinese garden loader Avant similar articulated mini wheel loader
Engine: America brand Briggs&Stratton Engine,imported from Japan
double cylinder,4 stroke
Rated Power:23HP
Displacement 627cc
Fuel:Gasoline
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |

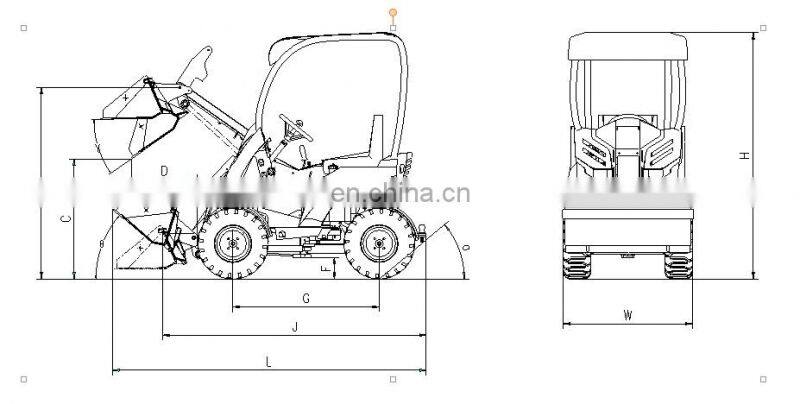

| Max Pin Height (B) | 1767mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |
Usage of Chinese garden loader Avant similar articulated mini wheel loader
Land sorting, Garden, Snow removal, Mining, Landscaping, Construction, Dairy industry, Farm, Livestock farm ,
Waste(animal waste, municipal solid waste, life garbage) removal,ditching, truck loading ,tree planting and so on.
Attachments for Chinese garden loader Avant similar articulated mini wheel loader

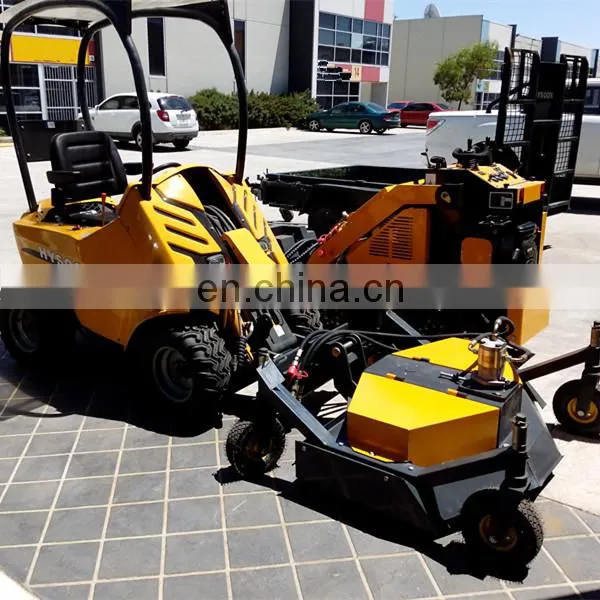

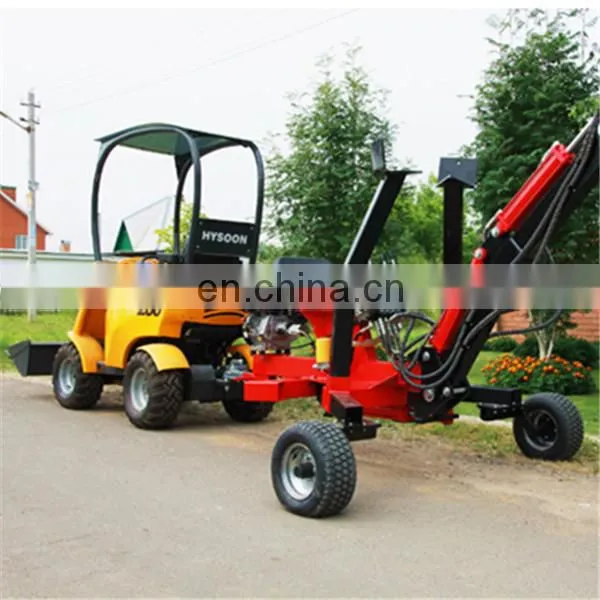

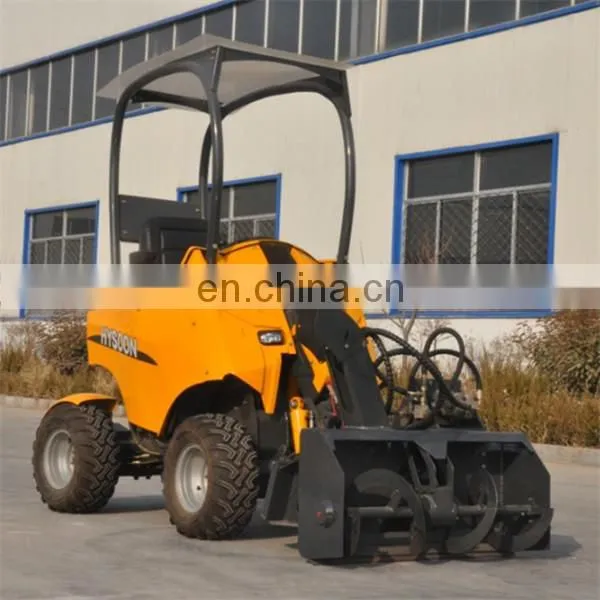

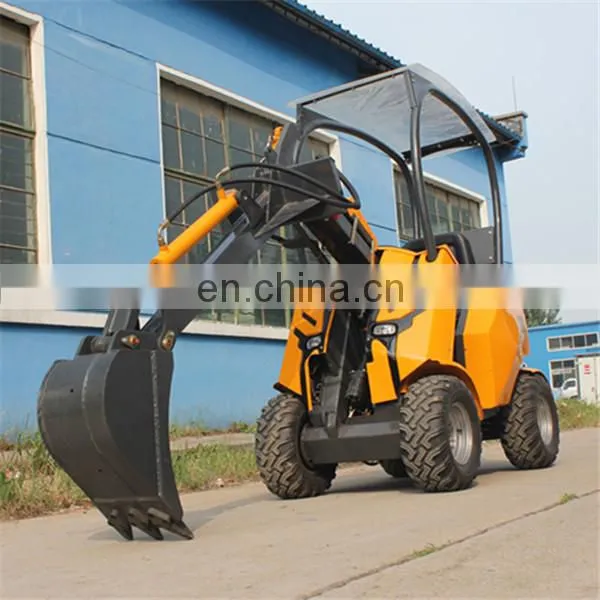

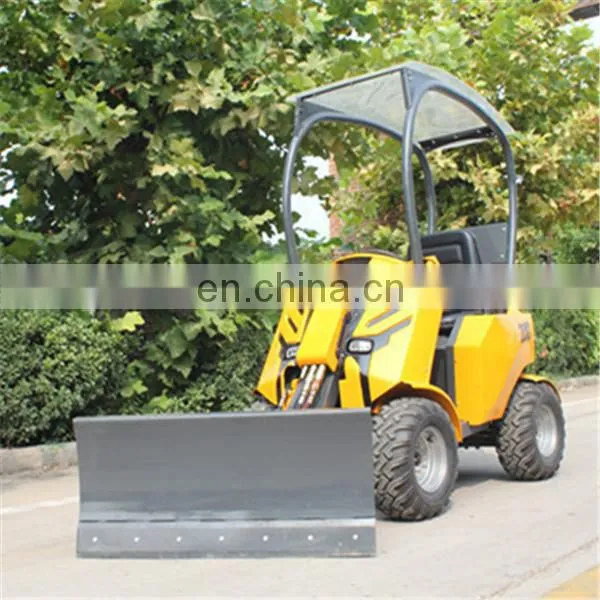

The HY200 mini wheel loader have quick hitch plate,can easily and quickly change knids of loader attachments,such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
For sample order,usually will be packed by steel frame and covered by ply-wood.
considering the shipping cost,will be better delivery by LCL container.
For container order,usually will be loaded into the container directly and fastened.
Sample order available
Customize available
Quickly respond about after-sale service
1. We are manufacture or trade company?
We are real manufacture,and are always engaged in mini&medium construction machine.
2.Min order quantity?
Sample order available,1set acceptable
3.OEM acceptable?
Yes.
4.Warranty Terms?
1 year for the machine,hydraulic parts 6 months.
For any furthre info,please do not hesitate to contact
Elieen Liu
