23HP mini loader trencher
- 200 Set / Sets per Month
- Qingdao or others
- T/T Credit Card
Product Details
Brand Name: | HYSOON | Place of Origin: | Shandong, China | Type: | mini trencher, mini trencher |
Use: | digging ditch | Certification: | CE GOSET | ||
Condition: | New |
Product Description

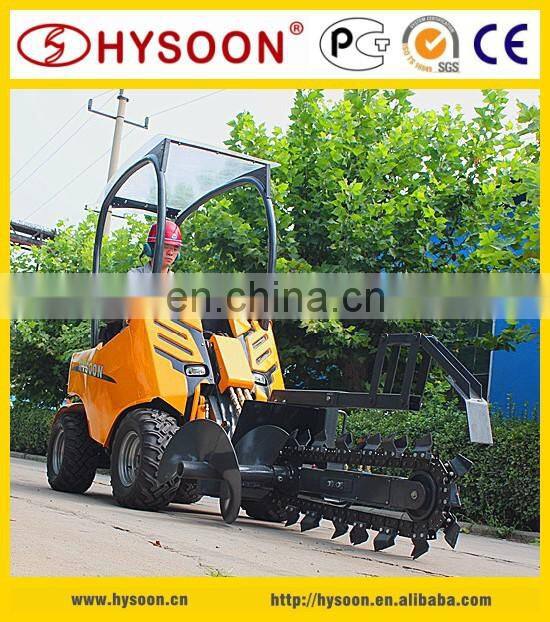

23HP mini trencher
mini trencher is mounted on HY200 mini loader
1.Main specification
Mini trencher main specification :
length *width *height : 1545mm*1010mm*875mm
Max trenching depth :800mm
Once trenching width :155mm
Chian speed :154m/min
HY200 mini loader main specification :
Main size :
Item | HY200 | |
Metric | Inch | |
Max pin height (B) | 1769 mm | 69.6 inch |
Max height of unloading (C) | 1260mm | 49.6inch |
The highest point of unloading distance(D) | 558 mm | 21.9 inch |
Total length (H) | 2020 mm | 79.5 inch |
The height from ground (F) | 160 mm | 6.3 inch |
Wheelbase (G) | 1207 mm | 47.5 inch |
No bucket length (J) | 2030 mm | 79.9 inch |
Total width (W) | 970 mm | 38.2 inch |
Bucket width (K) | 980mm | 38.6 inch |
Total length (L)(with bucket ) | 2424 mm | 93.1 inch |
Angle of departure (α) | 40° | 40° |
Bucket unloading angle(γ) | 27° | 26° |
Collecting bucket (θ) | 48° | 48° |
Main performance parameter
Item | HY200 | |
Metric | Inch | |
Rated power | 17.15KW | 23HP |
Fuel tank of capacity | 22L | 4.8 UKgal |
Hydraulic tank capacity | 21L | 4.6 UKgal |
Loading weight | 260Kg | 573.2 Lb |
Bucket capacity | 0.15 m3 | 5.32 ft3 |
Max traction force | 5 KN | 1124Lbf |
Max lift force | 4.6 KN | 1034 Lbf |
Speed | 0-8km/h | 0-4.97mile/h |
Max lift force | 260 Kg | 573.2 Lb |
Minimum turning radius | 2320mm | 91.3 inch |
Operation weight | 840kg | 1851.9lb |

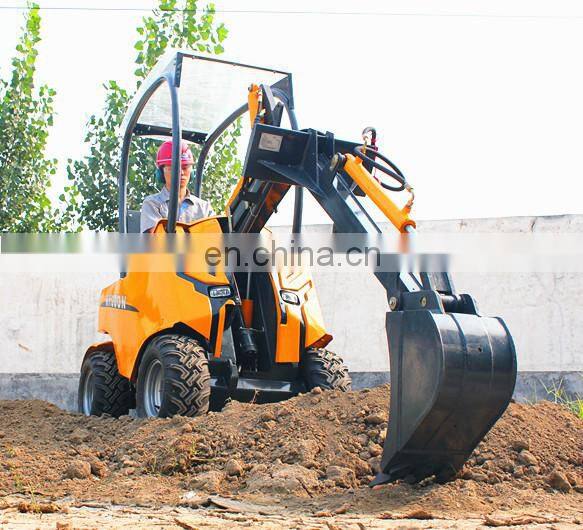

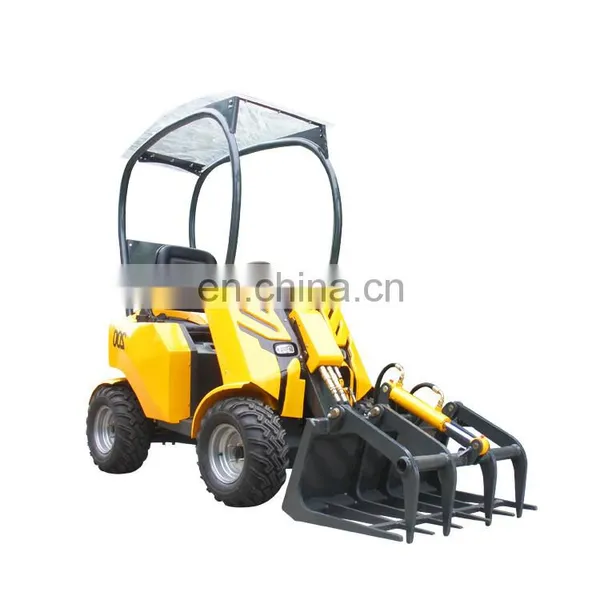

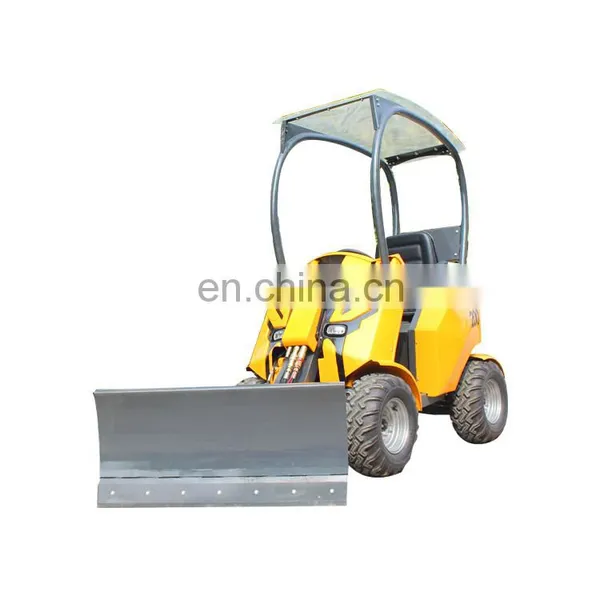

2. Various attchments can be mounted on HY200 like Trencher , Breaker , Auger , Digger , snow blower , snow blade , sweeper , backhole , ripper , fork , 4 in 1 bucket, leveller ,trencher , and so on . Use one HY200 , you will finish different works with high effiency !
3. We can also produce the following prioducts , please click the pictures to see moe detail information :
4. Exhibition
We attended lots professional exhibitions : Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on . Our products have won lots customers loved .Following are some pictures :
5.Warmly Welcome you to visit our factory
Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .
Mobile: +86 18653826231
WhatsApp/Wechat:+86-15265381202
