Trencher for mini loader

Name: Trencher for mini loader
Brand: HYSOON
Price: USD $8,000 - 11,000 / Piece

FOB Price

USD $8,000 - $11,000 / Piece

1 Piece(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	HYSOON	Place of Origin:	Shandong, China	Type:	trencher, trencher
Use:	digging ditch	Certification:	CE, GOSET	After-sales Service Provided:	Engineers available to service machinery overseas
Condition:	New

Product Description

Trencher

Product Description

1.Main specification

Imported American Briggs&Stratton gasoline engine 23HP

Imported Italy pump and valve

Articulated steering chassis and four-wheel drive

Bucket capacity : 0.15^m3

Rated load:260Kg

Main size :

Item	HY200
Item	Metric	Inch
Max pin height (B)	1769 mm	69.6 inch
Max height of unloading (C)	1260mm	49.6inch
The highest point of unloading distance(D)	558 mm	21.9 inch
Total length (H)	2020 mm	79.5 inch
The height from ground (F)	160 mm	6.3 inch
Wheelbase (G)	1207 mm	47.5 inch
No bucket length (J)	2030 mm	79.9 inch
Total width (W)	970 mm	38.2 inch
Bucket width (K)	980mm	38.6 inch
Total length (L)(with bucket )	2424 mm	93.1 inch
Angle of departure (α)	40°	40°
Bucket unloading angle(γ)	27°	26°
Collecting bucket (θ)	48°	48°

Main performance parameter

Item	HY200
Item	Metric	Inch
Rated power	17.15KW	23HP
Fuel tank of capacity	22L	4.8 UKgal
Hydraulic tank capacity	21L	4.6 UKgal
Loading weight	260Kg	573.2 Lb
Bucket capacity	0.15 m3	5.32 ft3
Max traction force	5 KN	1124Lbf
Max lift force	4.6 KN	1034 Lbf
Speed	0-8km/h	0-4.97mile/h
Max lift force	260 Kg	573.2 Lb
Minimum turning radius	2320mm	91.3 inch
Operation weight	840kg	1851.9lb

2. Various attchments can be mounted on HY200 like Breaker , Auger , Digger , Trencher , snow blower , snow blade , sweeper , backhole , ripper , fork , 4 in 1 bucket, leveller ,trencher , and so on . Use one HY200 , you will finish different works with high effiency !

Packaging & Shipping

3. packaging :

If less than full container load, we use pywood &iron frame package

It’s very strong toprotect the products .

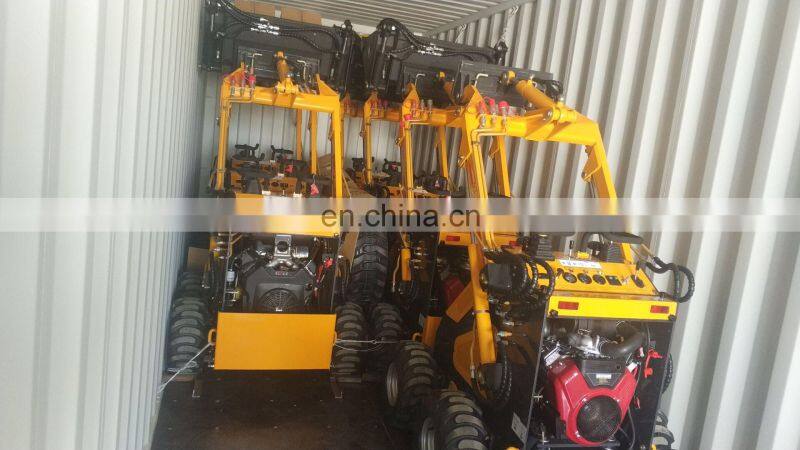

If full container load , we fix the machine in the container

4. Exhibition

We attended lots professional exhibitions : Hannover Agritecnica show in Germany, Shanghai Bauma show , ACE SHOW IN Melbourne Australia , CTT show in Moscow Russia and so on . Our products have won lots customers loved .Following are some pictures :

5.Warmly Welcome you to visit our factory

Further informations , please do not hesitate to contact me . Your satisfaction is our relentless pursuit .

George Guo

Mobile: +86 18653826231

Wechat/WhatsApp:+86-15265381202

Skype: georgehysoon
