4 wheel drive
have quick hitch plate
can be used with forks,4 in 1 bucket,breaker,auger,snow blade,snow blower,digger,backhoe,mixer

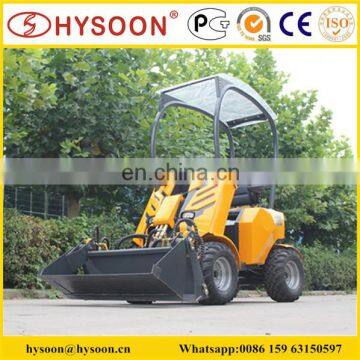

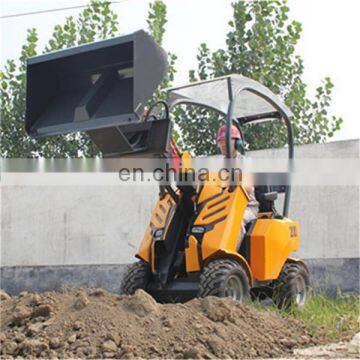

hysoon Cheap Chinese mini cargador frontal is a multifunction machine with changing different attachments.
There is knids of attachments for your choice,such as standard bucket,digger,hydraulic grapple,4 in 1 bucket,hydraulic breaker,auger,angle blade,fork,snow blower,lawn mower,trencher and so on.
You can use Cheap Chinese mini cargador frontal do many works easily and quickly.
Now the Cheap Chinese mini cargador frontal has get through the CE Certification,and had already exported to Germany,Netherlands,Austrilia,Switzerland,Sweden,Russia,Brazil,Spain and so on.
Cheap Chinese mini cargador frontal Spec
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
| Max Pin Height (B) | 1755mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |
Now there is electric power Cheap Chinese mini cargador frontal for choice

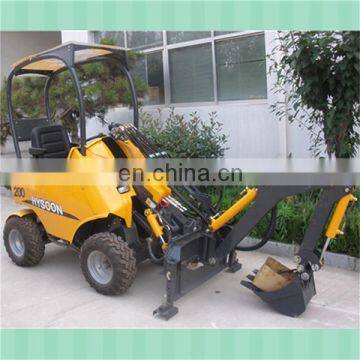

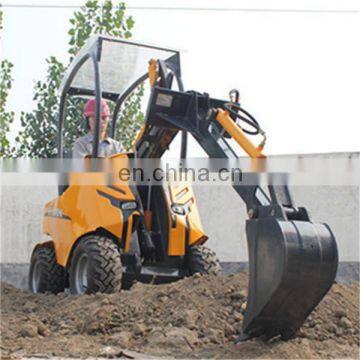

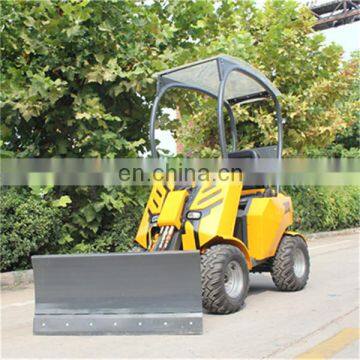

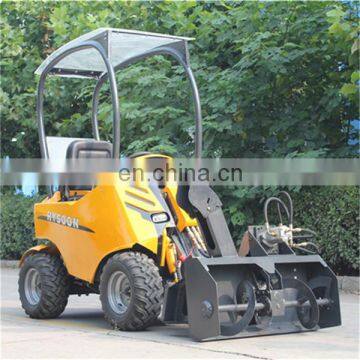

More attachments for Cheap Chinese mini cargador frontal
Cheap Chinese mini cargador frontal related products,
Cheap Chinese mini cargador frontal Packing&shipping details as below,
Taian Hysoon Machinery Co.,Ltd.
is the manufacture of the construction machinery.
We always focus on mini construction equipment,now have a series products.
HY380 mini skid steer loader,
HY280 Mini digger,
HY200 articulated mini loader,
HD10L 4wd mini loader,
HY700 skid steer loader like bobcat,
HY850 skid steer loader which is special height design,only 1482mm height,
HY1000 skid steer loader with 1000kg load capacity,and big flow'
FD350 mini dumper is the smallest size,
HD05 mini dumper,can realize electric power driving,
HD10 wheel dumper is 4 wheel drive.
And in the year 2015,Hysoon company will focus on to realize remote control on our proudcts
Wish there is chance to cooperate with you,for win-win.
Taian Hysoon Machinery Co.,Ltd. workshop overview
Taian Hysoon Machinery Co.,Ltd. Products Range
Tai'an Hysoon Machinery Co.Ltd have get through the ISO 9001 Certification
Hysoon loaders have get the CE Certificateion and GOST Certification,
for the mini skid steer loader HY380 and HY280,
bobocat skid steer loader HY700 and HY850,
mini loader HY200,
mini dumper FD350 and HD05 and HD10.
For further info about any Hysoon products,please do kindly contact
