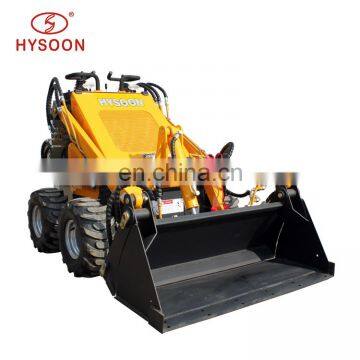

China Taian Hysoon multifunctional crawler and wheel mini skid steer loader earth digger small garden machinery
· Briggs & Stratton Vanguard gasoline engine, 23hp
· Italian Hydrocontrol valve
· Italian joystick HANSA pump optional
· American WHITE motor
· Ergonomically designed, operating safety
· Quick hitch system
· Balance weight platform optional
· Higher lifting height than similar products
· Stand on or walk behind
· Double hand grip
· Tracked and wheeled type optional
HY380 mini skid steer loader |
|||||
Wheel Type |
Track Type |
||||
Max working height(A) |
2143 mm |
2128 mm |
|||
Max pin height (B) |
1884 mm |
1869 mm |
|||
Max dump height(C) |
1488 mm |
1473 mm |
|||
The highest point discharge distance(D) |
348 mm |
399 mm |
|||
Total height (H) |
1233 mm |
1218 mm |
|||
The height from the ground(F) |
118 mm |
105mm |
|||
Wheelbase (G) |
636 mm |
612mm |
|||
No bucket length(J) |
1752 mm |
1752 mm |
|||
Total width (W) |
1160 mm |
1060 mm |
|||
Bucket width (K) |
980 mm |
980 mm |
|||
Total length(L)(with bucket) |
2206 mm |
2206 mm |
|||
Turning radius (R) |
1307 mm |
1317 mm |
|||
Bucket swing angle(β) |
55° |
55° |
|||
Bucket unloading angle(γ) |
30° |
30° |
|||
Opening-closing angle(θ) |
25° |
25° |
|||
Angle of departure(α) |
11° |
10° |
|||
Engine | |||||
Rated Power (KW) |
17.15KW |
||||
Rotating Speed |
3600rpm |
||||
Noise(Dd) |
≤95 |
||||
Hydraulic System | |||||
Pressure |
17Mpa |
||||
Working Time(s) | |||||
Raise |
4.27 |
||||
Dump |
1.34 |
||||
Lower |
3.31 |
||||
Performance parameters | |||||
Operating Load |
200kg |
441Lb |
|||
Bucket Capacity |
0.15m³ |
5.33ft³ |
|||
Max Lifting Force |
375kg |
827Lb |
|||
Travel Speed |
0-5.5km/h |
0-3.4 mile/h |
|||
Operating Weight |
890kg |
1958lb |
|||
Configuration |
Optional configuration |
||||
Engine | |||||
American Briggs&Stratton gasoline engine 23HP. |
Kohler gasoline engine 23.5hp |
||||
Pump: | |||||
Chinese gear pump, double pump. |
Chinese Triple pump; Italian servo pump(joystick) |
||||
Valve: | |||||
Italian double valve. |
Italian triple valve. |
||||
Operating Handle: | |||||
double hydraulic mechanical handles. |
one servo handle & one mechanical handle |
||||
Moving way: | |||||
wheel type with engineering tires. |
wheel type with solid tires; rubber track type |
||||
Attachment: | |||||
Original with a standard bucket. |
various attachments. |
||||
|
1. Easy controlled attachment joint and quick hitch plate, HY380 can change attachments quickly and easily. 4. Joystick handle optional, operating more comfortable. 5. International warranty engine, enjoy local 3 years free engine maintenance. 6. Wheel type and track type of HY380 mini skid steer loader can be chosen. 7. HY380 mini skid steer loader is a easier maintenance machinery,upper cover and back guard plate can be easily opened and dismounted ,you also can easily discharge the wasted egine oil outside the body, replace the spare parts easily ,like filte,engine ooil, oi filter, spark plug and so on. |

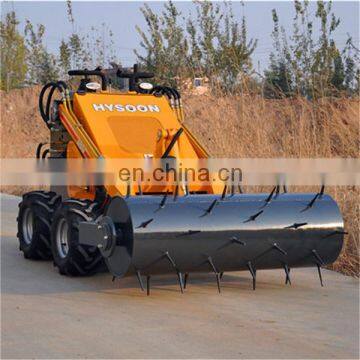

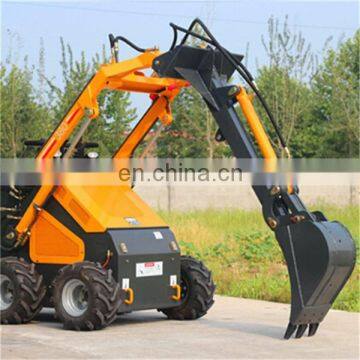

· One loader can for various function. HY380 mini skid steer loader can attach different attachments, such as bucket, digger, auger, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper,lawn mower, snow blower, stump grinder, tree spade, 4 in 1 bucket, leveler, dumping hopper, ripper, grapple , tiller, mixer, stone bucket, trailer, snow blade and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task. |
· HY380 mini skid steer loader can be used in gardening, landscaping, road, farm, construction, meet different jobs. |
· Packaging for LCL: steel frame & plywood packaging |
| · Packaging for FCL |
