Engine:Briggs & Stratton Petrol/gasoline Engine (23hg)
• Tyre:Chevron tire
• Motor: Low speed high torque motors
• Hydraulics Pumps: Gear Pump
• Bucket:Plain
• System pressure:17Mpa
• System flow: 51L/min
• Speed:0-5.5km/h
• Size ( length *width *height):2206*1033*1205mm
• Bucket capacity:0.15cbm/200kg
• Operating weight:940kg
General description
Hy380 Skid steer loader is without doubt one of the most versatile pieces of construction equipment available on the market today. Skidsteers, and Mini skid steers with their compact size, maneuverability, and ability to easily switch among a huge range of different attachments makes them an invaluable tool.
The skid steer loader consists of a rigid frame with lift arms that are used to attach a wide variety of attachments for a variety of different jobs.

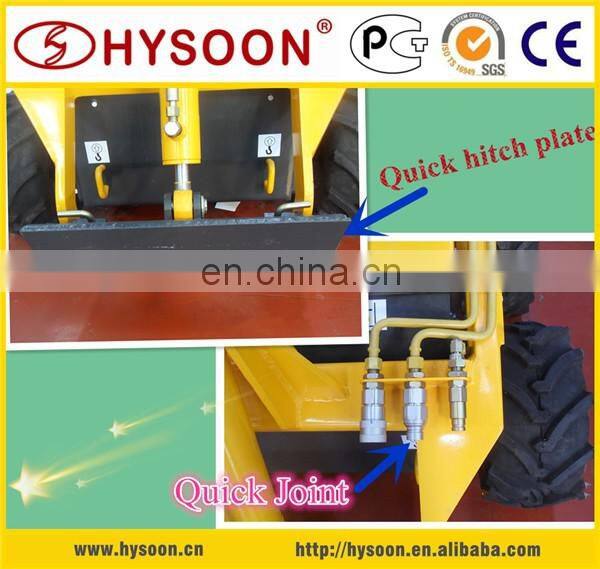

Mini skid steer loader joint and hitch plate

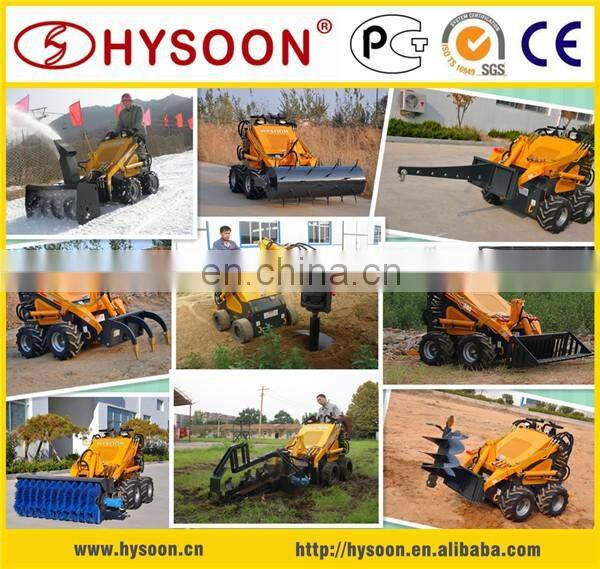

Mini Skid steer loader for landscaping,construction,farm,garden working

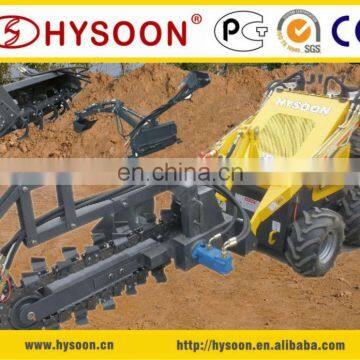

Skid Steer Attachments
There are numerous Skid Steer Attachments such as bucket,the backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade, wheel saw,and so on, thus ensuring there is a tool for every job you can possibly imagine. If you can think of a job for the skid steer loader, chances are there is an attachment specific to that task.
Broad field-of-use.
It can be used in landscaping, manufacturing, general construction, recycling, gardens, road, building, farm and many other industries.
OUR COMPANY work hard to ensure OUR LOADERS are easily serviceable.
Dimensions
Item |
With Chevron Engineering Tyre |
|
Max working height H1 |
2143mm |
84.37inch |
Max dump height H2 |
1488mm |
58.58inch |
Total Height H |
1233mm |
48.54inch |
Max pin height |
1884mm |
74.17inch |
The length of the foot plate |
678 mm |
26.7inch(foot plate level) |
Total length with bucket L ( mm) |
2206mm |
86.9inch |
Highest point dump distance L1(mm) |
348mm |
13.7inch |
Length without bucket L2(mm) |
1752mm |
69inch |
Bucket width B(mm) |
980mm |
38.6inch |
Total width B1(mm) |
1160mm |
45.67nch |
Wheel base |
940mm |
37inch |
Ground clearance(mm) |
118mm |
4.65inch |
Turning radius R(mm) |
1307 mm |
51.5inch |
Bucket dumping angle α(°) |
30 |
|
Rollback of bucket on ground β(°) |
25 |
|
Departure angle(°) |
11(foot plate level) |
|
