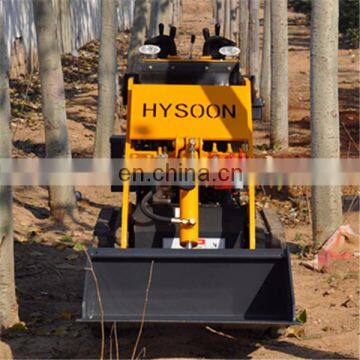

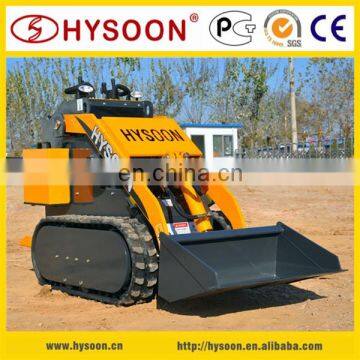

HYSOON 800mm width mini track loader is with Briggs&stratton gasoline engine,23hp.

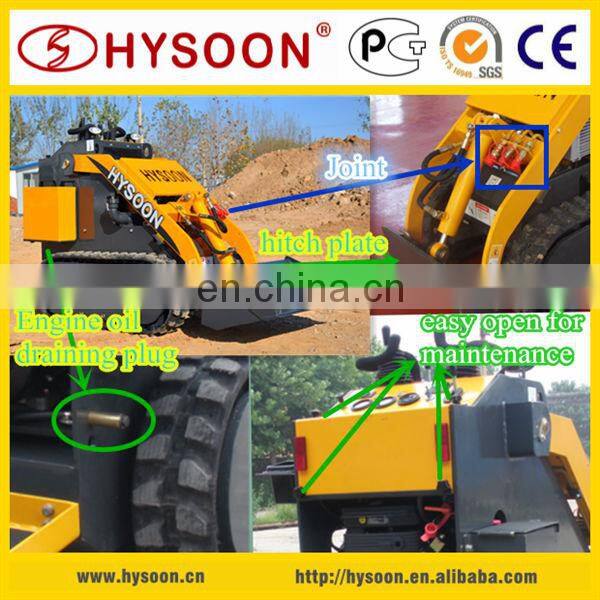

HYSOON compact skid steer loader HY280 is easy maintenance,Lift the working arms,you can see its structure,hydraulic pump,hydrualic motor,fan,easy to change the parts.
And its back protection plate,is also easy to remove,then you can see the Engine,easy to change the filter,engine oil and so on.
HYSOON 800mm width mini track loader,compact skid steer loader H280 is easy to operate.
there is three joystick on the standard machine,two joystick for driving and arm lift up&down and bucket tilt&collect,another joystick for attachment working.
HYSOON 800mm width mini track loader,compact skid steer loader HY280 is only 2210mm*800mm*1309mm,can enter into much narrow space to do works.even enter into your rooms.

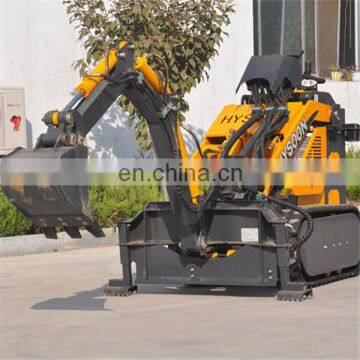

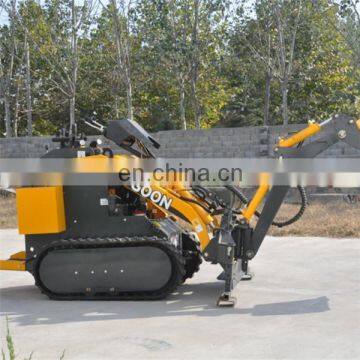

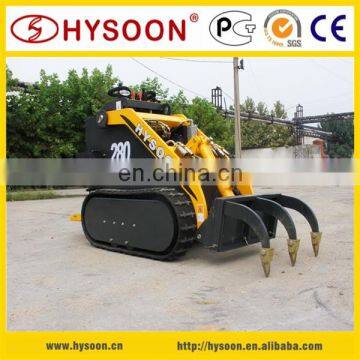

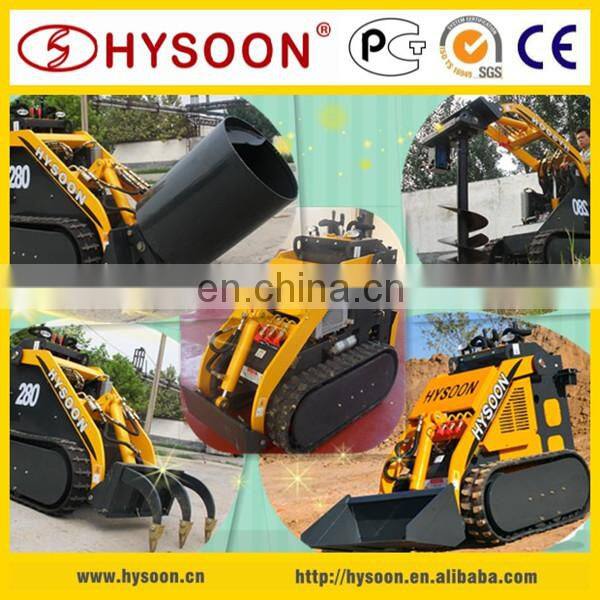

HYSOON compact skid steer loader HY280 is multifunction machines,its hitch plate can quickly and easily changing knids of attachments,such as digger,auger drill,backhoe,ripper,rock bucket,sweeper,high dumper,tiller,lawn mower,hydraulic grapple,fork,trencher,4 in 1 bucket,snow blower,leveller,snow blade,cement mixer,hydraulic breaker,trench filler,lawn ripper and so on.

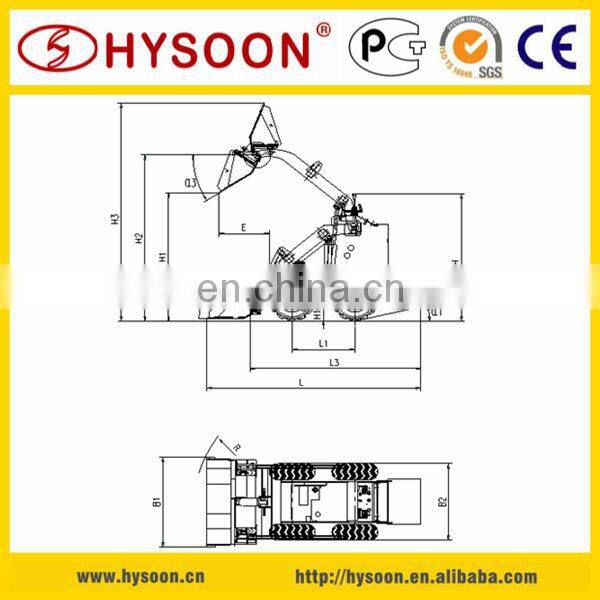

800mm width mini track loader drawing
800mm width mini track loader detail
Item |
Track |
Solid tire |
Normal tire |
Lawn tire |
Chevron tire |
Max working height (H3) |
2065mm |
2032mm |
2072mm |
2072mm |
2060mm |
Max pin height (H2) |
1803mm |
1769mm |
1809mm |
1809mm |
1798mm |
Max discharge height (H1) |
1386mm |
1353mm |
1393mm |
1393mm |
1382mm |
The highest unload distance (E) |
471mm |
508mm |
468mm |
468mm |
480mm |
Max angle of unloading (α3) |
32° |
||||
Retracting angle (α2) |
33° |
||||
Angle of departure (α1) |
18° |
15° |
19° |
19° |
18° |
Total height (H) |
1309mm |
1276mm |
1316mm |
1316mm |
1304mm |
The height from the ground (H1) |
123mm |
90mm |
130mm |
130mm |
119mm |
Wheelbase (L1) |
690mm |
686mm |
686mm |
686mm |
686mm |
No bucket height (L3) |
1778mm |
1778mm |
1778mm |
1778mm |
1778mm |
Total width (B2) |
800mm |
903mm |
903mm |
1053mm |
1030mm |
Bucket width (B1) |
820mm |
820mm |
820mm |
820mm |
820mm |
Total length(L) (With bucket) |
2210mm |
2210 mm |
2210mm |
2210mm |
2210mm |
Turning radius (R) |
1236mm |
1237 mm |
1237mm |
1243mm |
1243mm |
