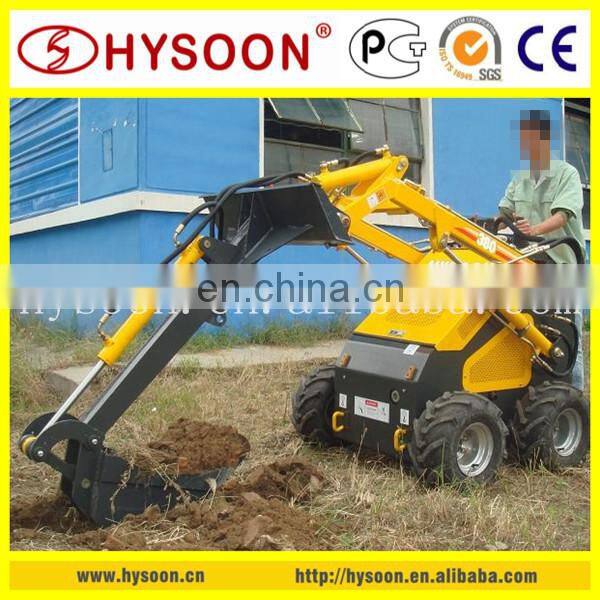

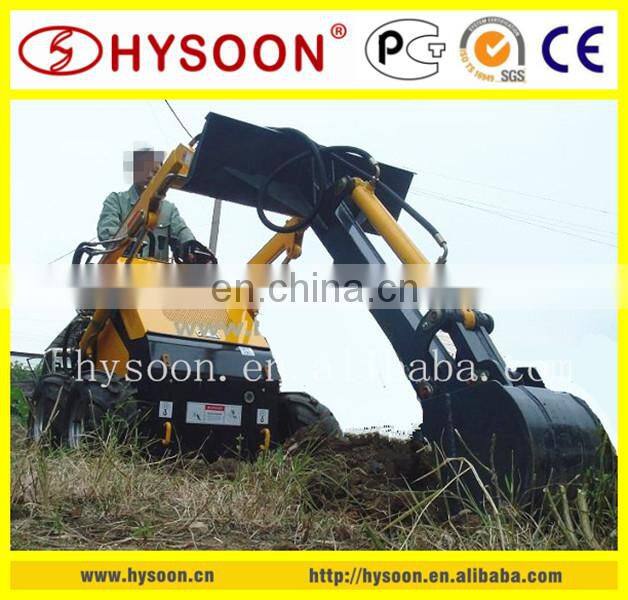

Big Torque 4 Wheel Drive Small Ground Digger
HY380 Ground Digger Main Features:
American Brigges&Stratton gasoline Engine,23HP
Imported Italy Valve.
Italy joystick for optional
Bucket capacity:0.03M³
Dimension(mm): 2206* 1160* 1233
Bucket size(mm): 545* 308* 507
Digging depth: 1667mm
Bucket weight: 123kg
HY380 Ground Digger & Main Parameters:
Items |
HY380 |
Metric | |
Max working height(H3) |
2143mm |
Max pin height(H2) |
1884mm |
Max dumpling height(H1) |
1488mm |
Max dumpling distance(E) |
348mm |
Max dumpling angle(α3) |
30° |
Rollback of bucket on ground(α2) |
25° |
Departure angle(α1) |
11° |
Total height(H) |
1233mm |
Ground clearance(F) |
118mm |
Wheel base(L1) |
636mm |
Overall length without bucket(L3) |
1752mm |
Total width(B2) |
1160mm |
Bucket width(B1) |
980mm |
Total length with bucket(L) |
2206mm |
Turn radius forward turning(R) |
1307mm |
Warranty: 1 years.
Engine Warranty: 3 years,IWS
Answer your questions in first time
Offer you high quality mini ground digger

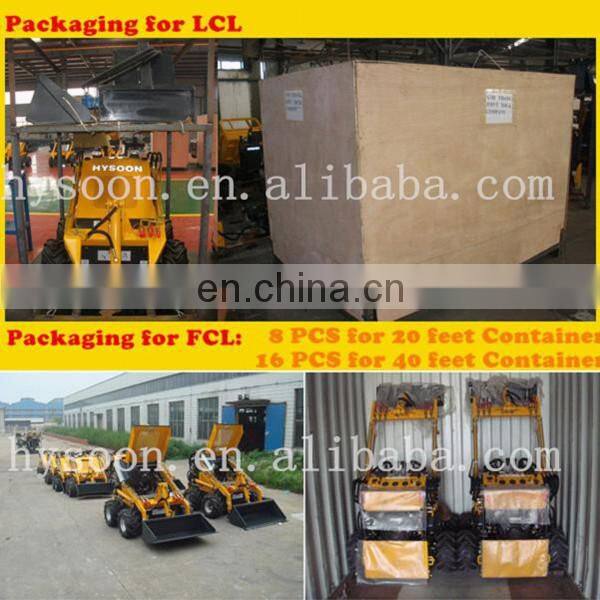

40 feet container can load 16 sets of ground diggers.
FOR LCL: Plywood packaging & Ironhide packaging
