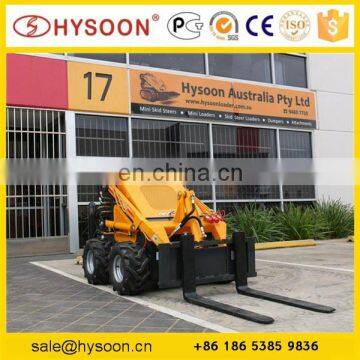

Help CenterToro Dingo Counterparts Diesel Engine Mini Skid Steer Loader With 4 Way Bucket
Related Products
-
Toro Dingo Counterparts Diesel Engine Mini Skid Steer Loader With 4 in 1 BucketUS$ 5,000 - 10,000MOQ: 1 Set -
HYSOON Diesel Mini Skid Steer Loader With 4 in 1 Bucket for FarmUS$ 5,000 - 10,000MOQ: 1 Set
-
Big Torque 4 Wheel Drive Small Ground DiggerUS$ 7,000 - 9,000MOQ: 1 Set
-
HYSOON HY280 Mini Front End LoaderUS$ 5,000 - 15,000MOQ: 1 Set
-
China Taian Hysoon Multifunctional Crawler and Wheel Mini Skid Steer Loader Earth Digger Small Garden MachineryUS$ 7,200 - 7,200MOQ: 1 Set

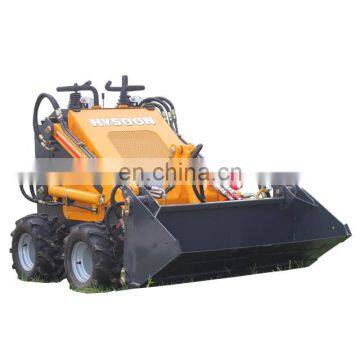

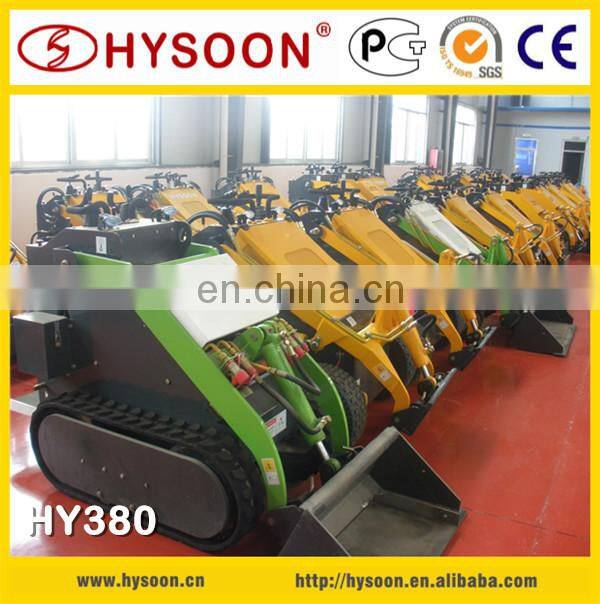

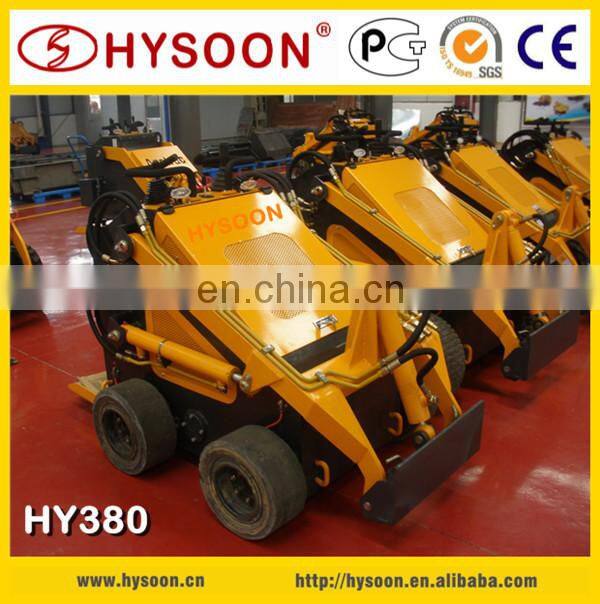

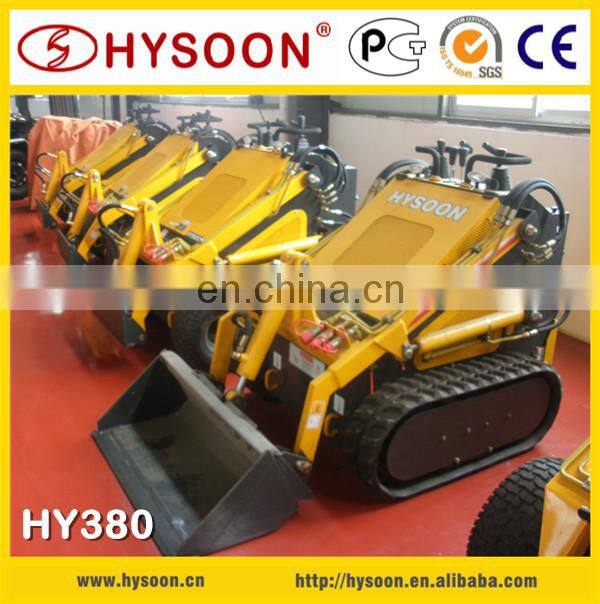

1. HY380 Mini Skid Steer Loader
F It is without doubt one of the most versatile pieces of construction equipment available on the market today with their compact size and maneuverability.
• Transmission: Hydraulic transmission
• Control System: Hydraulic system
• Driven: 4 wheels
• Engine: gasoline 23HP
• Tyre:Chevron tires
• Motor: Low speed high torque motors
• System Flow:51L/min
• Speed:0-5.5km/h
• Operating Weight:890kg
Max Dumping distance E |
348mm |
Max Dumping Angle α3 |
30° |
Rollback of bucket on ground α2 |
25° |
Departure angle α1 |
11° |
Ground clearance F |
118mm |
Turn radius forward turning R |
1307mm |
Engine |
Rated power |
23HP |
||
Rated speed(rpm) |
3600 |
|||
Noise (Db) |
≤95 |
|||
Hydraulic system |
Hydraulic pressure(Mpa) |
17 |
||
Cycle time(s) |
Raise |
Dump |
Lower |
|
4.27 |
1.34 |
3.31 |
||
Technical Parameter |
Operating Load |
200 Kg |
||
Bucket Capacity |
0.15 m3 |
|||
Max Lifting Force |
375 Kg |
|||
Travel Speed |
0-5.5Km/h |
|||
Operating Weight |
890 Kg |
|||
Tires(Chevron tyre) |
18*6.5-8 |
|||
2.Features
F By one special quick attach for attachment, mini skid steer loader are easy to attach skid steer attachments for jobs. thus ensuring there is a tool for every job you can possibly imagine.
FUpper cover&back plate can be opened and dismounted,easily replace and maintain parts, like engine,pump,motor,etc
F Control System:
FMoving system
3.More Photos

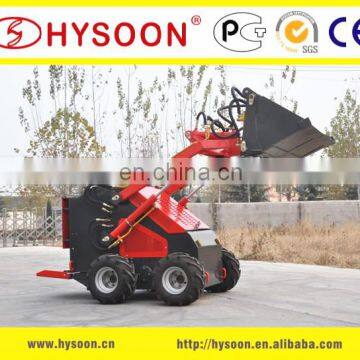

F Diesel Model
4.Package
5.Applications
F Mining FRecyclingFCompanies FGround care
FLandscapingFConstructionFProperty Maintenance
