hysoon garden equipment hy380 snow blower front skid- steer loader skid steer loader
F HY380 Mini Skid Steer Loader is without doubt one of the most versatile pieces of construction equipment available on the market today with their compact size and maneuverability.
• Transmission: Hydraulic transmission
• Control System: Hydraulic system
• Driven: 4 wheels

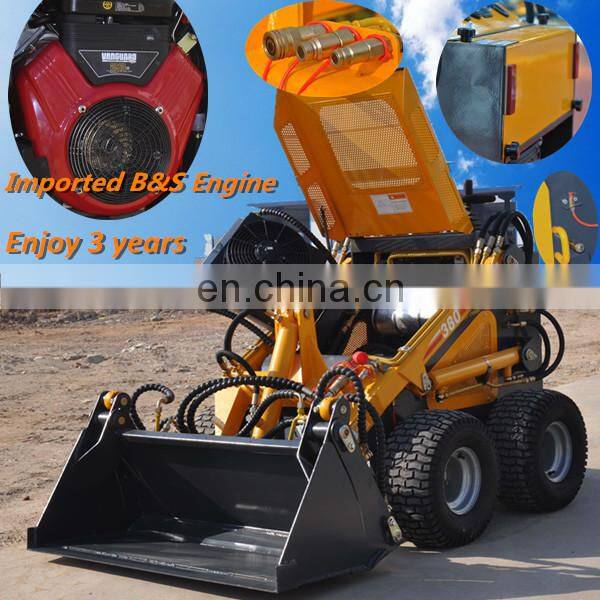

• Engine: Briggs&Stratton gasoline 23HP
• Tyre:Chevron tires
• Motor: Low speed high torque motors
• Bucket:Standard Bucket
• System Flow:51L/min
• Speed:0-5.5km/h
• Operating Weight:890kg
Max Dumping distance E |
348mm |
Max Dumping Angle α3 |
30° |
Rollback of bucket on ground α2 |
25° |
Departure angle α1 |
11° |
Ground clearance F |
118mm |
Turn radius forward turning R |
1307mm |
Engine |
Rated power |
23HP |
||
Rated speed(rpm) |
3600 |
|||
Noise (Db) |
≤95 |
|||
Hydraulic system |
Hydraulic pressure(Mpa) |
17 |
||
Cycle time(s) |
Raise |
Dump |
Lower |
|
4.27 |
1.34 |
3.31 |
||
Technical Parameter |
Operating Load |
200 Kg |
||
Bucket Capacity |
0.15 m3 |
|||
Max Lifting Force |
375 Kg |
|||
Travel Speed |
0-5.5Km/h |
|||
Operating Weight |
890 Kg |
|||
Tires(Chevron tyre) |
18*6.5-8 |
|||
2.Features

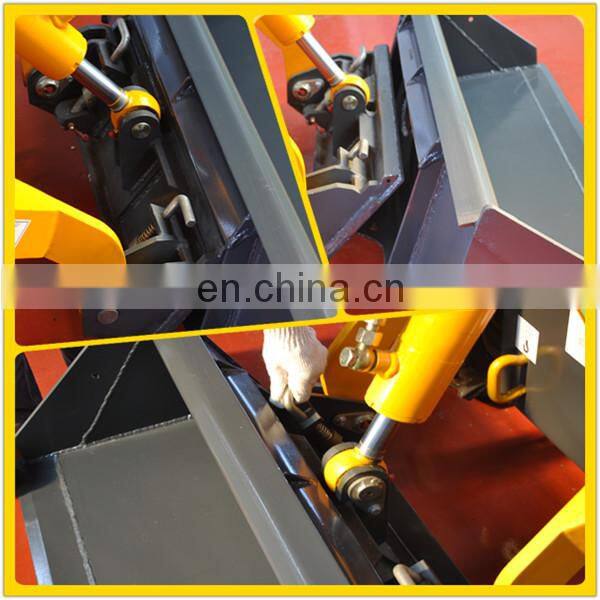

F By one special quick attach for attachment, it's easy to attach skid steer attachments for jobs. thus ensuring there is a tool for every job you can possibly imagine.

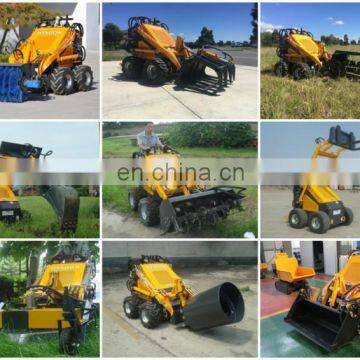

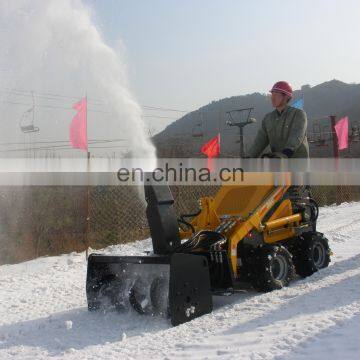

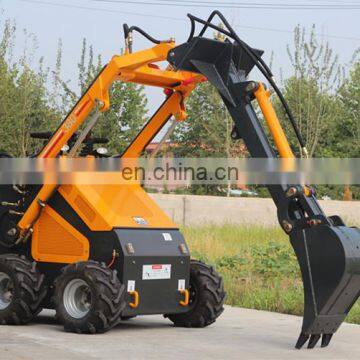

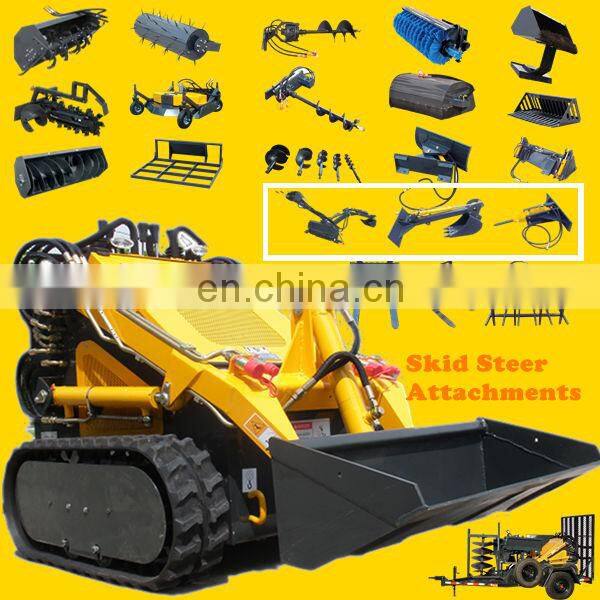

FOptional attachments: standard bucket,digger,hydraulic grapple,4 in 1 bucket,hydraulic breaker,auger,angle blade,fork,snow blower,lawn mower,trencher and so on.
FUpper cover&back plate can be opened and dismounted,easily replace and maintain parts, like engine,pump,motor,etc

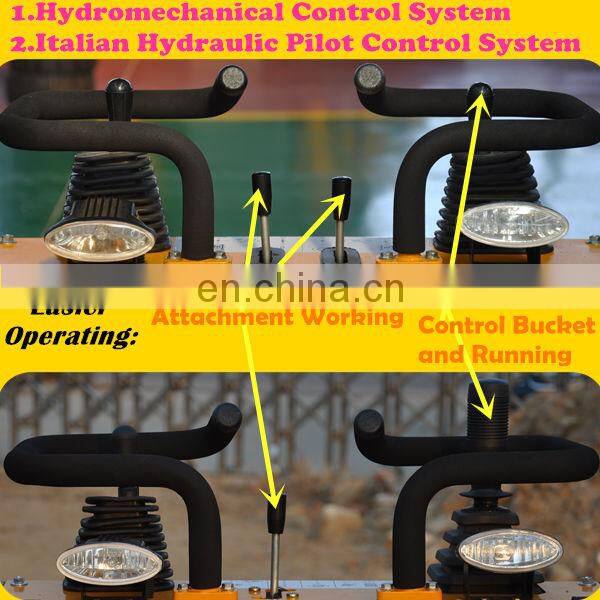

F Control System: Standard and Italian hydraulic pump and joystick
FWheeled and tracked FPedal plate
3.Packaging
4.Applications
F Mining FRecyclingFCompanies FGround care
FLandscapingFConstructionFProperty Maintenance
We also produce the following products , please click the following pictures for more products information :
