HYSOON HY380 mini digger like Dingo Toro
1. HYSOON HY380 mini digger like Dingo Toro specification : CLICK HERE CONTACT US
1.HY380 mini digger engine : American Briggs&Stratton engine 23HP/ Kohler engine
2. HY380 mini digger pump : double gear pump , Italy Hansa pump for optional
3.HY380 mini digger valves: Advanced Italian Hydrocontrol valves
4. HY380 mini digger motor: slow speed big torque INI drive motor
5. Engine filter : Donaldson cyclonic air filter
6. All parts electrophoresis avoid rusting
7.Different attachments for optional : digger , auger , fork , trencher , 4 in 1 bucket , stump grinder , lawn mower , ripper , leveller , totary tiller , snow blower , angle blade and so on
HYSOON HY380 mini digger like Dingo Toro |
|
|
Item |
Metric |
Inch |
Max working height(A) |
2115 mm |
83.3 inch |
Max pin height (B) |
1856 mm |
73.1 inch |
Max dump height(C) |
1460 mm |
57.5 inch |
The highest point discharge distance(D) |
388 mm |
15.3 inch |
Bucket swing angle(β) |
55° |
55° |
Bucket unloading angle(γ) |
30° |
30° |
Opening-closing angle(θ) |
25° |
25° |
Angle of departure(α) |
8° |
8° |
Total height (H) |
1205 mm |
47.4 inch |
The height from the ground(F) |
90 mm |
3.5 inch |
Wheelbase (G) |
636 mm |
25.0 inch |
No bucket length(J) |
1752 mm |
69.0 inch |
Total width (W) |
1033 mm |
40.7 inch |
Bucket width (K) |
980 mm |
38.6 inch |
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
Turning radius (R) |
1307 mm |
51.5 inch |

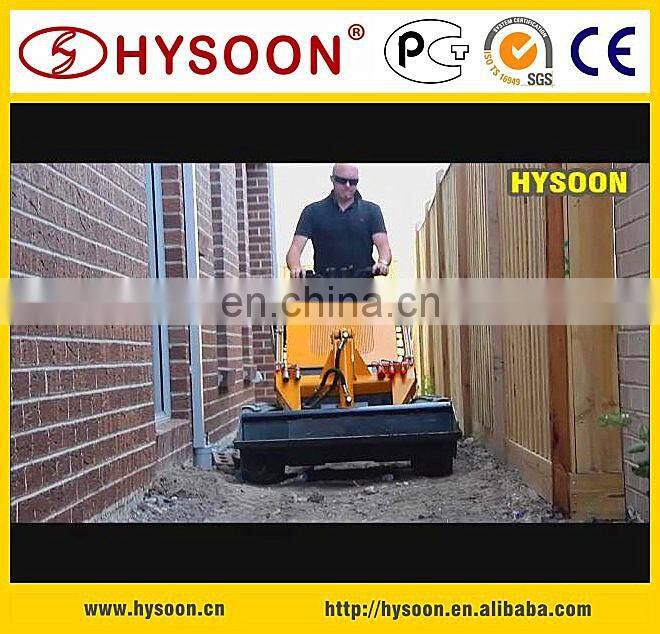

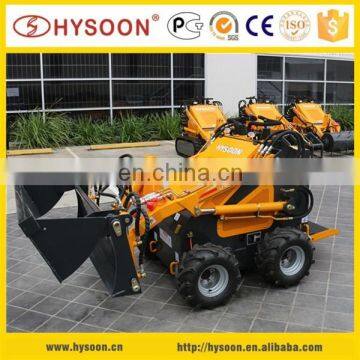

2. HYSOON HY380 mini digger like Dingo Toro pictures:
HY380 mini digger can do different works by quick change different accessories . Other brand
like Dingo ,Toro accessories can also suitable for HY380 mini digger .
If LCL , use plywood & iron frame package ,
If FCL , direct load into the container .20'ft :8 pieces , 40'ft :16 pieces
Taian Hysoon Machinery Co., LTD is the first-class company engaged in the research, development and manufacture of mini digger , skid steer
loaders with attachments . Our products approved CE ,EPA GOST , Certificate of Utility model of patent , certifiate of design patent ,ISO9001 certificate , Unite states Trademark principal register and so on .
Warmly Welcome you to visit our factory! George Guo
