200KG LOADING CAPACITY 23HP MINI BACKHOE LOADER
1. 200KG LOADING CAPACITY 23HP MINI BACKHOE LOADER specification :
1. HY380 mini backhoe loader engine :USA Briggs&Stratton engine 23HP/ Kohler engine
2. HY380 pump : double gear pump , Italy Hansa pump for optional
3. HY380 valves: Advanced Italian Hydrocontrol valves
4. HY380 motor: slow speed big torque INI drive motor
5.HY380 Engine filter : Donaldson cyclonic air filter
6. All parts electrophoresis avoid rusting
7.Different attachments for optional : digger , auger , fork , trencher , 4 in 1 bucket , stump grinder , lawn mower , ripper , leveller , totary tiller , snow blower , angle blade and so on
| 200KG LOADING CAPACITY 23HP MINI BACKHOE LOADER |
|
|
Item |
Metric |
Inch |
Max working height(A) |
2115 mm |
83.3 inch |
Max pin height (B) |
1856 mm |
73.1 inch |
Max dump height(C) |
1460 mm |
57.5 inch |
The highest point discharge distance(D) |
388 mm |
15.3 inch |
Bucket swing angle(β) |
55° |
55° |
Bucket unloading angle(γ) |
30° |
30° |
Opening-closing angle(θ) |
25° |
25° |
Angle of departure(α) |
8° |
8° |
Total height (H) |
1205 mm |
47.4 inch |
The height from the ground(F) |
90 mm |
3.5 inch |
Wheelbase (G) |
636 mm |
25.0 inch |
No bucket length(J) |
1752 mm |
69.0 inch |
Total width (W) |
1033 mm |
40.7 inch |
Bucket width (K) |
980 mm |
38.6 inch |
Total length(L)(with bucket) |
2206 mm |
86.9 inch |
Turning radius (R) |
1307 mm |
51.5 inch |

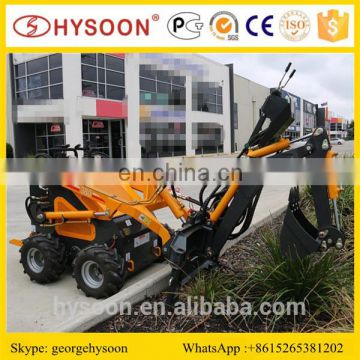

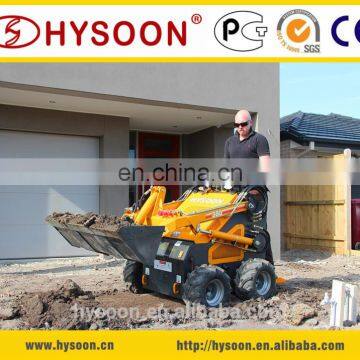

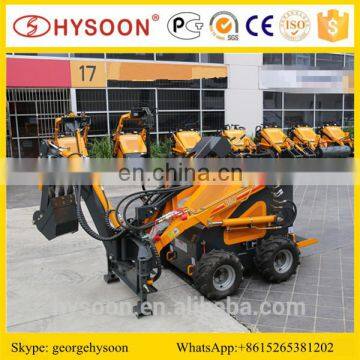

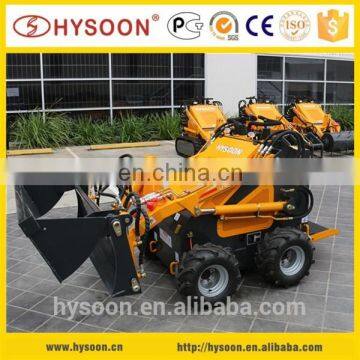

2. 200KG LOADING CAPACITY 23HP MINI BACKHOE LOADER pictures:
HY380 mini backhoe loader can do different works by quick change different accessories . Other brand like Dingo ,Toro accessories can also suitable for HY380 .

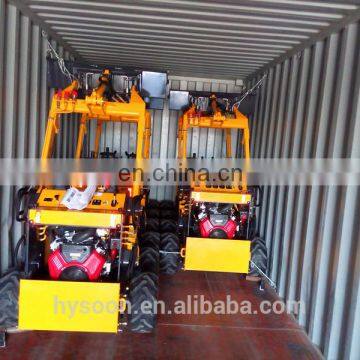

.Package for HY380 mini backhoe loader
If LCL : Ironframe pallet and plywood
If FCL : Direct load the machine into container
Taian Hysoon Machinery Co., LTD is the first-class company engaged in the research, development and manufacture of mini skid steer loaders with accessories.
Our company attended lots professional exhibitions:
* 7days /24h hours technical consulting support.
* Engineers available to service machines over seas
* visiting our factory ,testing sample machines
*Training to how to operate the mahine
* Accept OCM , Customization.
* 1 year warranty. (Engine 3 years International warranty service.)
Warmly Welcome you to visit our factory!
George Guo
Taian HYSOON Machinery Co.,Ltd
M/WhatsAPP+86-15265381202
Skype: georgehysoon
Web:
